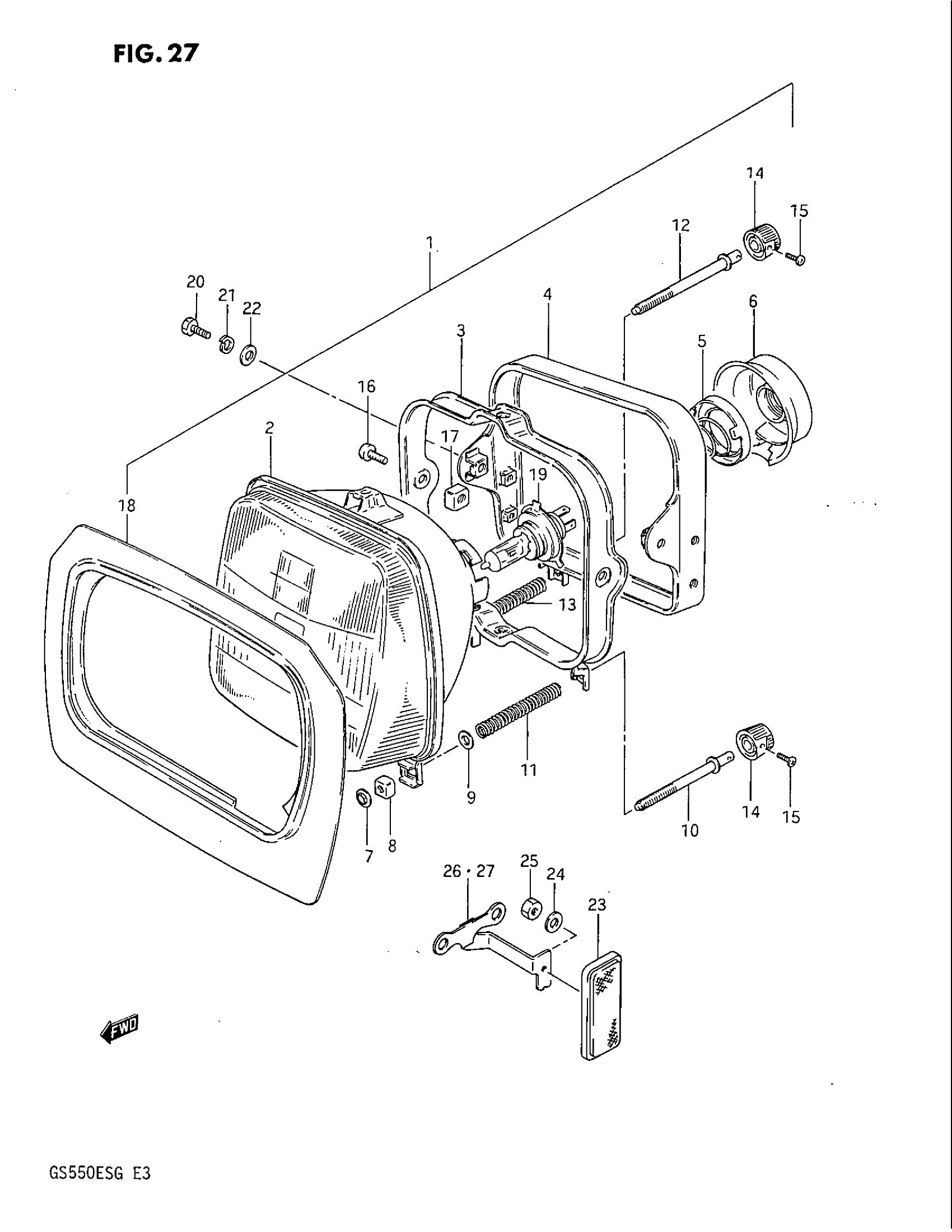

Suzuki GS550EF (1986) HEADLAMP (GS550ES3/ESE/ESF/ESG) Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 18

35100-49530-999

Unavailable

2

UNIT

35121-49530

Unavailable

3

MOUNTING RING

35130-49500

Unavailable

4

HOUSING

35141-49500

Unavailable

5

HOLDER, BULB

35136-49200

Unavailable

6

COVER, SOCKET This part replaces 35173-49200.

35173-38A00

$16.87

7

NUT This part replaces 35152-49330.

09148-04010

$2.20

8

NUT

35152-49500

Unavailable

9

NO DESCRIPTION AVAILABLE This part replaces 35157-49320.

09160-06073

Unavailable

10

ADJUST SCREW, RH This part replaces 35151-49500.

35151-49320

Unavailable

11

SPRING, LH

35154-49500

Unavailable

12

ADJUST SCREW, RH

35151-49320

Unavailable

13

SPRING

35154-49320

Unavailable

14

NO DESCRIPTION AVAILABLE This part replaces 35161-49320.

35136-49331

Unavailable

15

SCREW This part replaces 02112-03108.

02112-03107

$1.49

16

SCREW This part replaces 02112-05128.

02112-05127

$1.97

17

NUT

35135-45900

$3.25

18

SHADE

35129-49500

Unavailable

19

BULB (12V,60/55W,H4)

09471-12060

$25.15

20

BOLT This part replaces 01107-06126.

01500-0612A

$1.78

21

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

22

.WASHER This part replaces 08322-11066.

08322-0106B

$2.26

23

REFLEX-REFLECTOR ASSY | GS550ES3/ESE This part replaces 35950-43430.

35950-43431

$17.83

23

REFLEX REFLECTOR, FRONT SIDE | GS550ESF/ESG

35950-43431

$17.83

24

WASHER, FRONT This part replaces 08322-21055.

08322-0105A

$1.84

25

NUT This part replaces 08310-12055.

08310-0005A

$1.84

26

BRACKET, RH | GS550ESF/ESG

35990-43400

Unavailable

27

BRACKET, LH | GS550ESF/ESG

35990-43410

Unavailable
