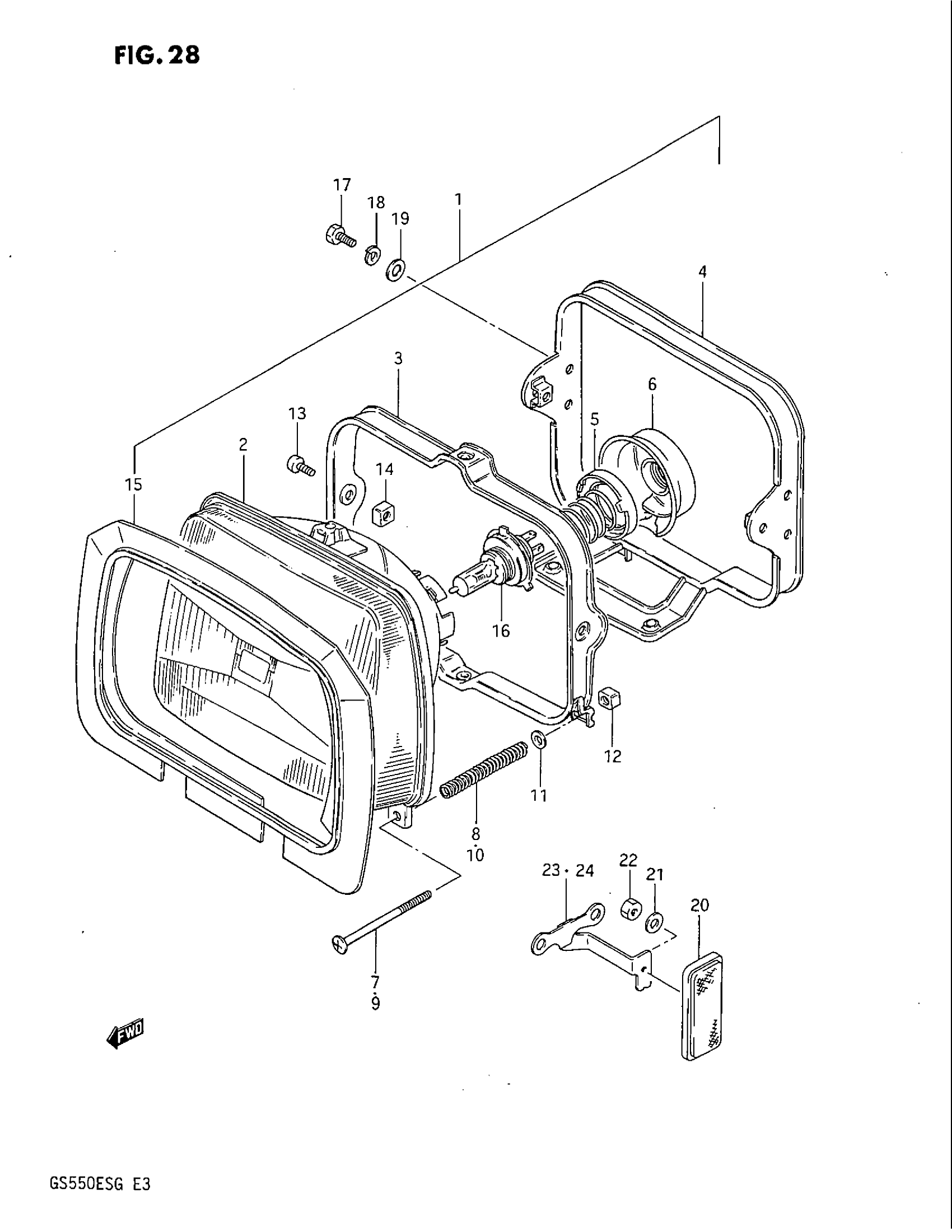

Suzuki GS550EF (1986) HEADLAMP (GS550EF/EG) Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 15

35100-43431-999

Unavailable

2

UNIT

35121-43430

Unavailable

3

MOUNTING RING

35130-43400

Unavailable

4

HOUSING

35141-43401

Unavailable

5

HOLDER, BULB

35136-49200

Unavailable

6

COVER, SOCKET This part replaces 35173-49200.

35173-38A00

$16.87

7

SCREW This part replaces 35151-31300.

09125-04020

$2.53

8

SPRING, LH

35154-31300

$3.70

9

SCREW This part replaces 35151-49200.

35151-45900

$3.65

10

SPRING, RH

35154-43400

Unavailable

11

WASHER

35157-27630

$3.25

12

NUT

35135-45600

$3.65

13

SCREW This part replaces 02112-05128.

02112-05127

$1.97

14

NUT

35135-45900

$3.25

15

SHADE

35129-43400

Unavailable

16

BULB (12V,60/55W,H4)

09471-12060

$25.15

17

BOLT This part replaces 01107-06126.

01500-0612A

$1.78

18

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

19

.WASHER This part replaces 08322-21066.

08322-0106B

$2.26

20

REFLEX REFLECTOR, FRONT SIDE

35950-43431

$17.83

21

WASHER, FRONT This part replaces 08322-21055.

08322-0105A

$1.84

22

NUT This part replaces 08310-12055.

08310-0005A

$1.84

23

BRACKET, RH

35990-43400

Unavailable

24

BRACKET, LH

35990-43410

Unavailable
