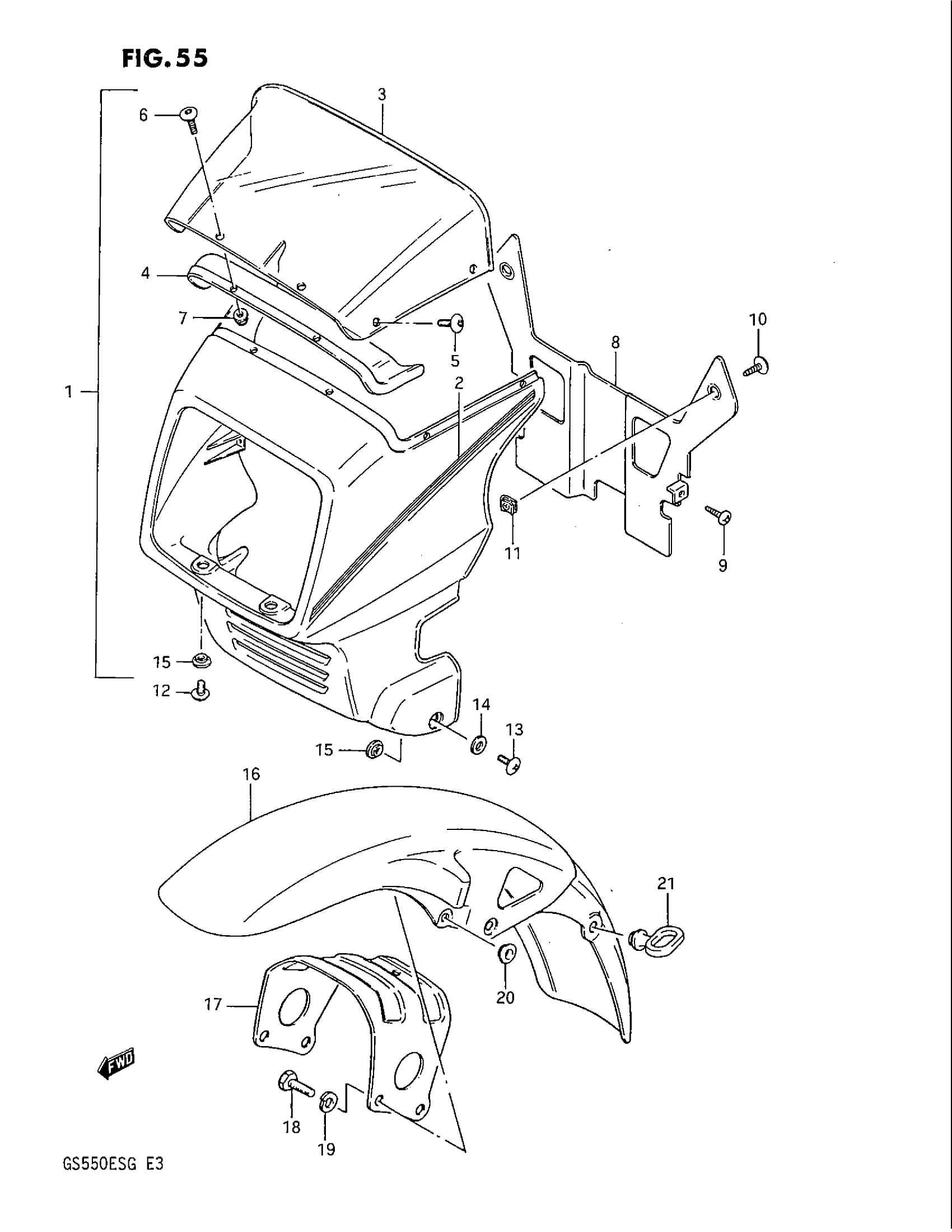

Suzuki GS550EF (1986) HEADLAMP COVER - FRONT FENDER (GS550EF/EG) Diagram

#

Description
Price

1

COVER ASSY, HEADLAMP | MODEL F,WHITE/BLUE

51800-43450-7JH

Unavailable

1

COVER ASSY, HEADLAMP | MODEL F,WHITE/RED

51800-43450-7JJ

Unavailable

1

COVER ASSY, HEADLAMP | MODEL G,WHITE/RED

51800-43470-7PE

Unavailable

1

COVER ASSY, HEADLAMP | MODEL G,WHITE/BLUE

51800-43470-7JH

Unavailable

1

COVER ASSY, HEADLAMP | MODEL G,BLACK/RED; Includes Item(s) 2 - 7

51800-43470-7JK

Unavailable

2

TAPE SET | MODEL F,FOR 7JH

68250-43440-7JF

Unavailable

2

TAPE SET | MODEL F,FOR 7JJ

68250-43440-7JG

Unavailable

3

WINDOW, COVER

51845-43400

Unavailable

4

COVER, UPPER

51843-43400

Unavailable

5

SCREW, WINDOW SIDE

09139-05021

$1.72

6

SCREW, SCREEN This part replaces 09139-05022.

09139-05042

$2.90

7

NUT This part replaces 08319-31055.

08319-3105B

$3.55

8

PLATE, HEADLAMP COVER

51871-43400

Unavailable

9

SCREW This part replaces 03212-05125.

03212-0512B

$3.03

10

SCREW This part replaces 02142-04105.

02142-0410A

$1.49

11

NUT

09148-04015

$2.36

12

SCREW This part replaces 02142-06125.

02142-0612A

$1.49

13

SCREW This part replaces 02142-06125.

02142-0612A

$1.49

14

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.49

15

WASHER This part replaces 09169-06034.

09169-06071

$2.50

16

NO DESCRIPTION AVAILABLE This part replaces 53111-43400-22R.

53111-43400-13L

Unavailable

16

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 53111-43400-019.

53111-43400-13L

Unavailable

17

BRACE, FRONT FENDER

53114-43400

Unavailable

18

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

19

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

20

WASHER

09169-08034

$2.36

21

GUIDE, METER CABLE This part replaces 58621-21203.

58621-21204

$6.68
