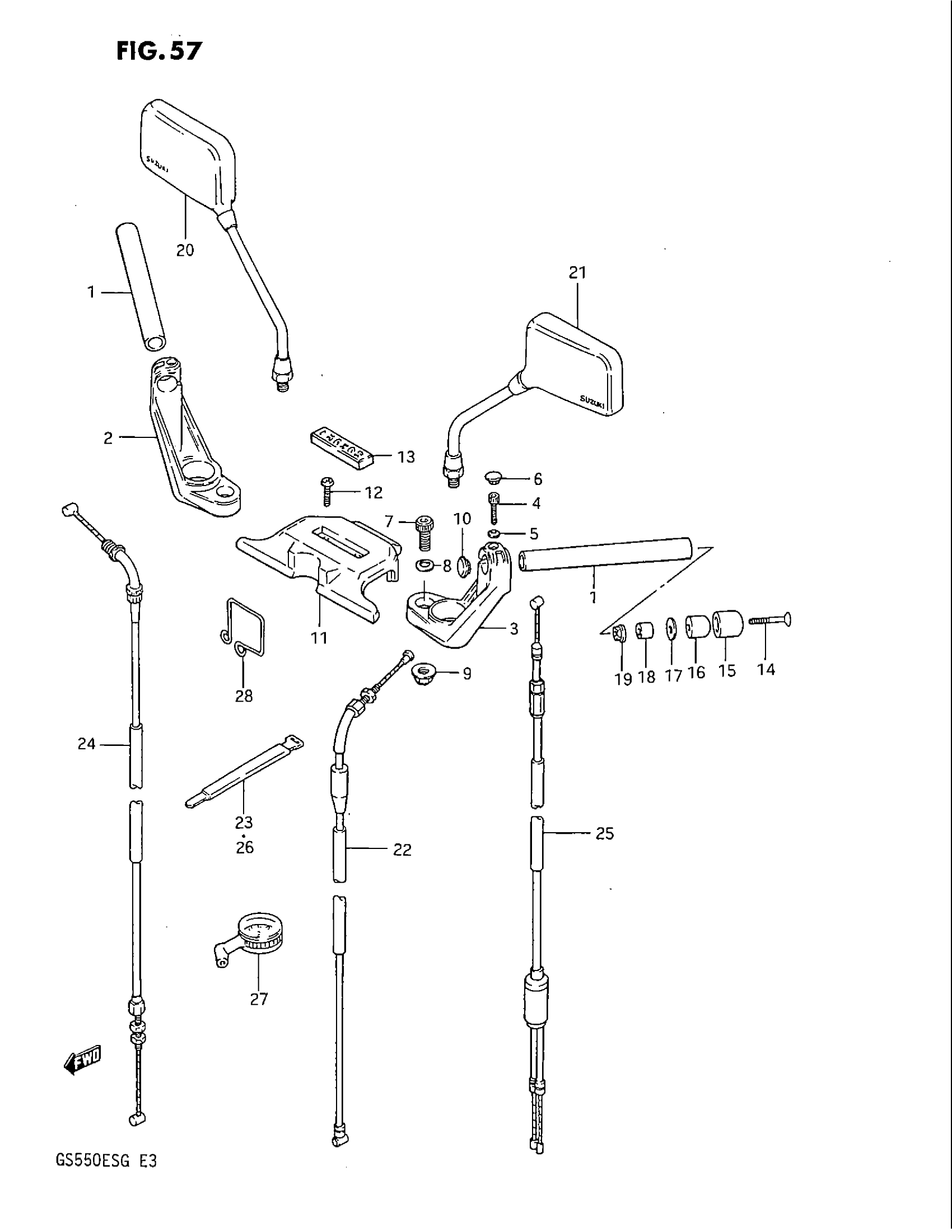

Suzuki GS550EF (1986) HANDLEBAR (GS550ES3/ESE/ESF/ESG) Diagram

#

Description
Price

1

HANDLEBAR

56111-31330

Unavailable

2

HOLDER, RH (FLAT)

56211-43422

Unavailable

3

HOLDER, LH (FLAT)

56221-43422

Unavailable

4

BOLT This part replaces 07110-08355.

07130-0835B

$4.60

5

WASHER

09164-08015

$3.21

6

CAP, BOLT HANDLEBAR

09250-06004

$1.49

7

BOLT, HANDLE HOLDER

09106-10023

$5.78

8

WASHER This part replaces 09164-10005.

09164-10010

$4.83

9

NUT This part replaces 09159-10036.

09159-10027

$3.10

10

CAP This part replaces 57215-43401.

57215-33400

$5.50

11

PAD, HANDLE

56170-43400

Unavailable

12

SCREW This part replaces 02112-05358.

02112-05357

$1.49

13

EMBLEM

68281-43400

Unavailable

14

SCREW This part replaces 02132-06555.

02122-0655B

$2.83

15

CAP, BALANCER

56274-04700

Unavailable

16

BALANCER

56271-49410

$30.95

17

SPACER This part replaces 56275-34400.

56275-34401

$4.02

18

EXPANDER

56272-04700

$5.40

19

NUT

09159-06024

$2.11

20

MIRROR ASSY,REA This part replaces 56500-43400.

56500-01D02

$123.17

21

MIRROR ASSY,REA This part replaces 56600-43400.

56600-01D02

$125.48

22

CABLE, CLUTCH (FLAT)

58200-43400

Unavailable

23

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

24

CABLE, THROTTLE (FLAT) | GS550ES3/ESE This part replaces 58300-43401.

58300-43402

Unavailable

24

CABLE, THROTTLE (FLAT) | MODEL F/G

58300-43402

Unavailable

25

NO DESCRIPTION AVAILABLE This part replaces 58410-43401.

58410-43X00

Unavailable

26

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

27

GAUGE, FRONT FORK AIR

96200-41330

Unavailable

28

GUIDE, CABLE

58621-31310

Unavailable
