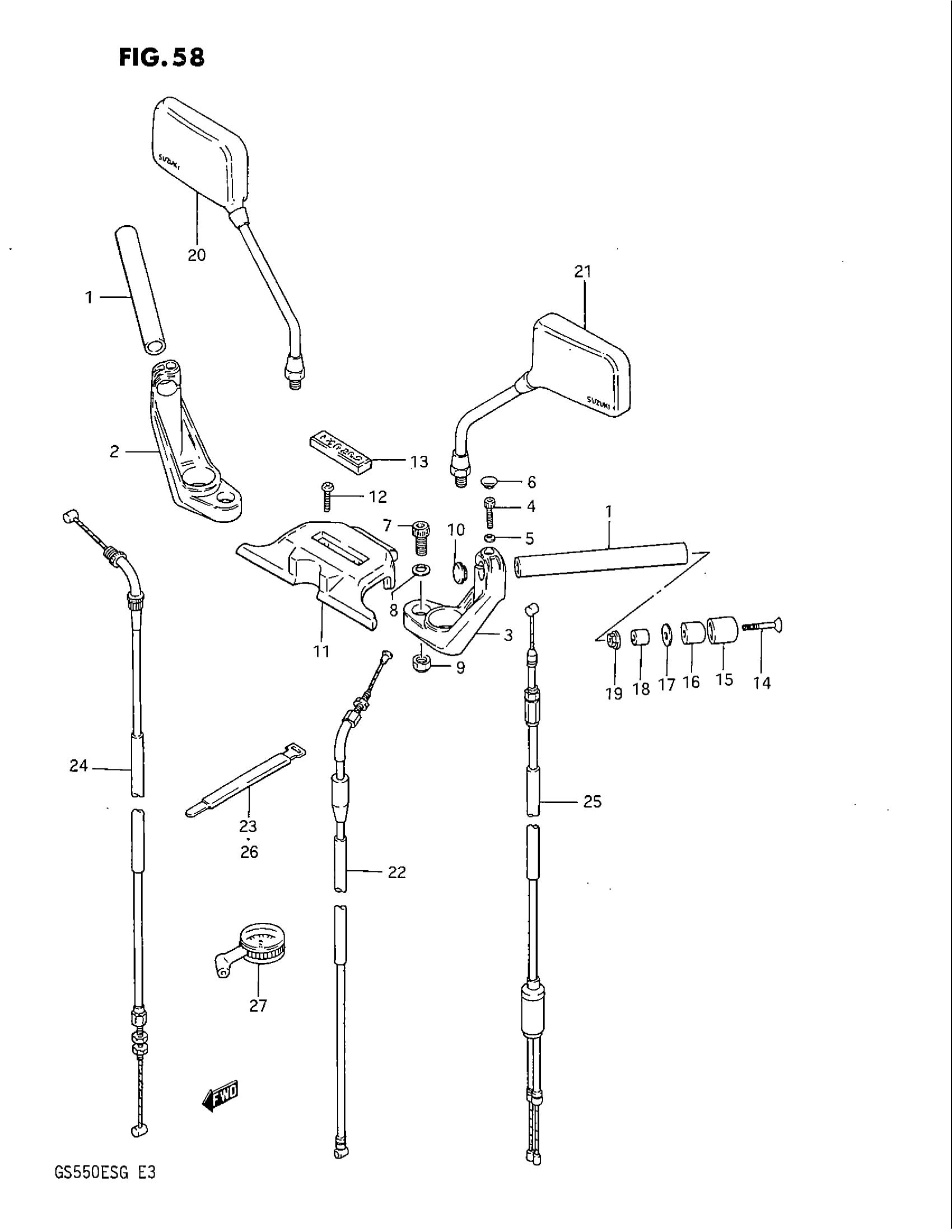

Suzuki GS550EF (1986) HANDLE BAR (GS550EF/EG) Diagram

#

Description
Price

1

HANDLEBAR This part replaces 56110-43410.

56111-31330

Unavailable

2

HOLDER, RH (NEUTRAL)

56211-31311

Unavailable

3

HOLDER, LH (NEUTRAL)

56221-31311

Unavailable

4

BOLT This part replaces 07110-08355.

07130-0835B

$4.60

5

WASHER

09164-08015

$3.21

6

CAP, BOLT HANDLEBAR

09250-06004

$1.49

7

BOLT, HANDLE HOLDER

09106-10023

$5.78

8

WASHER This part replaces 09164-10005.

09164-10010

$4.83

9

NUT This part replaces 09159-10036.

09159-10027

$3.10

10

CAP This part replaces 57215-43401.

57215-33400

$5.50

11

PAD, HANDLE

56170-43400

Unavailable

12

SCREW This part replaces 02112-05358.

02112-05357

$1.49

13

EMBLEM

68281-43400

Unavailable

14

SCREW This part replaces 02132-06555.

02122-0655B

$2.83

15

CAP, BALANCER

56274-04700

Unavailable

16

BALANCER

56271-49410

$30.95

17

SPACER This part replaces 56275-34400.

56275-34401

$4.02

18

EXPANDER

56272-44500

$4.42

19

NUT

09159-06024

$2.11

20

MIRROR ASSY,REA This part replaces 56500-43400.

56500-01D02

$123.17

21

MIRROR ASSY,REA This part replaces 56600-43400.

56600-01D02

$125.48

22

CABLE, CLUTCH (NEUTRAL)

58200-43420

Unavailable

23

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

24

CABLE, THROTTLE (NEUTRAL) | MODEL F This part replaces 58300-43421.

58300-43422

Unavailable

24

CABLE, THROTTLE (NEUTRAL) | MODEL G

58300-43422

Unavailable

25

CABLE,STARTER This part replaces 58410-43421.

58410-43X02

Unavailable

26

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

27

GAUGE, FRONT FORK AIR

96200-41330

Unavailable
