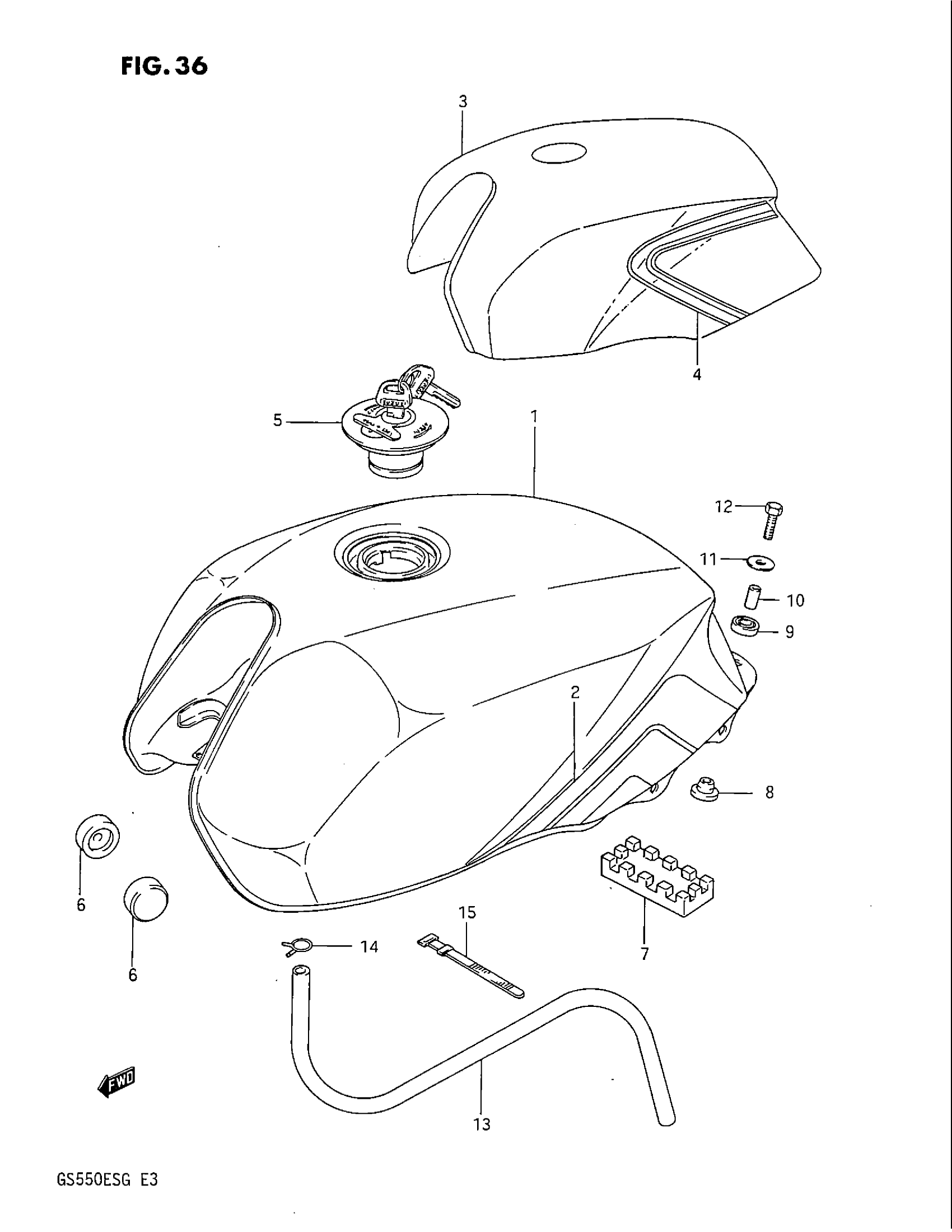

Suzuki GS550EF (1986) FUEL TANK (GS550ESF/ESG) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL FOTHER THAN CALIFORNIA This part replaces 49100-43450-7JH.

44110-43431-13L

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL FCALIFORNIA ONLY; Includes Item(s) 2 This part replaces 49100-43440-7JH.

44110-43440-13L

Unavailable

2

TAPE SET, FUEL TANK | MODEL F

68110-43450-7JM

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL GOTHER THAN CALIFORNIA This part replaces 49200-43420-7JH.

44110-43431-13L

Unavailable

3

(CA) TANK ASSY, FUEL | MODEL GCALIFORNIA ONLY

49200-43400-7JH

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL GOTHER THAN CALIFORNIA This part replaces 49200-43420-7JK.

44110-43431-13L

Unavailable

3

(CA) TANK ASSY, FUEL | MODEL GCALIFORNIA ONLY; Includes Item(s) 4 - 4

49200-43400-7JK

Unavailable

4

TAPE SET, FUEL TANK | MODEL G,FOR 7JH

68110-43480-7JF

Unavailable

4

TAPE SET, FUEL TANK | MODEL G,FOR 7JK

68110-43480-8BE

Unavailable

5

CAP, FUEL TANK | OTHER THAN CALIFORNIA

44200-43410-KEY

Unavailable

5

CAP, FUEL | MODEL FCALIFORNIA ONLY This part replaces 44200-06A20-KEY.

44200-14830

Unavailable

5

CAP, FUEL | MODEL GCALIFORNIA ONLY This part replaces 44200-06A21-KEY.

44200-14830

Unavailable

6

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

7

CUSHION, CENTER

44541-43400

Unavailable

8

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

9

CUSHION, REAR

09320-14013

$2.11

10

SPACER,6.5X9X20 This part replaces 09180-06107.

09180-06308

Unavailable

11

WASHER, 6.5X24X1.6 This part replaces 09160-06072.

09160-06501

$1.86

12

BOLT This part replaces 01107-06306.

01500-0630A

$2.19

13

HOSE This part replaces 09343-05165.

09352-50005-00B

$13.93

14

CLIP

09401-08402

$1.49

15

CLAMP

09407-18401

$2.07
