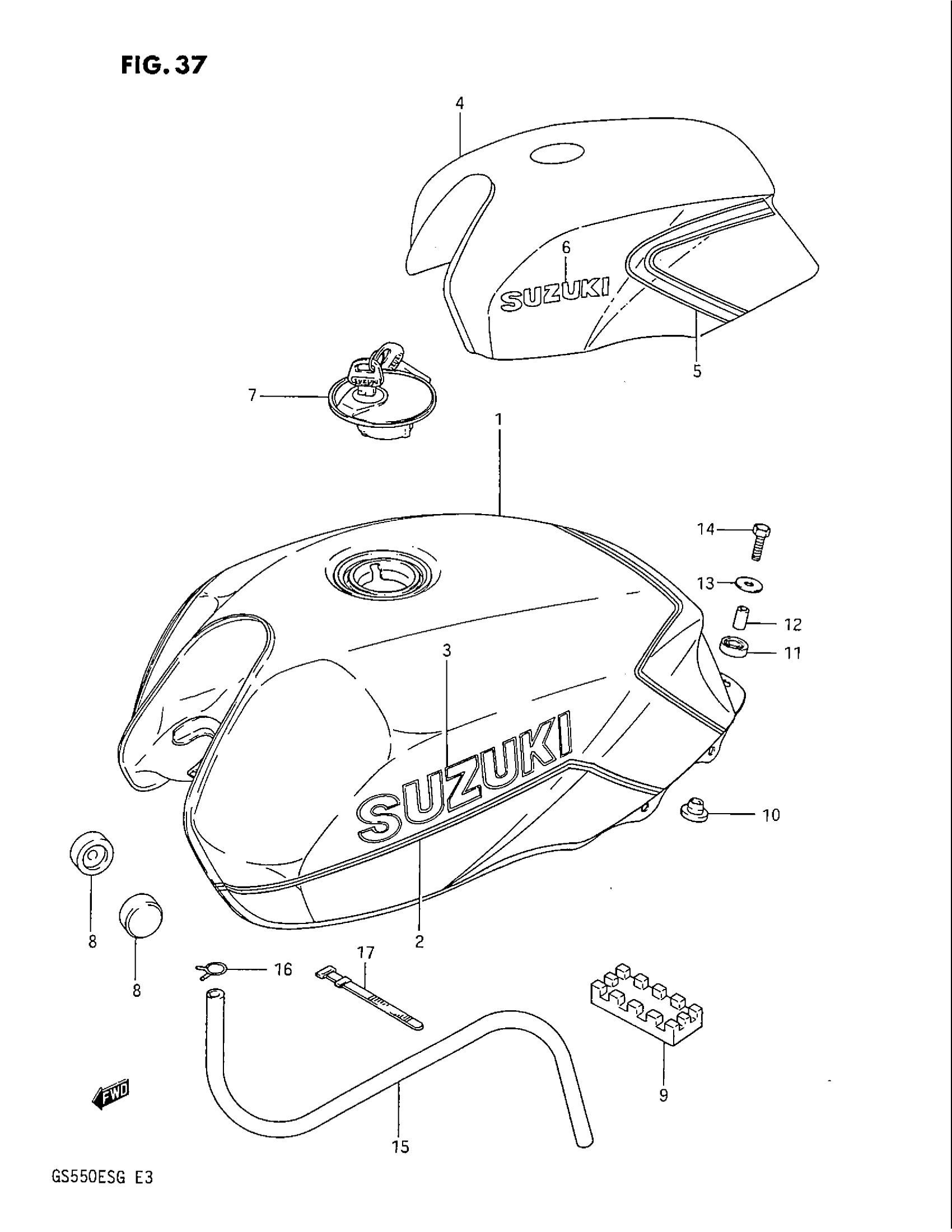

Suzuki GS550EF (1986) FUEL TANK (GS550EF/EG) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL FOTHER THAN CALIFORNIA This part replaces 49100-43410-7JH.

44110-43431-13L

Unavailable

1

(CA) TANK ASSY, FUEL | MODEL FCALIFORNIA ONLY

49100-43420-7JH

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL FOTHER THAN CALIFORNIA This part replaces 49100-43410-7JJ.

44110-43431-13L

Unavailable

1

(CA) TANK ASSY, FUEL | MODEL FCALIFORNIA ONLY; Includes Item(s) 2 - 3

49100-43420-7JJ

Unavailable

2

TAPE SET, FUEL TANK | MODEL F,FOR 7JH

68110-43440-7JF

Unavailable

2

TAPE SET, FUEL TANK | MODEL F,FOR 7JJ

68110-43440-7JG

Unavailable

3

EMBLEM (BLACK) | MODEL F

68111-43400-019

Unavailable

4

TANK ASSY, FUEL | MODEL GOTHER THAN CALIFORNIA

49200-43410-7JH

Unavailable

4

(CA) TANK ASSY, FUEL | MODEL GCALIFORNIA ONLY

49200-43430-7JH

Unavailable

4

TANK ASSY, FUEL | MODEL GOTHER THAN CALIFORNIA

49200-43410-7JK

Unavailable

4

(CA) TANK ASSY, FUEL | MODEL GCALIFORNIA ONLY; Includes Item(s) 5 - 6

49200-43430-7JK

Unavailable

5

TAPE SET, FUEL TANK | MODEL G,FOR 7JH

68110-43480-7JF

Unavailable

5

TAPE SET, FUEL TANK | MODEL G,FOR 7JK

68110-43480-8BE

Unavailable

6

EMBLEM (BLACK) | MODEL G,FOR 7JH

68111-43400-019

Unavailable

6

EMBLEM (WHITE) | MODEL G,FOR 7JK

68111-43400-22R

Unavailable

7

CAP, FUEL TANK | OTHER THAN CALIFORNIA

44200-43410-KEY

Unavailable

7

CAP, FUEL | MODEL FCALIFORNIA ONLY This part replaces 44200-06A20-KEY.

44200-14830

Unavailable

7

CAP, FUEL | MODEL GCALIFORNIA ONLY This part replaces 44200-06A21-KEY.

44200-14830

Unavailable

8

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

9

CUSHION, CENTER

44541-43400

Unavailable

10

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

11

CUSHION, REAR

09320-14013

$2.11

12

SPACER,6.5X9X20 This part replaces 09180-06107.

09180-06308

Unavailable

13

WASHER, 6.5X24X1.6 This part replaces 09160-06072.

09160-06501

$1.86

14

BOLT This part replaces 01107-06306.

01500-0630A

$2.19

15

HOSE This part replaces 09343-05165.

09352-50005-00B

$13.93

16

CLIP

09401-08402

$1.49

17

CLAMP

09407-18401

$2.07
