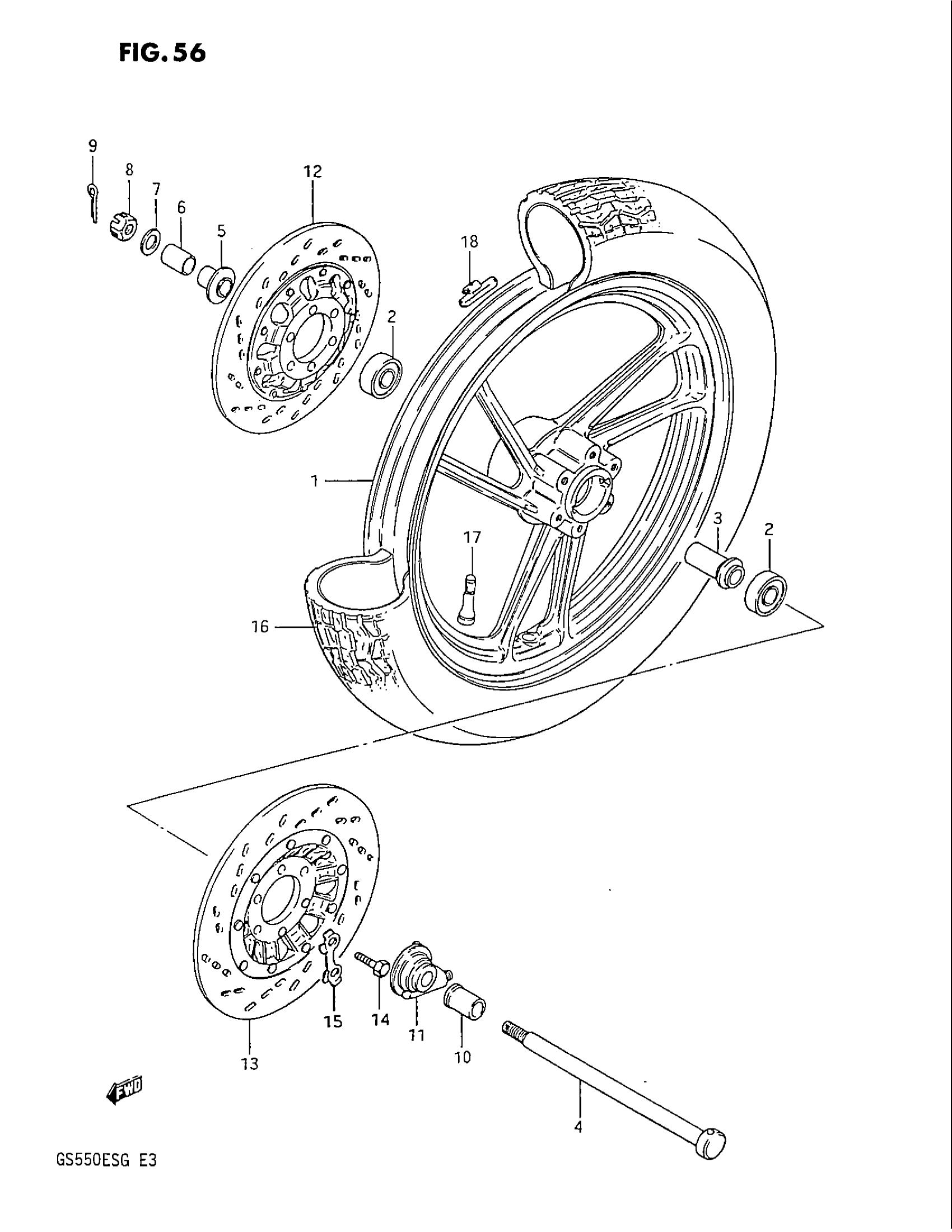

Suzuki GS550EF (1986) FRONT WHEEL Diagram

#

Description
Price

1

WHEEL, FRONT (MT2.15X16) BLAC | GS550ES3/ESE,MODEL F This part replaces 54111-33401-19T.

54111-33401-291

Unavailable

1

WHEEL, FRONT (MT2.15X16) BLAC | MODEL G

54111-33401-291

Unavailable

2

BEARING This part replaces 08123-63027.

08123-6302B

$22.74

3

SPACER, BEARING

54730-18400

$20.45

4

AXLE, FRONT

54711-49000

Unavailable

5

SPACER, AXLE, RH

54740-18402

Unavailable

6

SPACER, AXLE, RH (15X22X35)

54741-49300

Unavailable

7

WASHER This part replaces 08322-21128.

08322-01127

$1.84

8

NUT This part replaces 08314-31128.

08314-3112A

$2.41

9

PIN This part replaces 04111-30308.

04111-3030A

$1.49

10

SPACER, AXLE, LH

54741-49000

Unavailable

11

BOX ASSY, SPEEDOMETER GEAR

54600-33402

Unavailable

12

DISK, FRONT BRAKE RH

59210-33400

Unavailable

13

DISK, FRONT BRAKE LH

59220-33400

Unavailable

14

BOLT

09100-08094

$2.71

15

WASHER

09169-08016

$2.41

16

TIRE, T/L FRONT (100/90-16) | DUNLOP

55100-43450

Unavailable

17

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

$9.25

18

BALANCER (10G) | GS550ES3/ESE,MODEL F This part replaces 55411-00A00-19T.

55411-00A00

$1.49

18

BALANCER, WHEEL NO.2 | GS550ES3/ESE,MODEL F This part replaces 55412-00A00-19T.

55412-17G00

$7.05

18

BALANCER (30G) | GS550ES3/ESE,MODEL F This part replaces 55413-00A00-19T.

55413-00A01

Unavailable

18

BALANCER (10G) | MODEL G This part replaces 55411-00A00-291.

55411-00A00

$1.49

18

BALANCER, WHEEL NO.2 | MODEL G This part replaces 55412-00A00-291.

55412-17G00

$7.05

18

BALANCER (30G) | MODEL G This part replaces 55413-00A00-291.

55413-00A01

Unavailable
