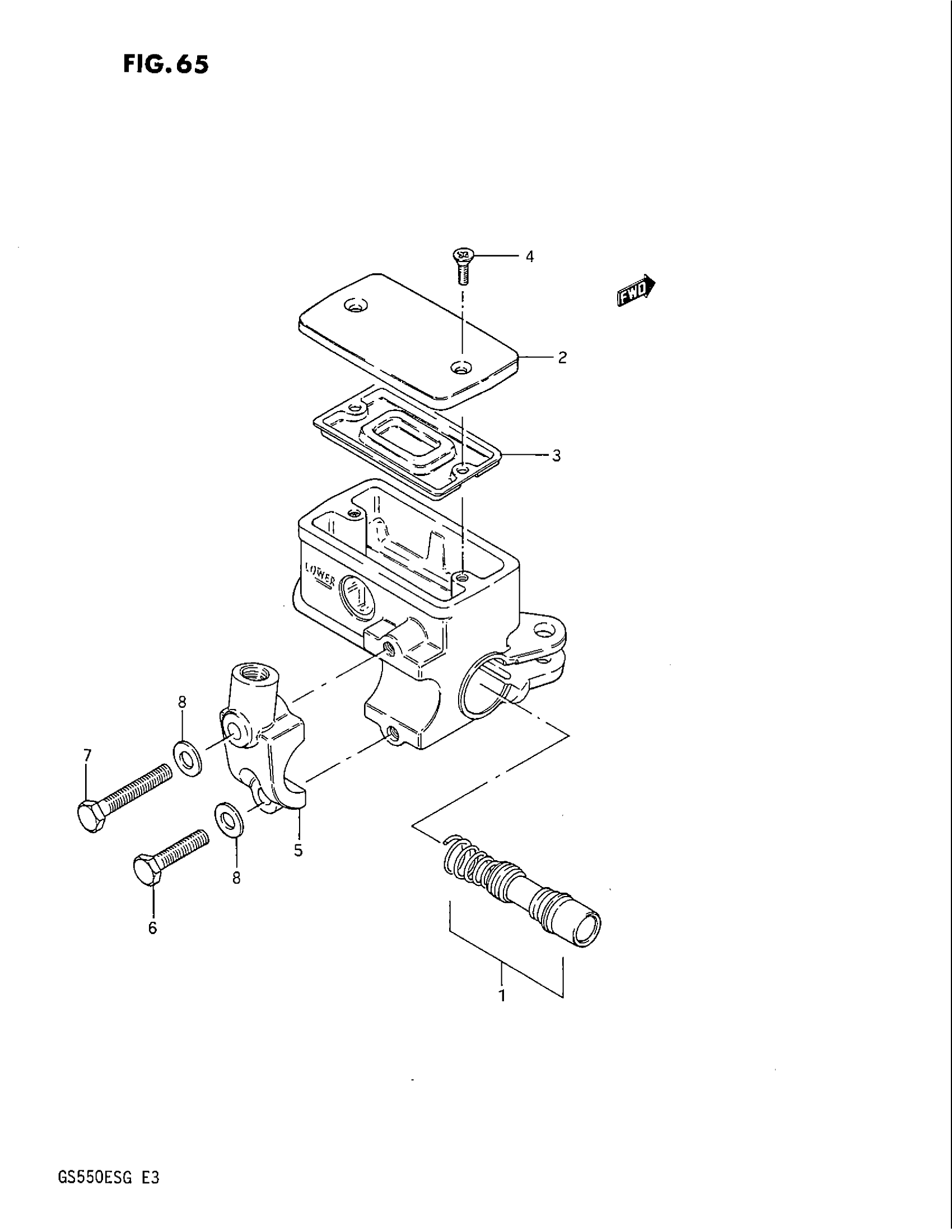

Suzuki GS550EF (1986) FRONT MASTER CYLINDER Diagram

#

Description

Price

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 8 This part replaces 59600-49450.

59600-45X51

Unavailable

1

PISTON / CUP SET

59600-45831

Unavailable

2

CAP This part replaces 69669-49330.

59669-41C00

$32.56

3

DIAPHRAGM This part replaces 69667-49300.

59667-49460

$9.78

4

SCREW, CAP

69689-49300

$1.91

5

HOLDER

59671-44300

$17.37

6

BOLT, GEAR SHIFT ARM This part replaces 01107-06255.

01500-0625A

$1.78

7

BOLT This part replaces 01107-06405.

01500-0640B

$2.62

8

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26
