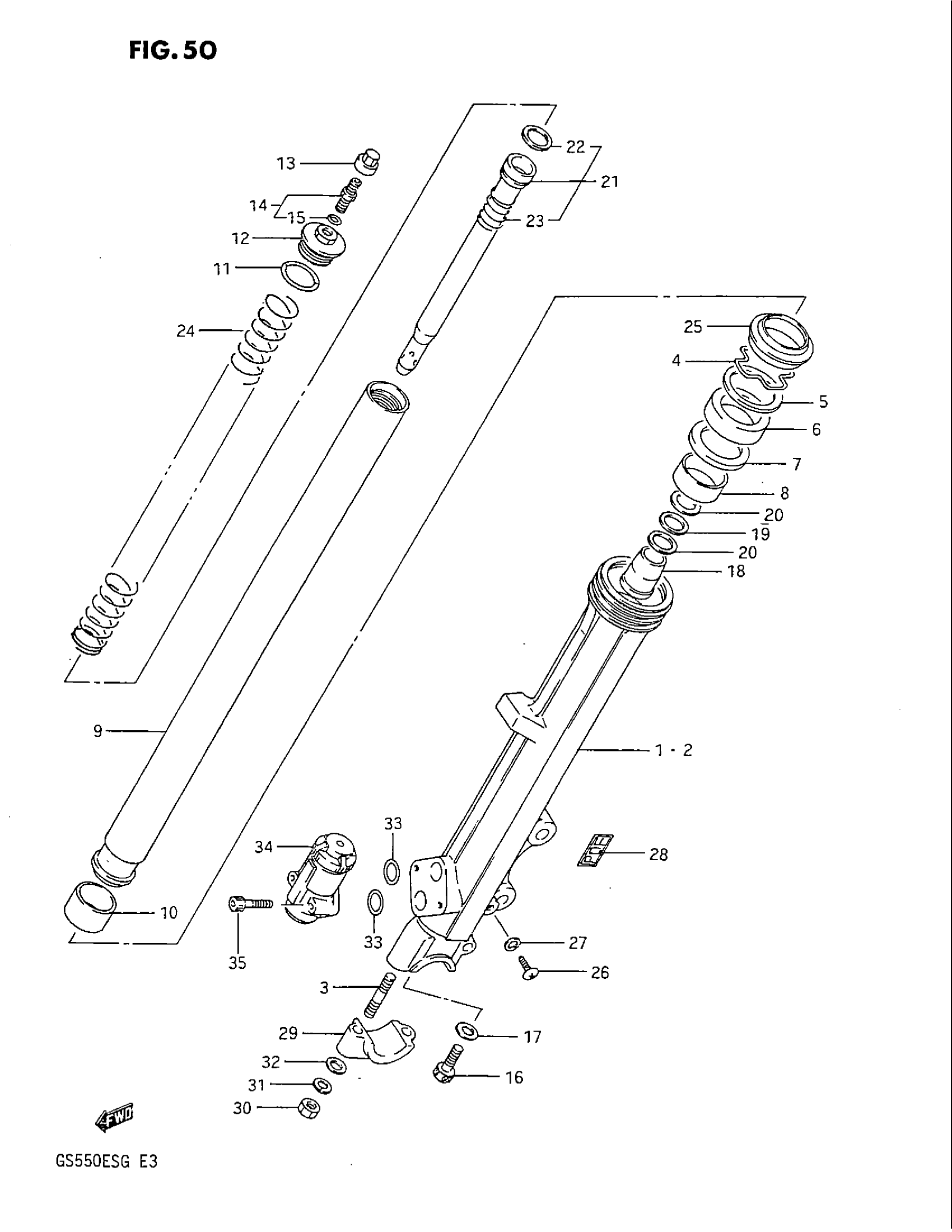

Suzuki GS550EF (1986) FRONT DAMPER (MODEL F/G) Diagram

#

Description
Price

DAMPER ASSY, RH

51103-43405

Unavailable

DAMPER ASSY, LH | Includes Item(s) 1 - 35

51104-43405

Unavailable

1

OUTER TUBE, RH (BLACK)

51130-43405-15T

Unavailable

2

OUTER TUBE, LH (BLACK)

51140-43405-15T

Unavailable

3

BOLT,STUD This part replaces 01411-08308.

01411-0830A

$2.28

4

SNAP RING

51156-40301

$5.05

5

WASHER

51158-49000

Unavailable

6

SEAL, OIL This part replaces 51153-49001.

51153-08C20

$20.47

7

WASHER

51158-49500

$4.45

8

METAL, SLIDE This part replaces 51167-49510.

51167-01D00

$12.63

9

INNER TUBE

51110-43420

Unavailable

10

PISTON

51121-49510

Unavailable

11

O RING

51117-38260

$3.78

12

CAP

51351-16700

Unavailable

13

CAP

51294-49020

Unavailable

14

NO DESCRIPTION AVAILABLE This part replaces 51293-43400.

62274-14400

Unavailable

15

.O RING (D:1.9,ID:5.7) This part replaces 51117-14210.

09280-06005

$1.49

16

BOLT

51147-16510

$4.34

17

GASKET

51148-41310

$2.26

18

PIECE OIL LOCK

51195-45420

Unavailable

19

WASHER

51123-45420

$3.65

20

LEAF SPRING

51125-45420

$3.65

21

CYLINDSER

51146-43405

Unavailable

22

RING, PISTON

51196-43400

Unavailable

23

SPRING, REBOUND

51177-43400

Unavailable

24

SPRING

51171-43400

Unavailable

25

DUST SEAL

51173-43400

Unavailable

26

SCREW This part replaces 02112-04085.

02112-0408A

$1.49

27

GASKET

51183-03010

$2.07

28

EMBLEM (P.D.F)

51169-00A10

Unavailable

29

HOLDER, AXLE (BLACK)

51132-43400-15T

Unavailable

30

NUT This part replaces 08310-11085.

08310-0008A

$1.84

31

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

32

WASHER This part replaces 08322-11084.

08322-0108A

$1.92

33

O RING This part replaces 51799-00A00.

51799-00A01

Unavailable

34

P.D.F ASSY

51770-43405

Unavailable

35

BOLT This part replaces 07110-06408.

07130-06407

$3.68
