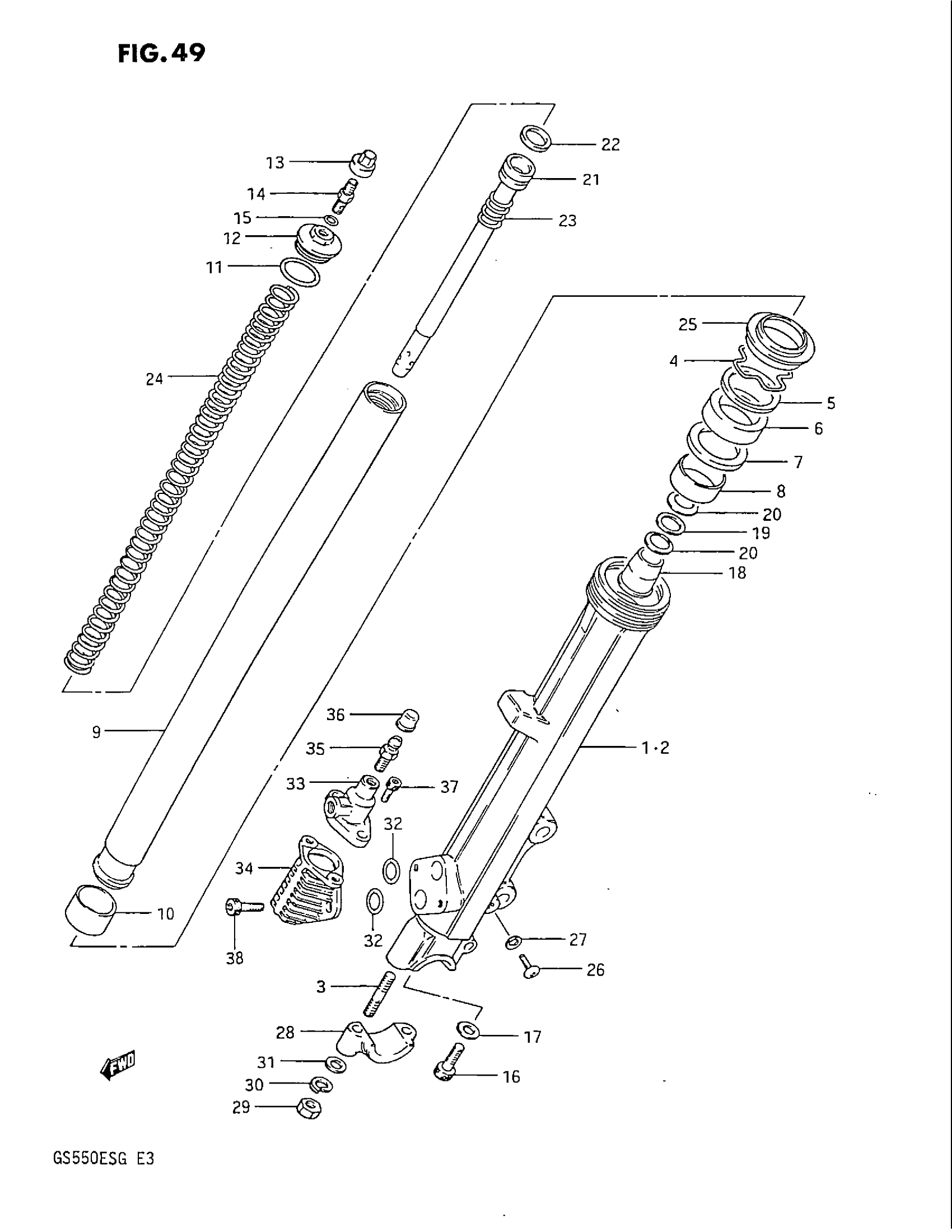

Suzuki GS550EF (1986) FRONT DAMPER (GS550ES3/ESE) Diagram

#

Description
Price

DAMPER ASSY, RH

51103-43435

Unavailable

DAMPER ASSY, LH | Includes Item(s) 1 - 38

51104-43435

Unavailable

1

OUTER TUBE, RH (BLACK)

51130-43400-15T

Unavailable

2

OUTER TUBE, LH (BLACK)

51140-43400-15T

Unavailable

3

BOLT,STUD This part replaces 01411-08308.

01411-0830A

$2.28

4

SNAP RING

51156-40301

$5.05

5

WASHER

51158-49000

Unavailable

6

SEAL, OIL This part replaces 51153-49001.

51153-08C20

$20.47

7

WASHER

51158-49500

$4.45

8

METAL, SLIDE This part replaces 51167-49500.

51167-01D00

$12.63

9

INNER TUBE

51110-43420

Unavailable

10

PISTON This part replaces 51121-49500.

51121-49510

Unavailable

11

O RING

51117-38260

$3.78

12

CAP

51351-16700

Unavailable

13

CAP

51294-49020

Unavailable

14

NO DESCRIPTION AVAILABLE This part replaces 51293-43400.

62274-14400

Unavailable

15

.O RING (D:1.9,ID:5.7) This part replaces 51117-14210.

09280-06005

$1.49

16

BOLT

51147-16510

$4.34

17

GASKET

51148-41310

$2.26

18

PIECE OIL LOCK

51195-45420

Unavailable

19

WASHER

51123-45420

$3.65

20

LEAF SPRING

51125-45420

$3.65

21

CYLINDER

51146-43410

Unavailable

22

RING, PISTON

51196-43400

Unavailable

23

SPRING, REACTION

51177-43400

Unavailable

24

SPRING

51171-43400

Unavailable

25

DUST SEAL

51173-43400

Unavailable

26

SCREW This part replaces 02112-04085.

02112-0408A

$1.49

27

GASKET

51183-03010

$2.07

28

HOLDER, AXLE (BLACK)

51132-43400-15T

Unavailable

29

NUT This part replaces 08310-11085.

08310-0008A

$1.84

30

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

31

WASHER This part replaces 08322-11084.

08322-0108A

$1.92

32

O RING, OIL GALLERY This part replaces 51799-44130.

09280-12012

$4.64

33

MODULATOR PLUNGER SET This part replaces 51790-43400.

51790-11330

Unavailable

34

NO DESCRIPTION AVAILABLE This part replaces 51770-43400.

51770-04710

Unavailable

35

BREATHER, AIR

51778-44130

Unavailable

36

CAP, BLEEDER This part replaces 51779-44130.

55156-66310

$5.17

37

BOLT, MODULATOR (5X12)

07112-05125

Unavailable

38

BOLT This part replaces 07110-06165.

07130-0616B

$2.39
