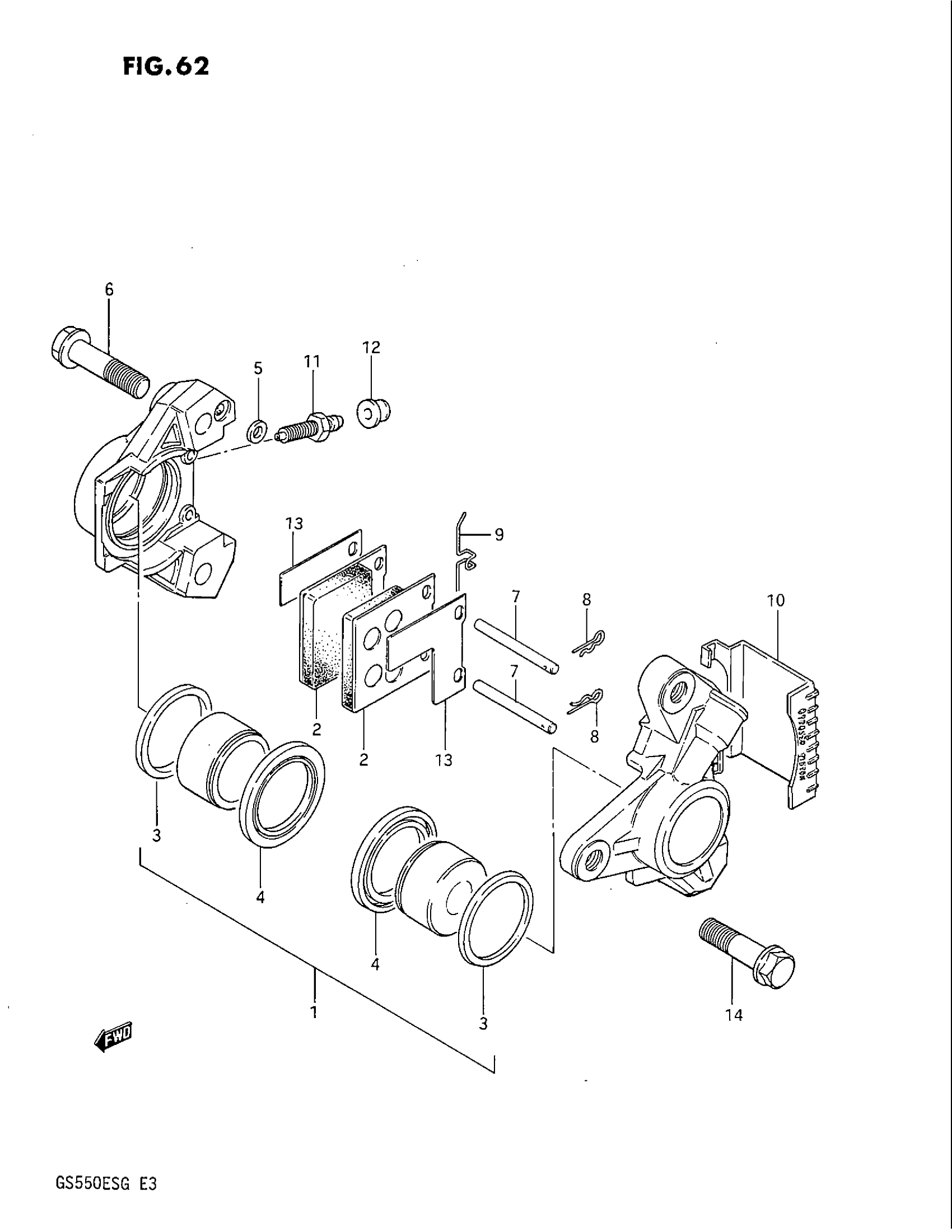

Suzuki GS550EF (1986) FRONT CALIPERS Diagram

#

Description
Price

CALIPERS ASSY, RH | GS550ES3/ESE

59100-33410

Unavailable

CALIPERS ASSY, LH | GS550ES3/ESE

59300-33410

Unavailable

CALIPERS ASSY, RH | MODEL F/G

59100-33420

Unavailable

CALIPERS ASSY, LH | MODEL F/G; Includes Item(s) 1 - 13

59300-33420

Unavailable

1

PISTON SET | GS550ES3/ESE This part replaces 69100-16810.

69100-27821

$77.35

1

PISTON SET | MODEL F/G This part replaces 69100-16830.

69100-27821

$77.35

2

PAD SET, BRAKE | GS550ES3/ESE This part replaces 59130-16700.

59100-16820

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL F/G This part replaces 59130-16730.

59100-16830

Unavailable

3

SEAL,PISTON This part replaces 59107-18410.

69107-05CF0

$9.07

4

BOOT, PISTON

59108-16700

$9.40

5

SEAL, PISTON

69107-34200

$10.71

6

BOLT, HOUSING

59145-16700

$8.83

7

PIN

69141-45000

$5.17

8

.CLIP, PAD PIN

69142-45000

$4.34

9

SPRING

59143-16700

$5.80

10

COVER This part replaces 59151-16700.

59151-16701

$13.36

11

BLEEDER

59121-18410

$8.73

12

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

$5.17

13

SHIM

59371-33420

$15.13

14

BOLT,10X37 This part replaces 09103-10038.

09103-10038-XC0

$2.86
