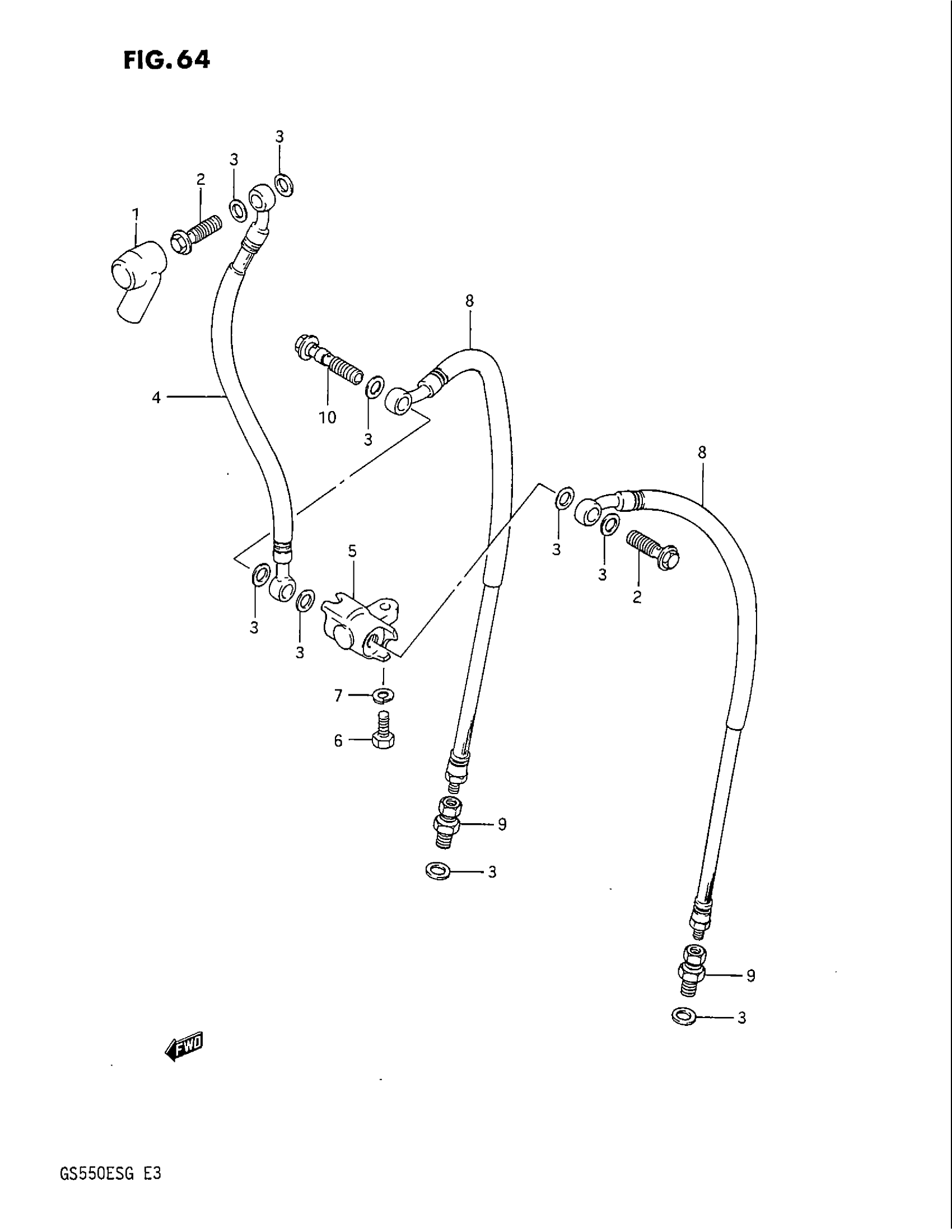

Suzuki GS550EF (1986) FRONT BRAKE HOSE (MODEL F/G) Diagram

#

Description

Price

1

BOOT, MASTER CYLINDER

59711-49001

$7.39

2

UNION BOLT

09360-10017

$3.19

3

WASHER (10X15X1.5)

09161-10009

$1.89

4

NO DESCRIPTION AVAILABLE | GS550ESF/ESG This part replaces 59480-43400.

59480-33202

Unavailable

4

HOSE, BRAKE NO.1 (L:405) | GS550EF/EG

59480-43411

Unavailable

5

JOINT, BRAKE HOSE This part replaces 59491-45000.

59491-45001

Unavailable

6

BOLT This part replaces 01107-06208.

01500-06207

$2.06

7

LOCK WASHER This part replaces 08321-21067.

08321-01067

$1.89

8

HOSE, BRAKE NO. 2 (L:420)

59240-43410

Unavailable

9

ADAPTER

59290-43500

$40.83

10

UNION BOLT

09360-10018

$7.38
