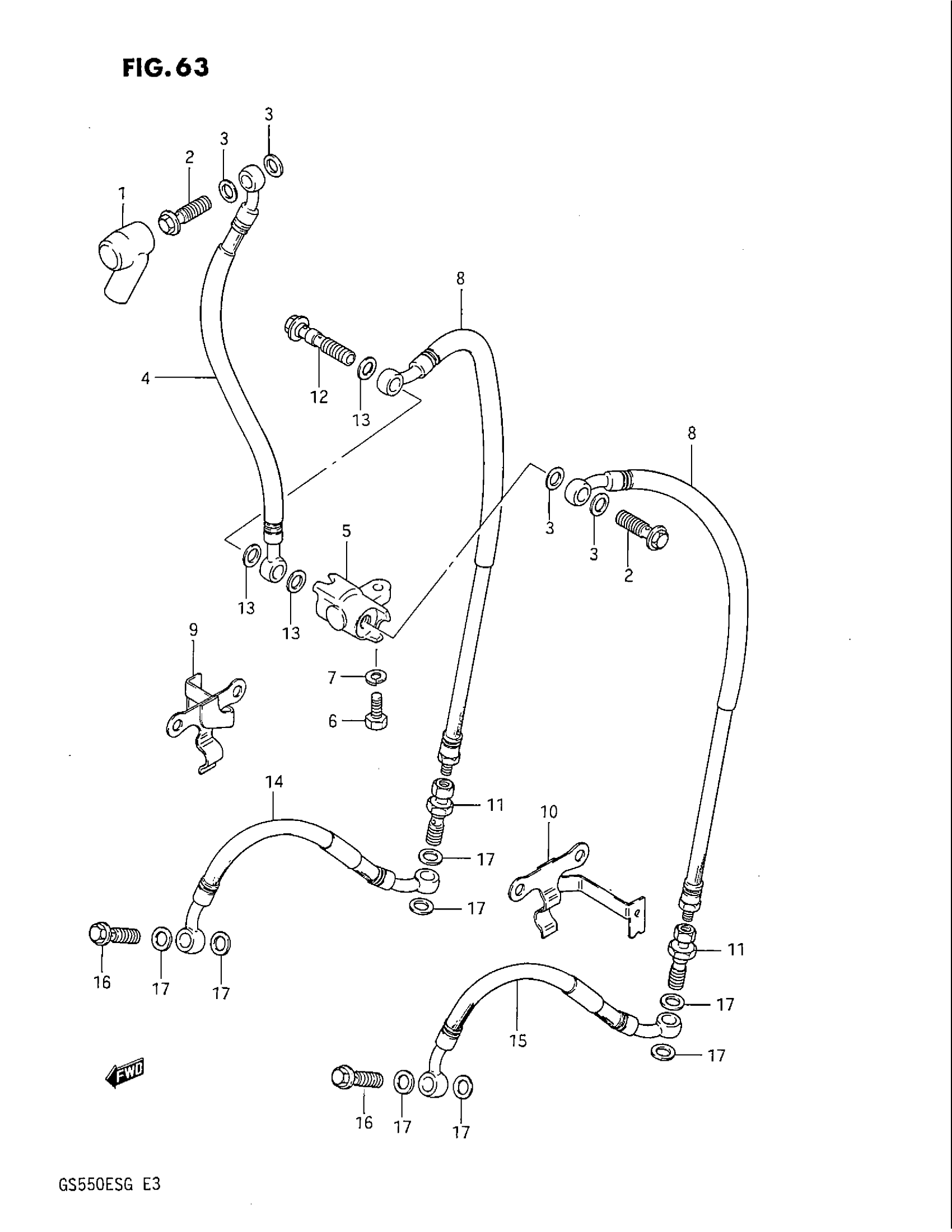

Suzuki GS550EF (1986) FRONT BRAKE HOSE (GS550ES3/ESE) Diagram

#

Description
Price

1

BOOT, MASTER CYLINDER

59711-49001

$7.51

2

UNION This part replaces 09360-10009.

09360-10017

$3.42

3

WASHER (10X15X1.5)

09161-10009

$1.84

4

NO DESCRIPTION AVAILABLE This part replaces 59480-43400.

59480-33202

Unavailable

5

JOINT, BRAKE HOSE This part replaces 59491-45000.

59491-45001

Unavailable

6

BOLT This part replaces 01107-06208.

01500-06207

$2.28

7

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

8

HOSE, BRAKE NO. 2 (L:410)

59240-43402

Unavailable

9

CLAMP, HOSE RH

59260-43400

Unavailable

10

CLAMP, HOSE LH

59270-43400

Unavailable

11

ADAPTER

59290-16700

Unavailable

12

UNION BOLT This part replaces 09360-10008.

09360-10018

$6.80

13

WASHER (10X15X1.5)

09161-10009

$1.84

14

HOSE, ANTI NOSE DIVE, RH

59520-43401

Unavailable

15

HOSE, ANTI NOSE DIVE, LH

59530-43401

Unavailable

16

UNION BOLT

09360-10021

Unavailable

17

WASHER (10X15X1.5)

09161-10009

$1.84
