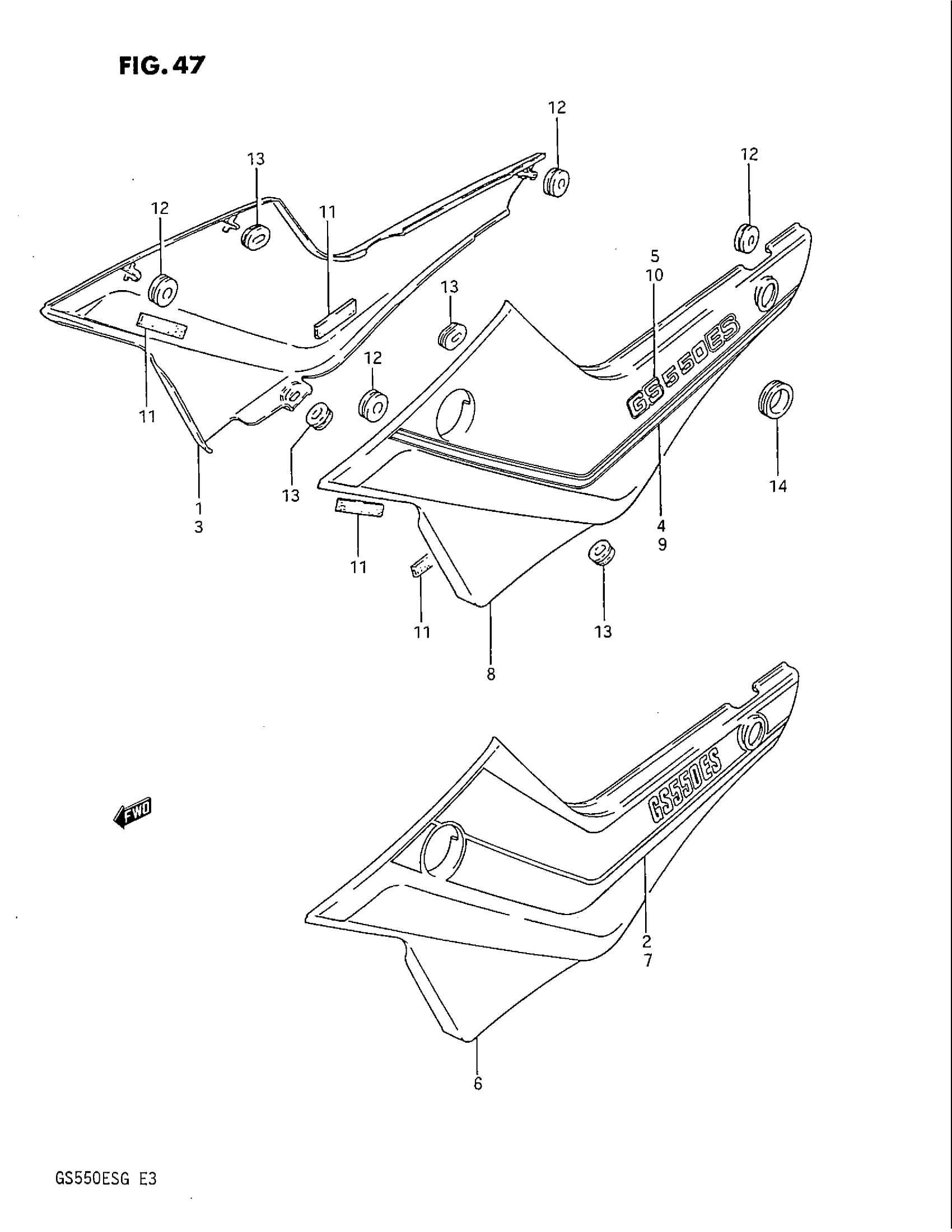

Suzuki GS550EF (1986) FRAME COVER (GS550ESF/ESG) Diagram

#

Description
Price

1

COVER,FRAME RH | MODEL F; Includes Item(s) 2 This part replaces 47110-43490-22R.

47110-43401

Unavailable

2

TAPE SET, FRAME COVER RH | MODEL F

68130-43450-7JF

Unavailable

3

COVER,FRAME RH | MODEL G This part replaces 47610-43450-7JH.

47110-43401

Unavailable

3

COVER,FRAME RH | MODEL G; Includes Item(s) 4 - 5 This part replaces 47610-43450-7JK.

47110-43401

Unavailable

4

TAPE SET, FRAME COVER RH | MODEL G,FOR 7JH

68730-43400-7JF

Unavailable

4

TAPE SET, FRAME COVER RH | MODEL G,FOR 7JK

68730-43400-8BE

Unavailable

5

EMBLEM | MODEL G,FOR 7JH

68132-43420-7JH

Unavailable

5

EMBLEM | MDOEL G,FOR 7JK

68132-43420-60K

Unavailable

6

COVER,FRAME LH | MODEL F; Includes Item(s) 7 This part replaces 47210-43490-22R.

47210-43411

Unavailable

7

TAPE SET, FRAME COVER LH | MODEL F

68140-43450-7JF

Unavailable

8

COVER,FRAME LH | MODEL G This part replaces 47710-43450-7JH.

47210-43411

Unavailable

8

COVER,FRAME LH | MODEL G; Includes Item(s) 9 - 10 This part replaces 47710-43450-7JK.

47210-43411

Unavailable

9

TAPE SET, FRAME COVER LH | MODEL G,FOR 7JH

68740-43400-7JF

Unavailable

9

TAPE SET, FRAME COVER LH | MODEL G,FOR 7JK

68740-43400-8BE

Unavailable

10

EMBLEM | MODEL G,FOR 7JH

68132-43420-7JH

Unavailable

10

EMBLEM | MODEL G,FOR 7JK

68132-43420-60K

Unavailable

11

CUSHION

47113-49200

Unavailable

12

CUSHION

09320-08018

$3.04

13

CUSHION This part replaces 09320-05006.

09320-06504

$4.96

14

GROMMET

45522-04700

Unavailable
