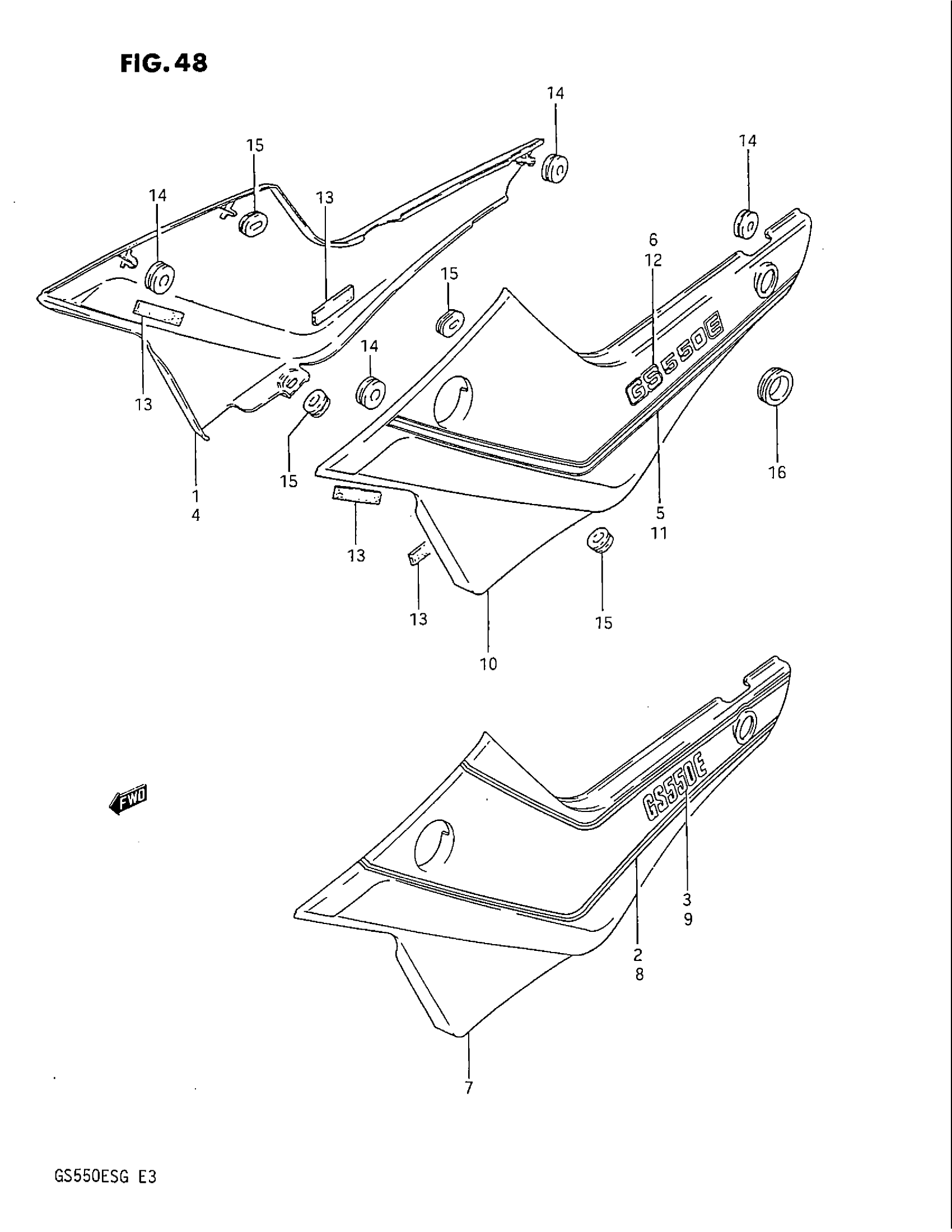

Suzuki GS550EF (1986) FRAME COVER (GS550EF/EG) Diagram

#

Description
Price

1

COVER,FRAME RH | MODEL F This part replaces 47110-43610-7JH.

47110-43401

Unavailable

1

COVER,FRAME RH | MODEL F; Includes Item(s) 2 - 3 This part replaces 47110-43610-7JJ.

47110-43401

Unavailable

2

TAPE SET, FRAME COVER RH | MODEL F,FOR 7JH

68130-43440-7JF

Unavailable

2

TAPE SET, FRAME COVER RH | MODEL F,FOR 7JJ

68130-43440-7JG

Unavailable

3

EMBLEM | MODEL F

68236-43400-69L

Unavailable

4

COVER, FRAME RH | MODEL G

47110-43630-7JH

Unavailable

4

COVER, FRAME RH | MODEL G; Includes Item(s) 5 - 6

47110-43630-7JK

Unavailable

5

TAPE SET, FRAME COVER RH | MODEL G,FOR 7JH

68730-43400-7JF

Unavailable

5

TAPE SET, FRAME COVER RH | MODEL G,FOR 7JK

68730-43400-8BE

Unavailable

6

EMBLEM | MODEL G,FOR 7JH

68132-43410-7JH

Unavailable

6

EMBLEM | MODEL G,FOR 7JK

68132-43410-60K

Unavailable

7

COVER,FRAME LH | MODEL F This part replaces 47210-43610-7JH.

47210-43411

Unavailable

7

COVER,FRAME LH | MODEL F; Includes Item(s) 8 - 9 This part replaces 47210-43610-7JJ.

47210-43411

Unavailable

8

TAPE SET, FRAME COVER LH | MODEL F,FOR 7JH

68140-43440-7JF

Unavailable

8

TAPE SET, FRAME COVER LH | MODEL F,FOR 7JJ

68140-43440-7JG

Unavailable

9

EMBLEM | MODEL F

68236-43400-69L

Unavailable

10

COVER, FRAME LH | MODEL G

47210-43630-7JH

Unavailable

10

COVER, FRAME LH | MODEL G; Includes Item(s) 11 - 12

47210-43630-7JK

Unavailable

11

TAPE SET, FRAME COVER LH | MODEL G,FOR 7JH

68740-43400-7JF

Unavailable

11

TAPE SET, FRAME COVER LH | MODEL G,FOR 7JK

68740-43400-8BE

Unavailable

12

EMBLEM | MODEL G,FOR 7JH

68132-43410-7JH

Unavailable

12

EMBLEM | MODEL G,FOR 7JK

68132-43410-60K

Unavailable

13

CUSHION

47113-49200

Unavailable

14

CUSHION

09320-08018

$3.04

15

CUSHION This part replaces 09320-05006.

09320-06504

$4.96

16

GROMMET

45522-04700

Unavailable
