Partiron

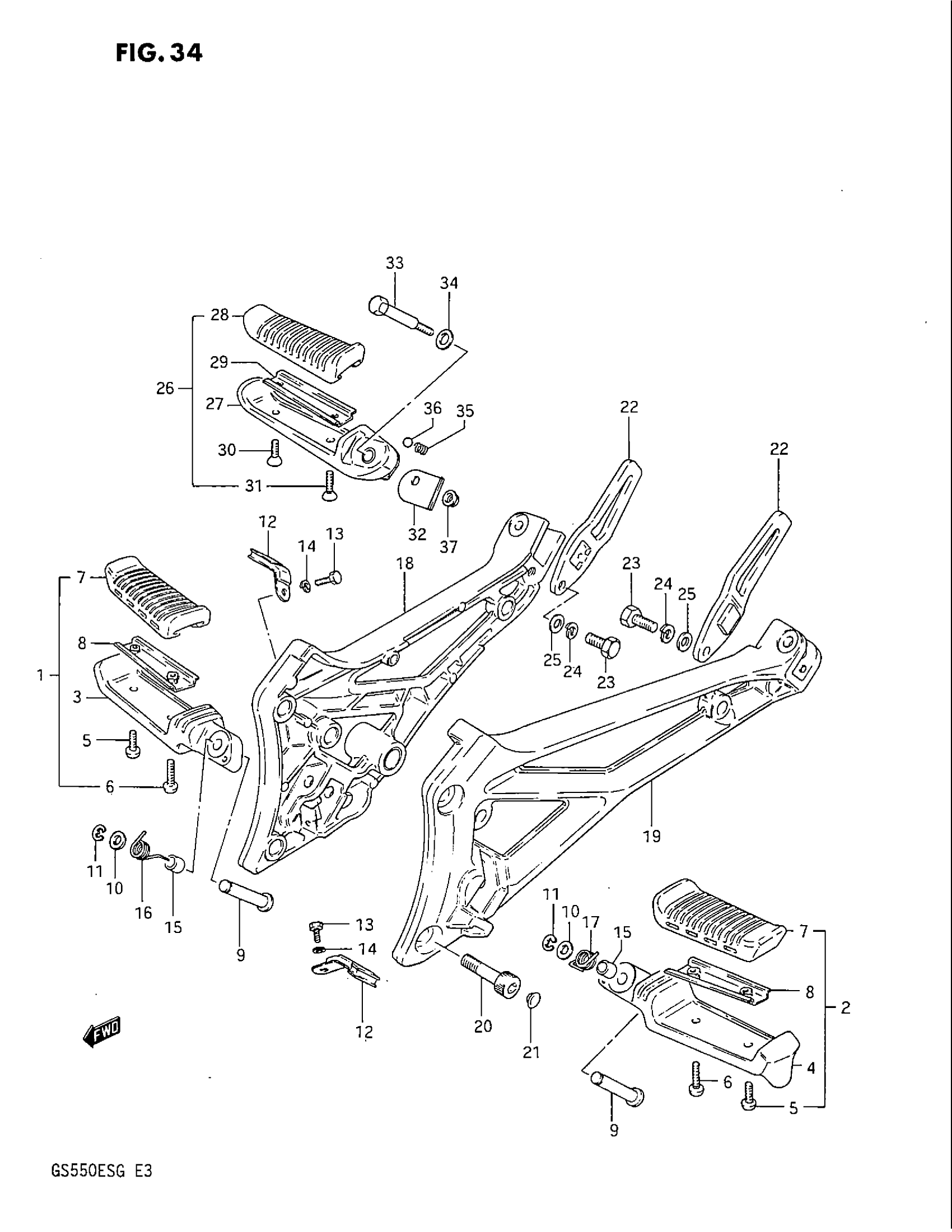

Suzuki GS550EF (1986) FOOTREST Diagram

#

Description
Price

1

BAR, FRONT FOOTREST RH This part replaces 43501-43400.

43510-48B51

Unavailable

2

NO DESCRIPTION AVAILABLE | Includes Item(s) 3 - 8 This part replaces 43502-43400.

43502-43401

Unavailable

3

NO DESCRIPTION AVAILABLE This part replaces 43510-43400.

43510-43401

Unavailable

4

NO DESCRIPTION AVAILABLE This part replaces 43520-43400.

43520-43401

Unavailable

5

SCREW This part replaces 02112-05128.

02112-05127

$1.97

6

SCREW This part replaces 02112-05168.

02112-05167

$1.97

7

RUBBER,FR FOOTR This part replaces 43551-31300.

43550-31300

$25.83

8

PLATE, FRONT FOOTREST RUBBER

43580-33301

Unavailable

9

PIN

09208-08005

Unavailable

10

WASHER (8X14X1.0) This part replaces 08211-08141.

09181-08139

$1.91

11

CIRCLIP This part replaces 08332-11068.

08332-1106A

$1.49

12

CUSHION

43570-43400

Unavailable

13

BOLT This part replaces 01107-05108.

01500-0510B

$1.80

14

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.84

15

SPACER

09306-08013

Unavailable

16

SPRING, RH

09448-14030

Unavailable

17

SPRING, LH

09448-14031

Unavailable

18

BRACKET, MUFFLER RH

43810-43403

Unavailable

19

BRACKET, MUFFLER LH

43820-43403

Unavailable

20

BOLT

09106-10017

Unavailable

21

CAP

43575-34500

$1.72

22

FOOT GUARD, REAR

43671-31300

Unavailable

23

PLUG, DRAIN This part replaces 01107-08167.

01500-0816B

$2.50

24

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

25

WASHER This part replaces 08322-11088.

08322-01087

$2.13

26

FOOTREST ASSY, PILLION RH

43600-31300

Unavailable

26

FOOTREST ASSY, PILLION LH | Includes Item(s) 27 - 31

43700-31300

Unavailable

27

BAR, PILLION FOOTREST RH

43610-45501

Unavailable

27

BAR, PILLION FOOTREST LH

43710-45501

Unavailable

28

RUBBER, PILLION FOOTREST

43612-31300

$13.05

29

PLATE, RUBBER STOP

43632-45501

$3.70

30

SCREW This part replaces 02132-05127.

02122-05127

$1.93

31

SCREW This part replaces 02132-05167.

02122-05167

$2.47

32

PLATE, SPRING STOP RH

43635-43400

Unavailable

32

PLATE, SPRING STOP LH

43735-43400

Unavailable

33

BOLT

09111-06035

Unavailable

34

WASHER This part replaces 08322-11088.

08322-01087

$2.13

35

SPRING

09440-05028

Unavailable

36

STEEL BALL

06111-08003

$1.49

37

NUT

08319-31067

$2.03
