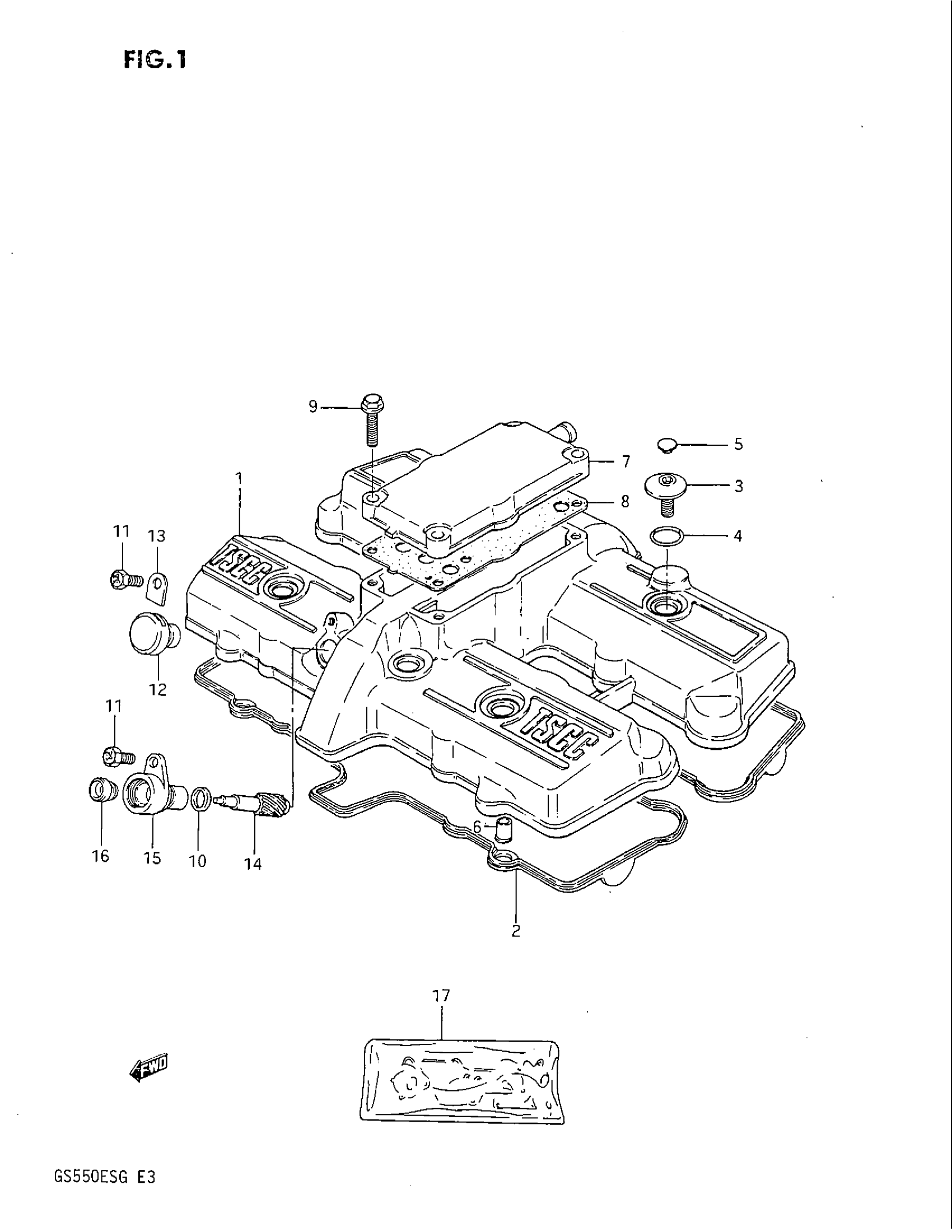

Suzuki GS550EF (1986) CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD

11171-43403

Unavailable

2

GASKET, HEAD COVER

11173-43402

Unavailable

3

BOLT

09106-07001

Unavailable

4

O RING

09280-15006

$2.90

5

CAP This part replaces 09250-06008.

09250-06016

$1.96

6

PIN

04221-08129

$1.99

7

COVER, BREATHER

11176-43402

Unavailable

8

GASKET,BRTHR CV This part replaces 11177-43403.

11177-43403-H17

Unavailable

9

BOLT This part replaces 01517-06254.

01550-0625A

$1.97

10

SEAL BAND

26451-45000

$5.05

11

SCREW

09128-05101

$1.49

12

PLUG | GS550ES3/ESE/ESF/ESG

26442-45000

$19.72

13

PLATE | GS550ES3/ESE/ESF/ESG

26449-33000

$4.35

14

GEAR, TACHOMETER DRIVEN | GS550EF/EG This part replaces 26431-49200.

26431-49201

Unavailable

15

SLEEVE | GS550EF/EG

26441-49000

$30.58

16

OIL SEAL | GS550EF/EG

09289-05002

$8.43

17

NO DESCRIPTION AVAILABLE | OPT This part replaces 11400-43833.

11400-43837

Unavailable
