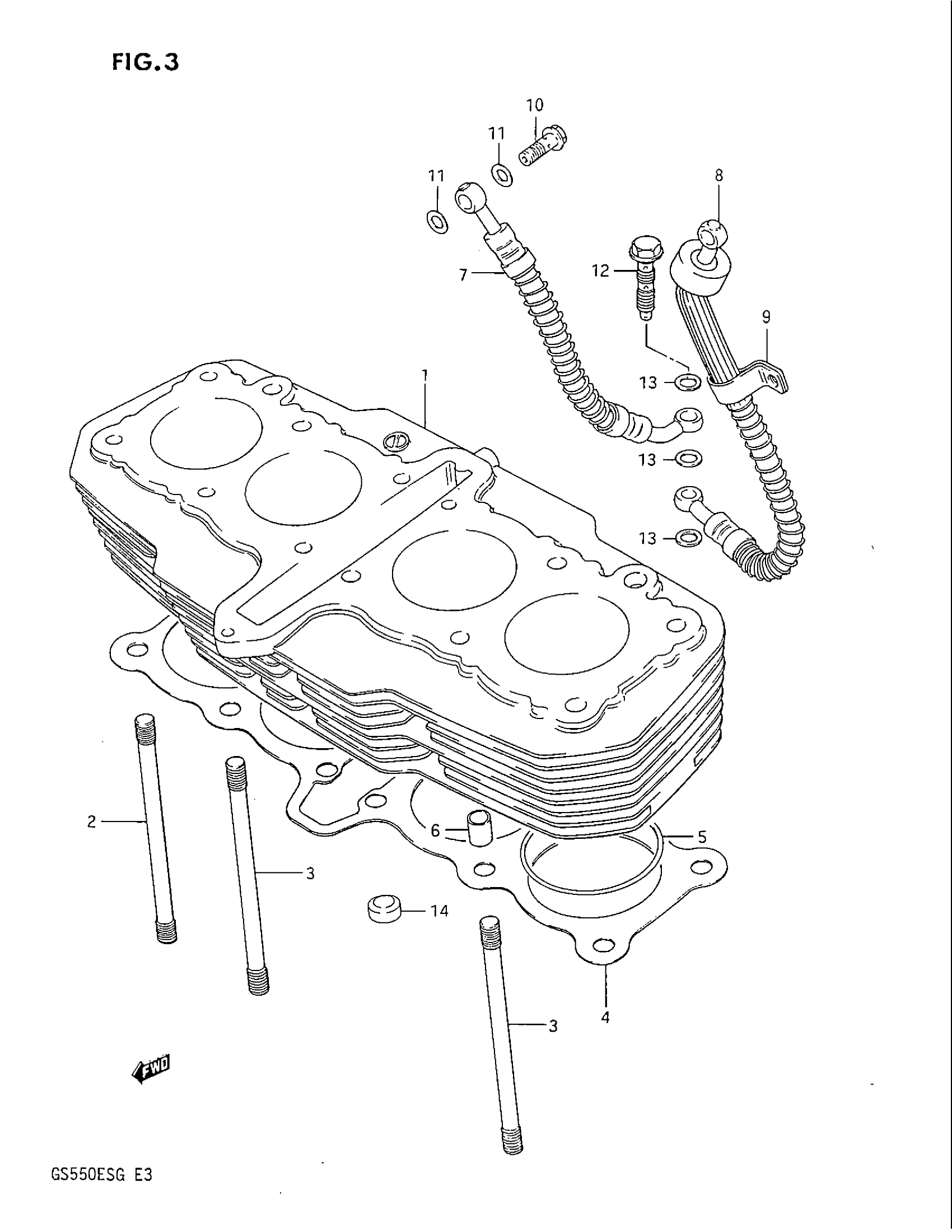

Suzuki GS550EF (1986) CYLINDER Diagram

#

Description
Price

1

CYLINDER

11210-43403

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 09108-08058.

09108-08241

Unavailable

3

STUD BOLT (L:147)

09108-08170

Unavailable

4

GASKET,CYLINDER This part replaces 11241-43402.

11241-43403-H17

Unavailable

5

O RING

09280-61001

Unavailable

6

PIN This part replaces 09206-11003.

04211-11169

$1.78

7

HOSE, OIL RH

11281-43404

Unavailable

8

HOSE, OIL LH

11283-43404

Unavailable

9

CLAMP

11284-43400

Unavailable

10

BOLT (8X25) This part replaces 09360-08008.

09360-08011

$3.68

11

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.65

12

UNION BOLT

11285-31301

Unavailable

13

WASHER (10X15X1.5)

09161-10009

$1.84

14

PAD, RUBBER

11252-02300

Unavailable
