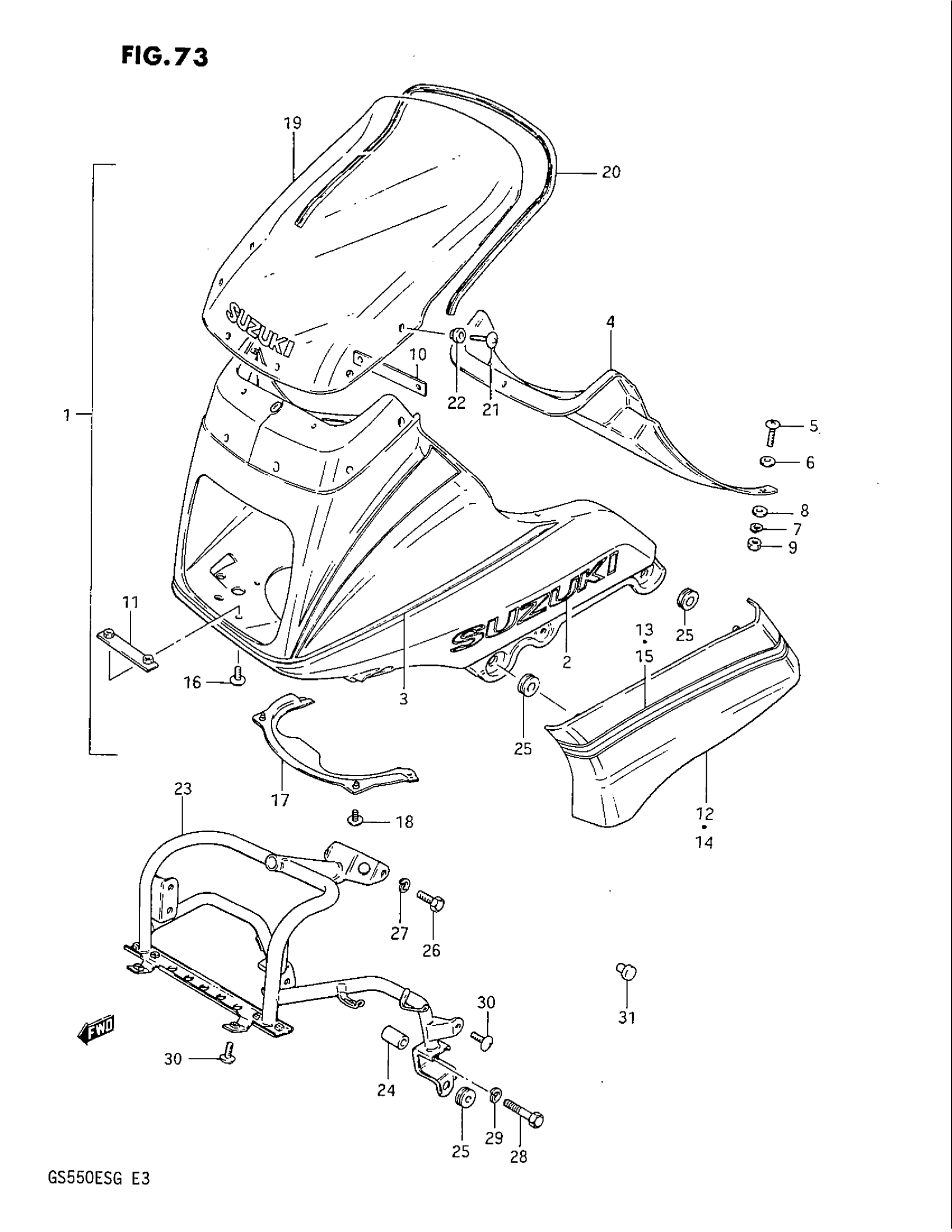

Suzuki GS550EF (1986) COWLING (GS550ES3/ESE) Diagram

#

Description
Price

1

COWLING ASSY (BLUE) | Includes Item(s) 2 - 11

94400-43490-04X

Unavailable

2

EMBLEM (GREEN) This part replaces 68111-32401-73H.

68111-44400-07G

Unavailable

3

TAPE SET

68190-43410-7FG

Unavailable

4

PANEL, UPPER

94422-43400

Unavailable

5

SCREW This part replaces 02142-05165.

02142-0516A

$1.49

6

WASHER, FRONT This part replaces 08322-21055.

08322-0105A

$1.84

7

LOCK WASHER This part replaces 08321-21055.

08321-0105A

$1.84

8

WASHER, FRONT This part replaces 08322-21055.

08322-0105A

$1.84

9

NUT This part replaces 08310-12055.

08310-0005A

$1.84

10

BRACE, UPPER

94416-43400

Unavailable

11

BRACE

94420-43400

Unavailable

12

NO DESCRIPTION AVAILABLE | Includes Item(s) 13 This part replaces 94430-43420-05X.

94430-43400

Unavailable

13

TAPE SET

68680-43420-7FG

Unavailable

14

COVER, LH (WHITE/BLUE) | Includes Item(s) 15

94440-43420-05X

Unavailable

15

TAPE SET

68690-43420-7FG

Unavailable

16

SCREW, RH & LH

02142-05127

$1.97

17

NO DESCRIPTION AVAILABLE This part replaces 94480-43400.

94480-43410

Unavailable

18

SCREW This part replaces 02142-05165.

02142-0516A

$1.49

19

WINDOW

94611-43431

Unavailable

20

MOLDING This part replaces 94631-43400.

94631-44110

$36.85

21

SCREW This part replaces 02142-05165.

02142-0516A

$1.49

22

CUSHION(5.5X11X This part replaces 09320-05008.

09320-05021

$2.54

23

BRACE

94510-43400

Unavailable

24

SPACER (8.2X12.5X23.5) This part replaces 09180-08057.

09180-08227

$2.06

25

CUSHION

09320-08018

$3.04

26

PLUG, DRAIN This part replaces 01107-08165.

01500-0816B

$2.50

27

LOCK WASHER This part replaces 08321-21085.

08321-0108A

$1.84

28

BOLT This part replaces 01107-08455.

01500-08453

$2.50

29

LOCK WASHER This part replaces 08321-21085.

08321-0108A

$1.84

30

SCREW This part replaces 02142-06125.

02142-0612A

$1.49

31

PLUG This part replaces 09250-06007.

09250-06005

$2.15

31

CAP This part replaces 09250-05006.

09250-05007

$2.23
