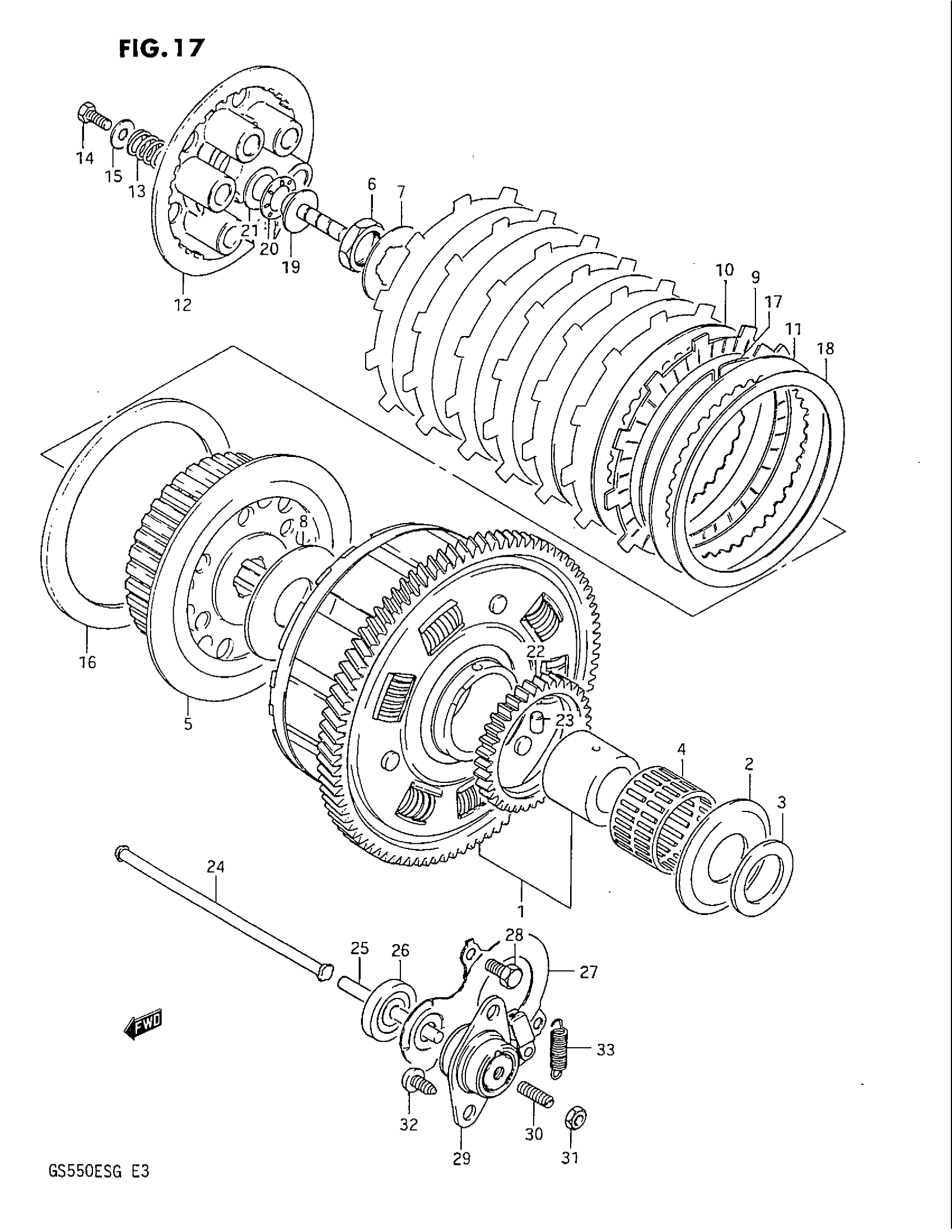

Suzuki GS550EF (1986) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN | NT:89

21200-43810

Unavailable

2

WASHER

09160-25038

Unavailable

3

WASHER

08211-25405

Unavailable

4

BEARING

09263-40004

Unavailable

5

HUB, SLEEVE This part replaces 21410-43401.

21411-45000

Unavailable

6

NUT

09140-24007

$3.89

7

WASHER

09167-25007

Unavailable

8

WASHER

09160-25038

Unavailable

9

PLATE, DRIVE

21441-45001

$24.07

10

PLATE,CLUTCH DRIVEN (T:1.6) This part replaces 21451-45000.

21451-28C31

$11.81

11

PLATE, DRIVEN (T:2.0)

21451-31000

$10.40

12

PLATE, PRESSURE This part replaces 21462-16501.

21462-14301

$59.33

13

SPRING

09440-19004

$2.50

14

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

15

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89

16

SEAT, WAVE WASHER

21471-45101

Unavailable

17

RING, STOPPER

21481-45100

$5.80

18

WAVE WASHER

09164-00003

$12.67

19

PIECE, PUSH

23121-44100

$25.75

20

BEARING

09263-15003

$8.29

21

WASHER, CLUTCH PUSH This part replaces 09160-15015.

09160-15045

$3.89

22

GEAR, OIL PUMP DRIVE (NT:36)

16321-43400

Unavailable

23

PIN

09261-06005

Unavailable

24

ROD, CLUTCH PUSH This part replaces 23110-31300.

23110-32C50

Unavailable

25

ROD,CLUTCH PUSH,L

23111-15501

$13.30

26

OIL SEAL

09285-06018

$12.40

27

HOLDER, OIL SEAL

23117-43400

Unavailable

28

BOLT This part replaces 01107-06128.

01500-06127

$1.97

29

SCREW ASSY, RELEASE | Includes Item(s) 30 - 31

23200-31300

Unavailable

30

SCREW

09134-06010

$3.12

31

.NUT This part replaces 08310-22068.

08310-00067

$2.13

32

SCREW This part replaces 03111-06168.

03111-0616B

$1.93

33

SPRING

09443-08001

$2.92
