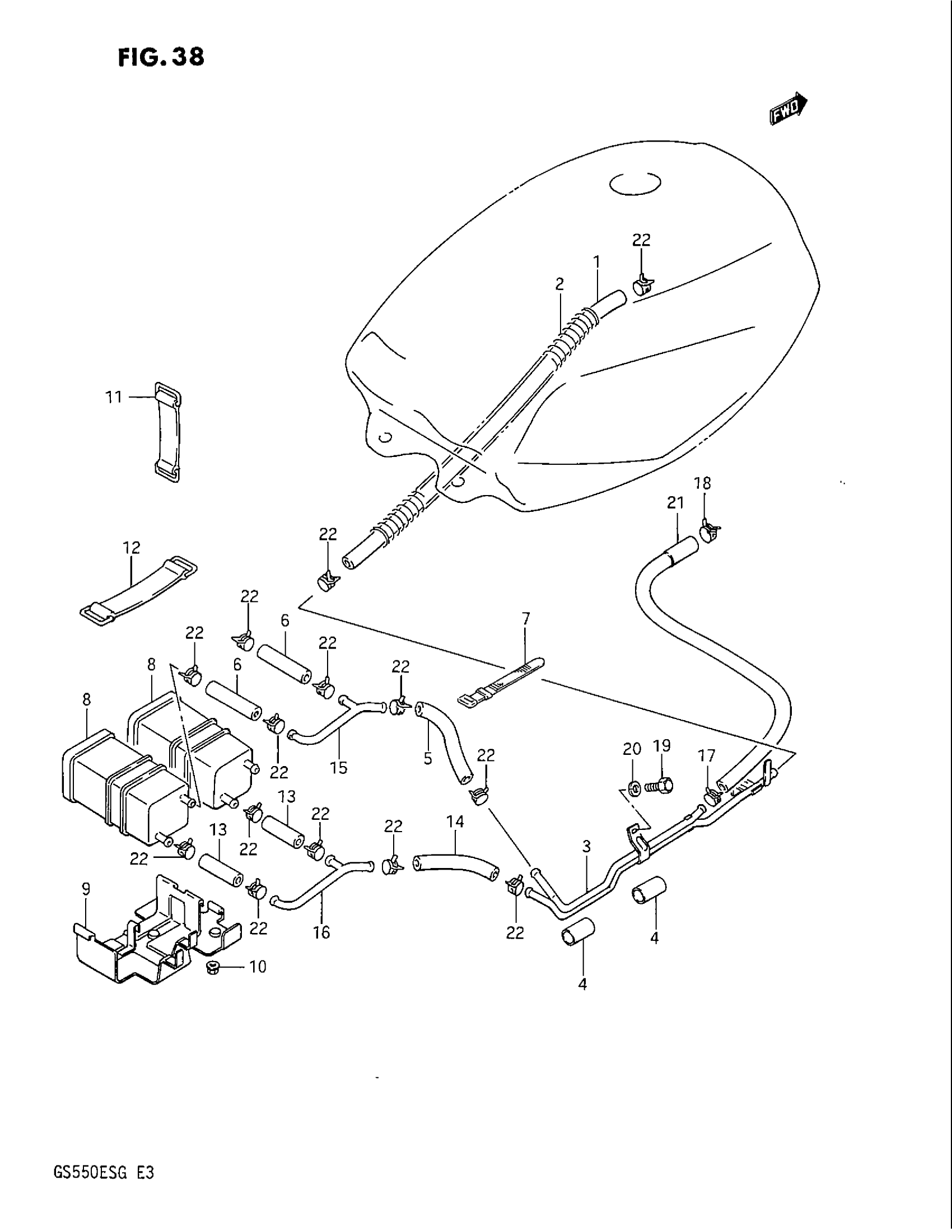

Suzuki GS550EF (1986) CANISTER (FOR MODEL F OF CALIFORNIA) Diagram

#

Description
Price

1

HOSE, CANISTER & CARB This part replaces 09343-05324.

09355-54115-00B

Unavailable

2

SPRING

09440-13027

Unavailable

3

PIPE, FUEL TANK & CANISTER

44950-43400

Unavailable

4

NO DESCRIPTION AVAILABLE This part replaces 44960-43400.

44960-43401

Unavailable

5

HOSE, CANISTER & CARB This part replaces 09343-05325.

09355-54115-00B

Unavailable

6

HOSE, JOINT PIPE & CANISTER This part replaces 09343-05317.

09343-05318

Unavailable

7

CLAMP

09407-18401

$2.07

8

CANISTER This part replaces 17210-05222.

17210-14A00

$156.07

9

PLATE, CANISTER FITTING

44880-43400

Unavailable

10

NUT This part replaces 08319-31068.

08319-31067

$2.03

11

BAND, TOOL This part replaces 09462-00073.

09462-00093

$9.24

12

BAND, NO.2

09462-00034

$4.24

13

HOSE, TANK & BREATHER VALVE This part replaces 09343-05294.

09355-54115-600

$14.59

14

HOSE, TANK & BREATHER VALVE This part replaces 09343-05274.

09355-54115-600

$14.59

15

PIPE, CANISTER JOINT, IN

44941-06A00

Unavailable

16

PIPE, CANISTER JOINT, OUT

44940-06A00

Unavailable

17

CLIP (ID:10.5,H:8)

09401-10409

$2.26

18

CLIP, NO.2

09401-11405

Unavailable

19

BOLT This part replaces 01107-06108.

01500-06107

$2.06

20

WASHER This part replaces 08322-21067.

08322-01067

$2.13

21

HOSE, CARB This part replaces 09343-05296.

09359-54111-00A

Unavailable

22

CLIP (ID:10.5,H:8) | CALIFORNIA

09401-10409

$2.26
