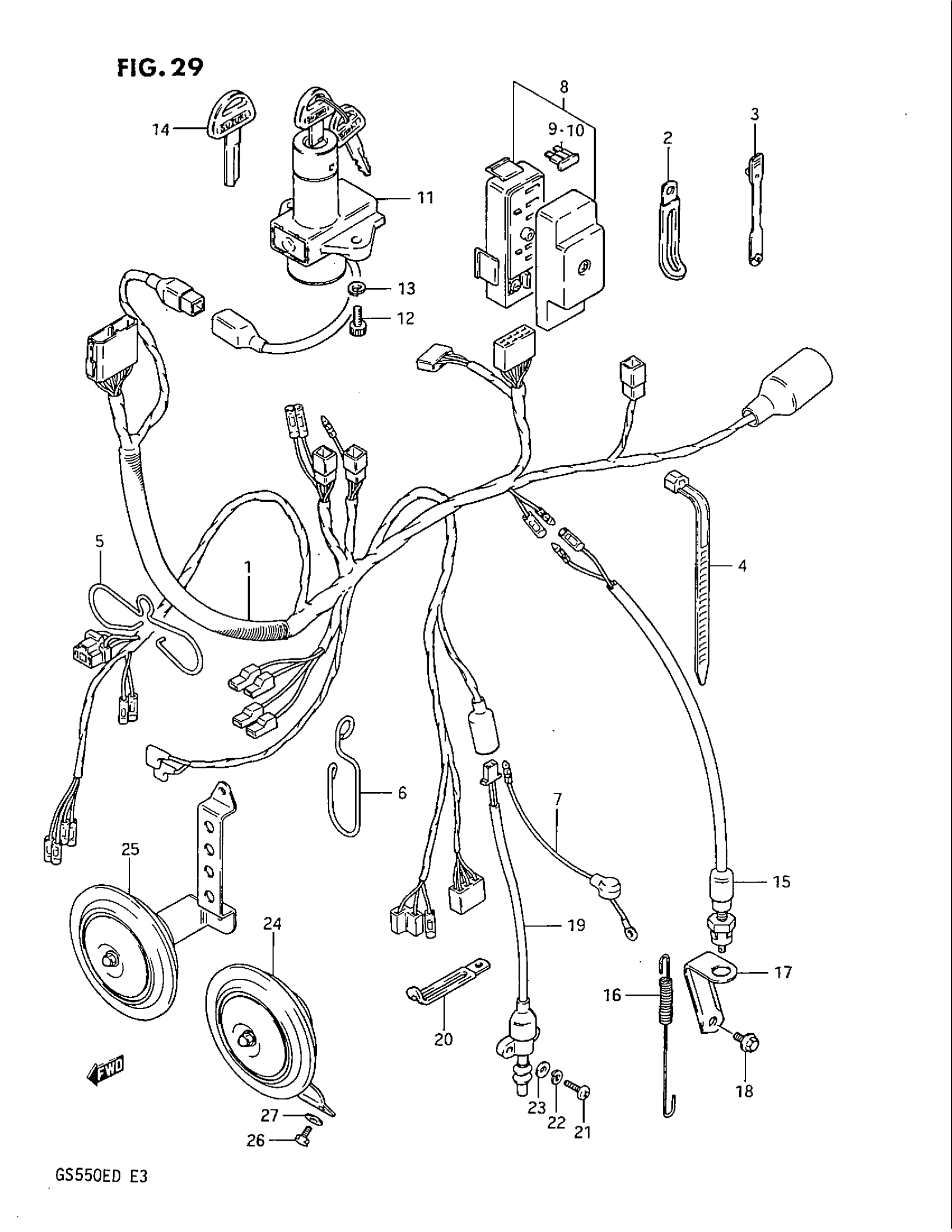

Suzuki GS550E (1983) WIRING HARNESS Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | GS550ED This part replaces 36610-43400.

36610-43401

Unavailable

1

NO DESCRIPTION AVAILABLE | GS550ESD This part replaces 36610-43450.

36610-43461

Unavailable

2

CLAMP This part replaces 09404-06412.

09404-06039

$1.74

2

CLAMP(L:80) This part replaces 09404-06415.

09404-06036

$1.74

3

CLAMP

09407-05403

$2.38

4

CLAMP (L:95)

09407-11401

$2.63

4

CLAMP (L:125)

09407-14403

$2.26

4

CLAMP (L:235)

09407-25401

$4.66

5

GUIDE | GS550ED

36618-43400

Unavailable

6

GUIDE, HARNESS | GS550ESD This part replaces 36618-49301.

36618-49302

Unavailable

7

NO DESCRIPTION AVAILABLE This part replaces 36851-43410.

36851-13A00

Unavailable

8

FUSE BOX ASSY | Includes Item(s) 9 - 10

36740-43401

Unavailable

9

FUSE (10A)

09481-10101

$2.07

10

FUSE (15A)

09481-15101

$2.53

11

SWITCH ASSY, IGNITION | GS550ED

37100-49201

Unavailable

11

NO DESCRIPTION AVAILABLE | GS550ESD This part replaces 37100-43450.

37100-43451

Unavailable

12

BOLT This part replaces 37152-47010.

07130-0616B

$2.39

13

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

14

KEY, BLANK | OPT

37146-47010

$18.39

15

SWITCH, REAR BRAKE LAMP This part replaces 37740-04572.

37740-48071

$19.18

16

SPRING

09443-06005

$3.37

17

BRACKET, BRAKE LAMP SWITCH

43251-43400

Unavailable

18

BOLT This part replaces 01517-06108.

01550-06107

$2.80

19

SWITCH, SIDE STAND WARNING This part replaces 37840-31300.

37840-31302

Unavailable

20

CLAMP(L:80) This part replaces 09404-06415.

09404-06036

$1.74

21

SCREW This part replaces 02112-05208.

02112-05207

$1.97

22

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

23

WASHER This part replaces 08322-21058.

08322-01057

$2.13

24

HORN ASSY | GS550ED

38500-43400

Unavailable

25

HORN ASSY | GS550ESD

38500-43450

Unavailable

26

BOLT This part replaces 01107-06128.

01500-06127

$1.97

27

WASHER This part replaces 08322-21068.

08322-01067

$2.13
