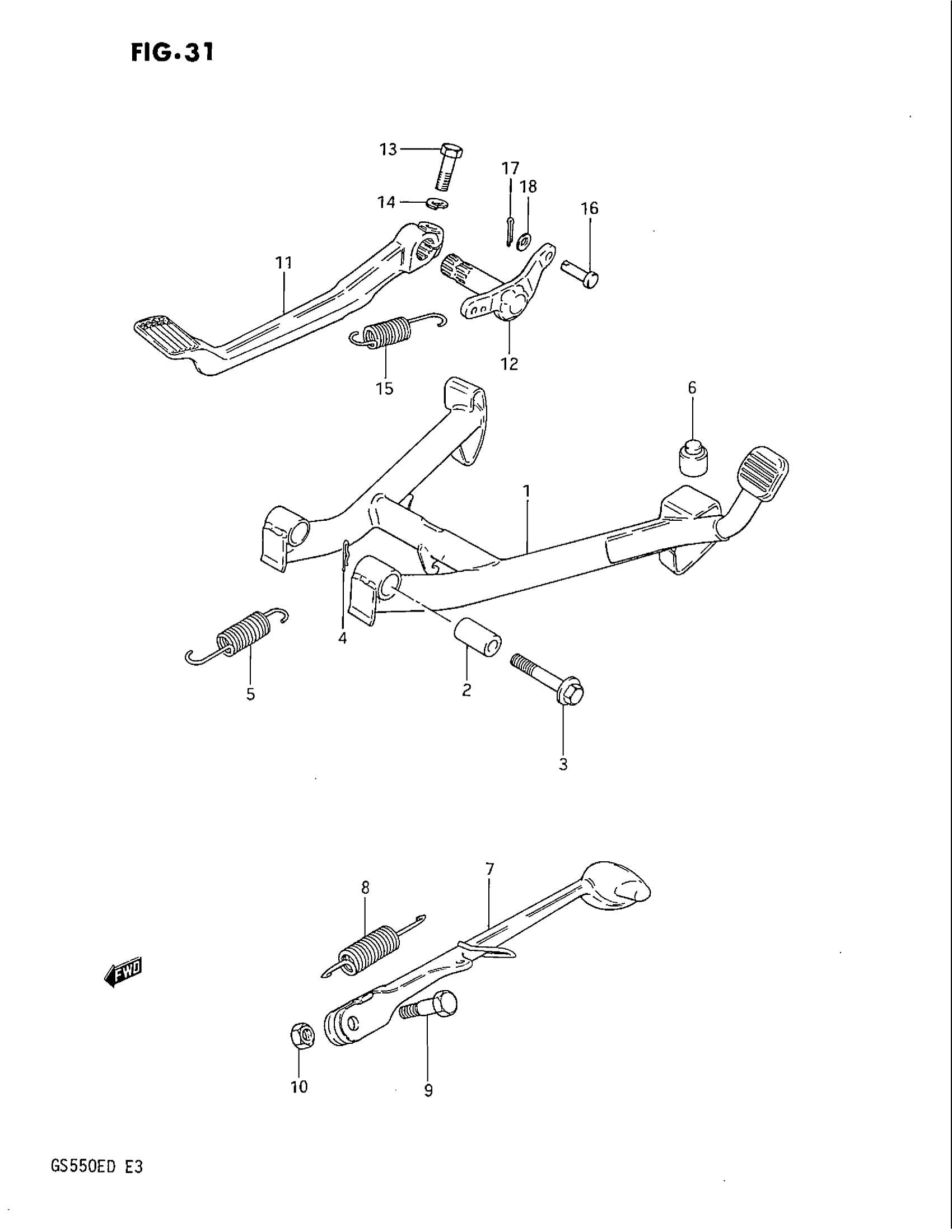

Suzuki GS550E (1983) STAND Diagram

#

Description
Price

1

STAND, CENTER

42100-43400

Unavailable

2

SPACER

09180-10084

Unavailable

3

BOLT

09101-10028

Unavailable

4

CLIP This part replaces 09385-10001.

09385-10005

$1.56

5

SPRING

09443-18012

Unavailable

6

CUSHION

09321-10001

$2.61

7

STAND, PROP (SILVER) This part replaces 42310-43401-737.

42310-43401-13L

Unavailable

8

SPRING

09443-15017

Unavailable

9

BOLT This part replaces 09111-10019.

09111-10047

$4.11

10

NUT This part replaces 08310-22108.

08310-00107

$2.19

11

PEDAL, BRAKE

43111-43401

Unavailable

12

ARM, BRAKE PEDAL ROD

43120-43400

Unavailable

13

BOLT This part replaces 01527-08258.

01550-08257

$2.81

14

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

15

SPRING

09443-14002

$2.12

16

PIN

09200-06029

Unavailable

17

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

18

WASHER This part replaces 08322-21068.

08322-01067

$2.13
