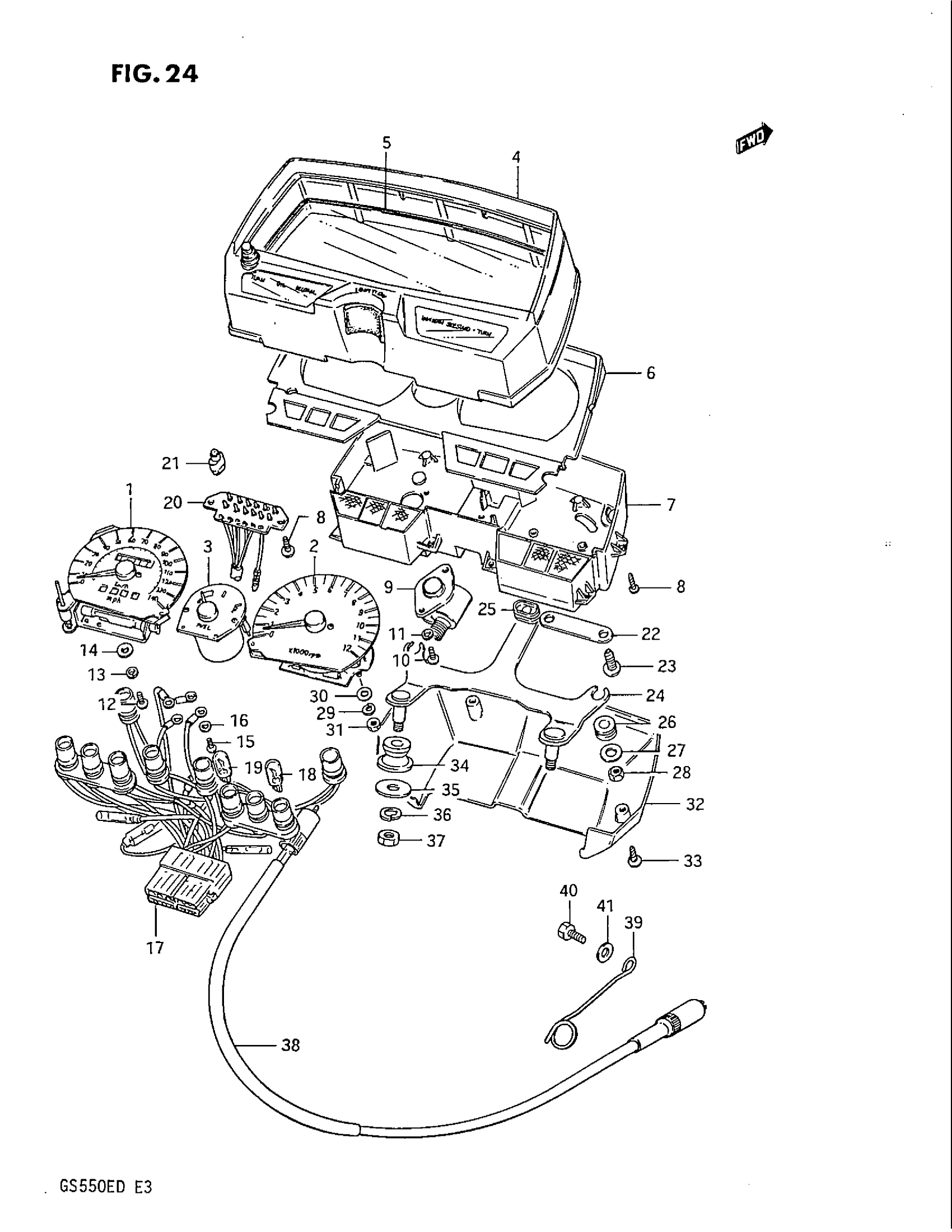

Suzuki GS550E (1983) SPEEDOMETER - TACHOMETER (GS550ESD) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 34120-43460.

34120-43450

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 34220-43460.

34220-43402

Unavailable

3

FUELMETER

34320-43410

Unavailable

4

HOOD, METER

34150-43410

Unavailable

5

GLASS

34112-43410

Unavailable

6

PLATE, WINDOW

34153-43410

Unavailable

7

CASE, METER

34111-43400

Unavailable

8

NO DESCRIPTION AVAILABLE This part replaces 36456-34510.

09132-03501

Unavailable

9

GEAR BOX

34131-43400

Unavailable

10

SCREW This part replaces 02112-04108.

02112-04107

$1.55

11

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

12

SCREW This part replaces 02112-03108.

02112-03107

$1.49

13

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

14

WASHER This part replaces 08322-21038.

08322-01037

$1.93

15

SCREW This part replaces 02112-03068.

02112-0306B

$1.59

16

WASHER This part replaces 08322-21038.

08322-01037

$1.93

17

SOCKER

34170-43400

Unavailable

18

BULB (12V,3.4W)

09471-12082

Unavailable

19

BULB (12V,1.7W)

09471-12077

$3.55

20

SOCKET, GEAR INDICATOR

36453-43410

Unavailable

21

BULB

09471-12071

$7.20

22

PLATE

34182-43400

Unavailable

23

SCREW This part replaces 03211-04108.

03211-0410B

$1.93

24

BRACKET, METER

34950-43410

Unavailable

25

CUSHION, NO.1

34995-45720

Unavailable

26

CUSHION, METER NO.1 This part replaces 34996-45720.

34189-32B00

$5.78

27

WASHER (5.5X16X1.2) This part replaces 34181-30520.

09160-05037

$1.49

28

NUT This part replaces 08310-22058.

08310-00057

$1.84

29

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

30

WASHER

34181-43400

Unavailable

31

NUT This part replaces 08310-11048.

08310-00047

$2.23

32

COVER, LOWER

34193-43400

Unavailable

33

SCREW

03111-04125

Unavailable

34

CUSHION

34956-31001

$4.37

35

WASHER, EXHAUST SUPPORT This part replaces 09160-08057.

09160-08135

$2.35

36

LOCK WASHER This part replaces 08321-21085.

08321-0108A

$1.84

37

NUT This part replaces 08310-11085.

08310-0008A

$1.84

38

CABLE, SPEEDOMETER This part replaces 34910-38420.

34910-38430

Unavailable

39

GUIDE, METER CABLE

34938-45100

$6.57

40

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

41

WASHER This part replaces 08322-21068.

08322-01067

$2.13
