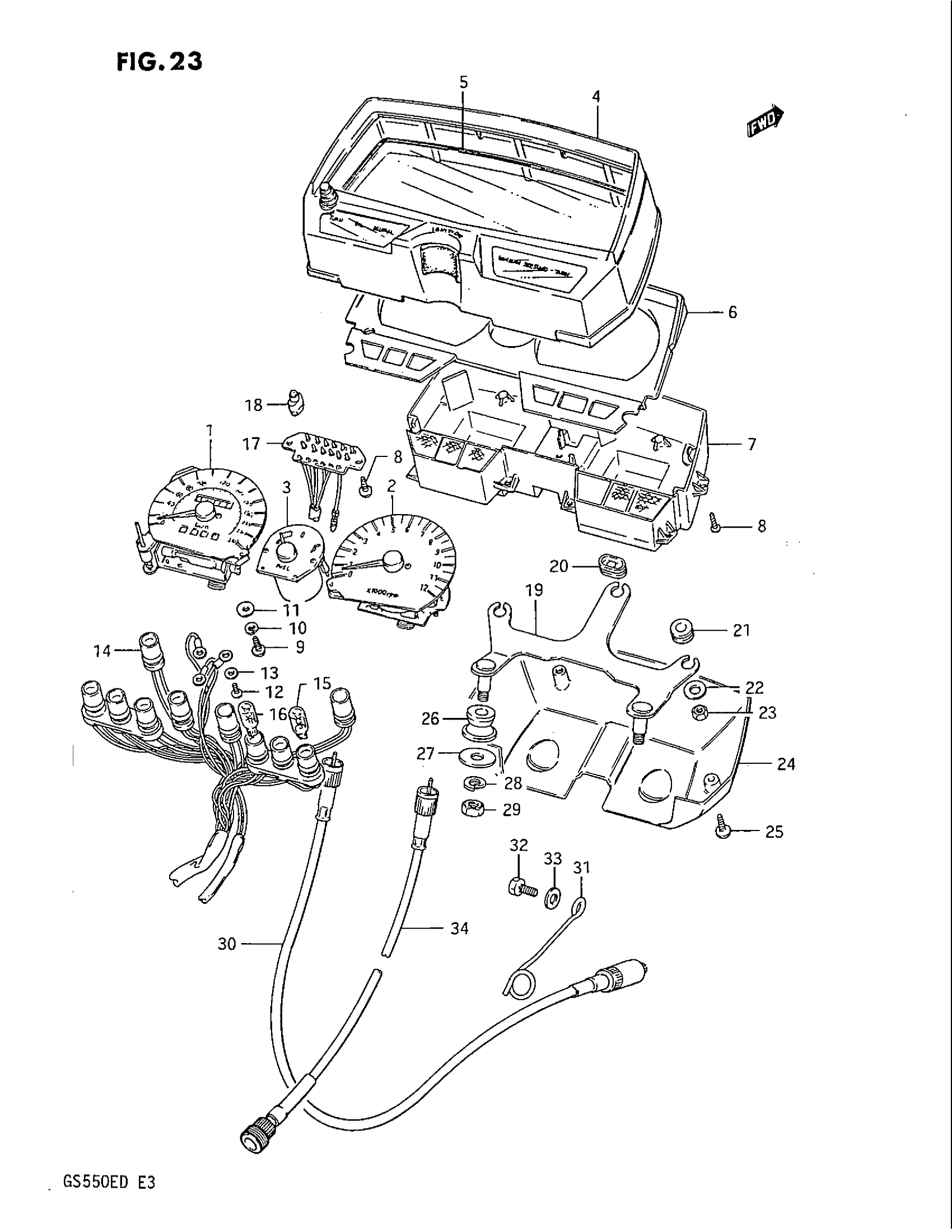

Suzuki GS550E (1983) SPEEDOMETER - TACHOMETER (GS550ED) Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO) This part replaces 34120-43430.

34120-43431

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 34220-43480.

34220-43411

Unavailable

3

FUELMETER

34320-43410

Unavailable

4

HOOD, METER

34150-43410

Unavailable

5

GLASS

34112-43410

Unavailable

6

PLATE, WINDOW

34153-43410

Unavailable

7

CASE, METER

34111-43410

Unavailable

8

NO DESCRIPTION AVAILABLE This part replaces 36456-34510.

09132-03501

Unavailable

9

SCREW This part replaces 02112-03108.

02112-03107

$1.49

10

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

11

WASHER This part replaces 08322-21038.

08322-01037

$1.93

12

SCREW This part replaces 02112-03068.

02112-0306B

$1.59

13

WASHER This part replaces 08322-21038.

08322-01037

$1.93

14

SOCKET

34170-43410

Unavailable

15

BULB (12V,3.4W)

09471-12082

Unavailable

16

BULB (12V,1.7W)

09471-12077

$3.55

17

SOCKET, GEAR INDICATOR

36453-43410

Unavailable

18

BULB

09471-12071

$7.20

19

BRACKET, METER

34950-43410

Unavailable

20

CUSHION, NO.1

34995-45720

Unavailable

21

CUSHION, METER NO.1 This part replaces 34996-45720.

34189-32B00

$5.78

22

WASHER (5.5X16X1.2) This part replaces 34181-30520.

09160-05037

$1.49

23

NUT This part replaces 08310-22058.

08310-00057

$1.84

24

COVER, LOWER

34193-43410

Unavailable

25

SCREW

03111-04125

Unavailable

26

CUSHION

34956-31001

$4.37

27

WASHER, EXHAUST SUPPORT This part replaces 09160-08057.

09160-08135

$2.35

28

LOCK WASHER This part replaces 08321-21085.

08321-0108A

$1.84

29

NUT This part replaces 08310-11085.

08310-0008A

$1.84

30

CABLE ASSY,SPEE This part replaces 34910-43410.

34910-09D10

$46.45

31

GUIDE, METER CABLE

34938-45100

$6.57

32

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

33

WASHER This part replaces 08322-21068.

08322-01067

$2.13

34

CABLE, TACHOMETER

34940-44311

$26.88
