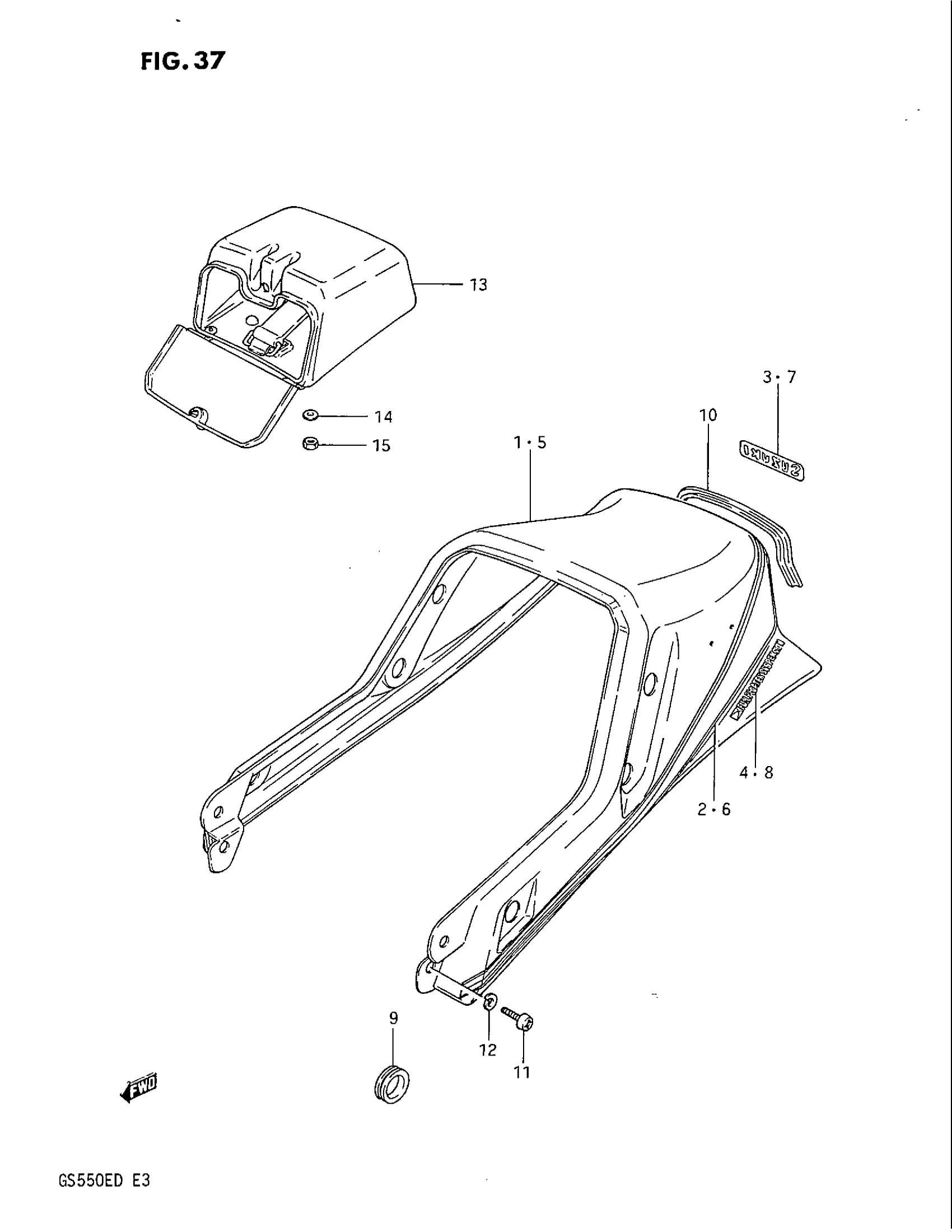

Suzuki GS550E (1983) SEAT TAIL COVER Diagram

#

Description
Price

1

TAIL COVER, SEAT

45510-43410-88D

Unavailable

2

TAPE SET, SEAT TAIL COVER

68160-43400-93L

Unavailable

3

EMBLEM,"SUZUKI" This part replaces 68166-31300-064.

68166-31310-064

Unavailable

4

EMBLEM, FULL FROATER

68235-04700-91R

Unavailable

5

NO DESCRIPTION AVAILABLE This part replaces 45510-43410-88M.

45511-43410

Unavailable

6

TAPE SET, SEAT TAIL COVER

68160-43400-93M

Unavailable

7

EMBLEM,"SUZUKI" This part replaces 68166-31300-064.

68166-31310-064

Unavailable

8

EMBLEM, FULL FROATER

68235-04700-91R

Unavailable

9

GROMMET

45522-04700

Unavailable

10

BRIND, SEAT TAIL COVER This part replaces 45562-43400.

45562-43401

Unavailable

11

SCREW This part replaces 02112-06168.

02112-06167

$1.49

12

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

13

BOX, SEAT TAIL

94990-43400

Unavailable

14

WASHER

09169-06010

$2.60

15

NUT This part replaces 08319-31068.

08319-31067

$2.03
