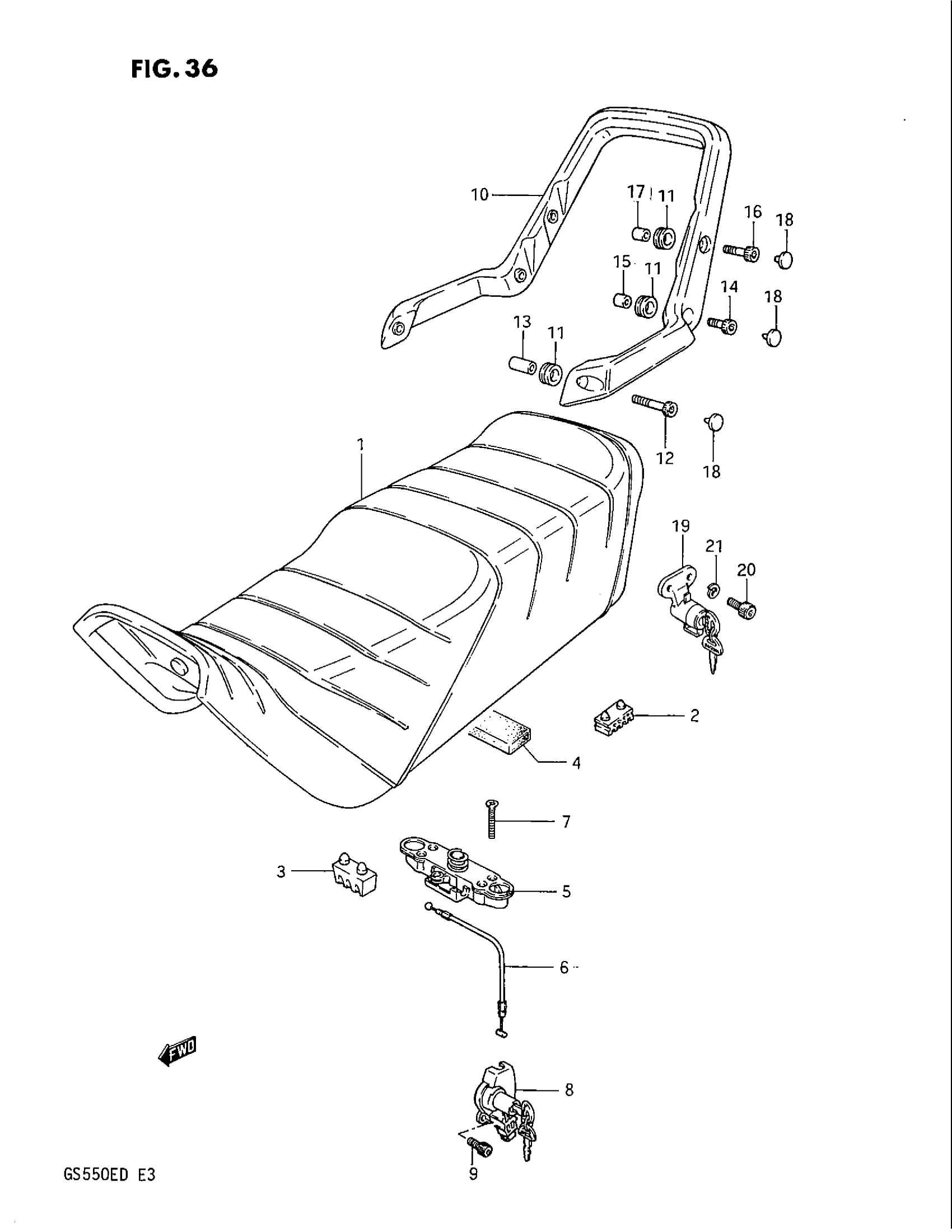

Suzuki GS550E (1983) SEAT Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | FOR 88D This part replaces 45100-43400-53L.

45100-43421-48H

Unavailable

1

NO DESCRIPTION AVAILABLE | FOR 88M; Includes Item(s) 2 - 4 This part replaces 45100-43400-48H.

45100-43421-48H

Unavailable

2

CUSHION

45149-31300

$3.56

3

CUSHION

45149-45330

$3.89

4

HOLDER, BATTERY STOP

94982-29400

$2.28

5

LOCK ASSY, SEAT STRIKER This part replaces 45220-13600.

45220-13601

$80.52

6

CABLE, SEAT LOCK This part replaces 45280-43400.

45280-43510

Unavailable

7

SCREW This part replaces 02122-06306.

02122-0630B

$2.06

8

LOCK SET, SEAT This part replaces 95700-43400-KEY.

95700-43820

Unavailable

9

BOLT This part replaces 09106-06036.

07130-0616B

$2.39

10

HANDLE, PILLION RIDER

46210-43400

Unavailable

11

GROMMET This part replaces 45522-43400.

45522-43401

Unavailable

12

BOLT This part replaces 09106-08037.

07130-0855B

$4.77

13

SPACER

46219-43400

Unavailable

14

BOLT This part replaces 09106-08042.

07130-0835B

$4.60

15

SPACER

46219-43420

Unavailable

16

BOLT This part replaces 09106-08039.

07130-0840B

$3.91

17

SPACER This part replaces 46219-43410.

46219-43411

Unavailable

18

CAP This part replaces 09250-06008.

09250-06016

$1.96

19

LOCK ASSY, HELMET

95700-43410-KEY

Unavailable

20

BOLT This part replaces 09106-06036.

07130-0616B

$2.39

21

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
