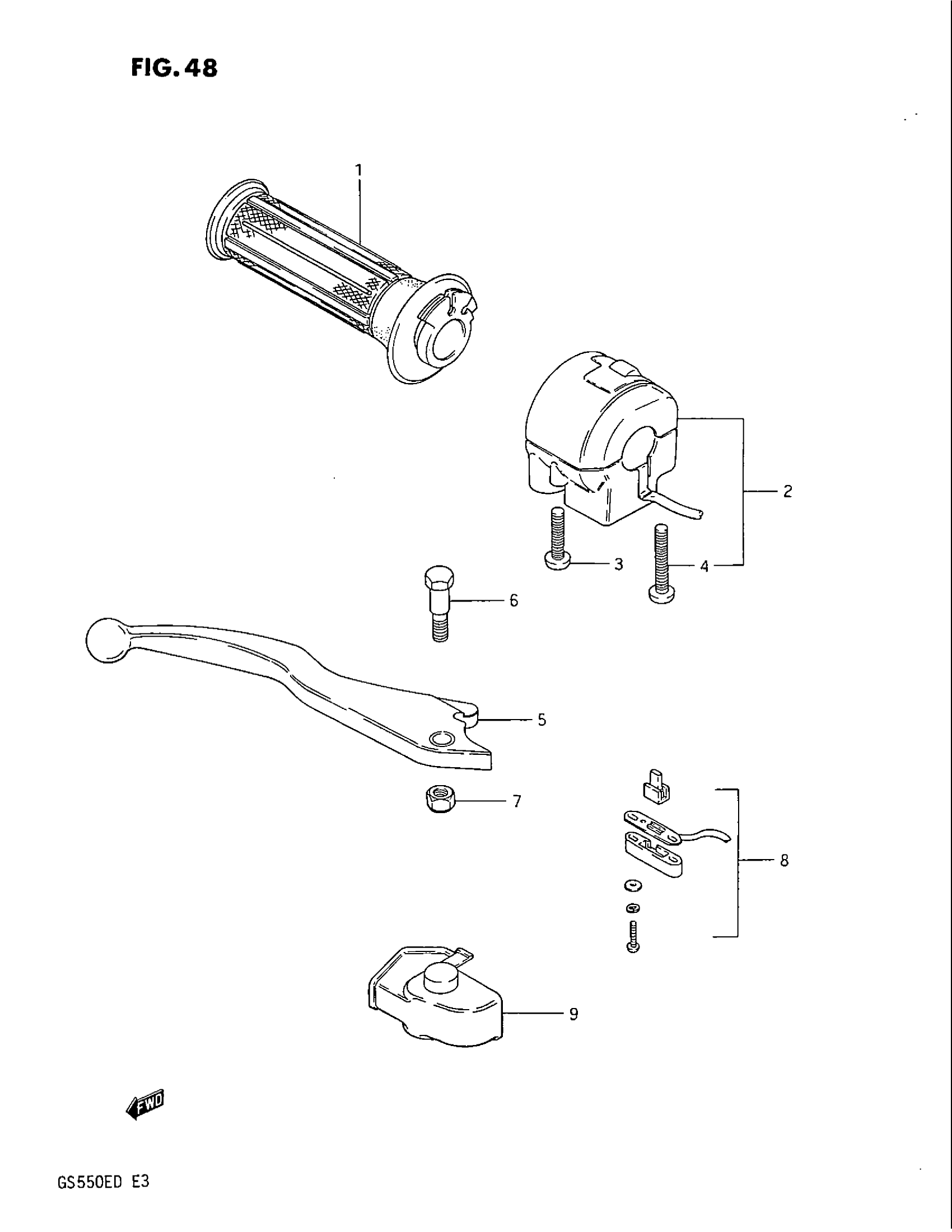

Suzuki GS550E (1983) RIGHT HANDLE SWITCH (GS550ESD) Diagram

#

Description

Price

1

GRIP, THROTTLE This part replaces 57110-49500.

57110-49501

$34.00

2

NO DESCRIPTION AVAILABLE This part replaces 37200-34530.

37200-345V0

Unavailable

2

SWITCH ASSY, HANDLE (OPT) | WITH LIGHT SWITCH; Includes Item(s) 3 - 4 This part replaces 37200-31310.

37200-34510

Unavailable

3

SCREW This part replaces 02112-05258.

02112-05257

$1.49

4

SCREW This part replaces 02112-05358.

02112-05357

$1.49

5

LEVER, BRAKE

57420-45500

Unavailable

6

BOLT

57431-49100

Unavailable

7

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

8

SWITCH ASSY, ST This part replaces 57460-49300.

57460-45500

$35.23

9

COVER, BRAKE LEVER

57341-33400

Unavailable
