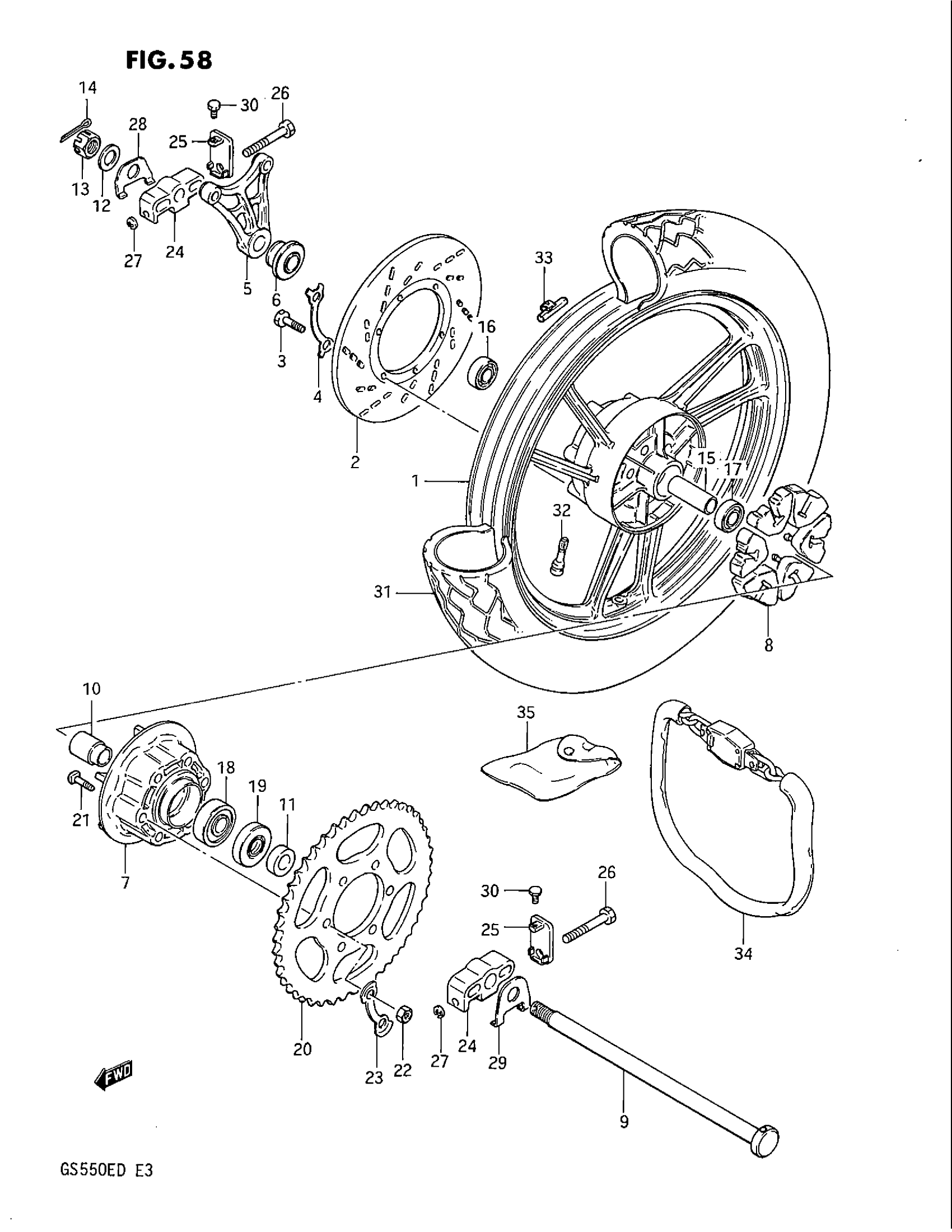

Suzuki GS550E (1983) REAR WHEEL Diagram

#

Description
Price

1

WHEEL, REAR (18XMT2.15) BLACK This part replaces 64111-33400-291.

64111-33401-291

Unavailable

2

DISK, REAR BRAKE

64211-33250

Unavailable

3

BOLT

09100-08140

$2.10

4

WASHER

09169-08028

Unavailable

5

BRACKET

69721-43400

Unavailable

6

SPACER, BRACKET This part replaces 64740-33200.

64740-33201

Unavailable

7

DRUM, SPROCKET

64611-33200

Unavailable

8

SHOCK ABSORBER, DRUM

64651-11300

$13.62

9

AXLE, REAR

64711-43400

Unavailable

10

RETAINER, DRUM

64733-34000

Unavailable

11

SPACER, LH

09180-17075

Unavailable

12

WASHER This part replaces 08322-11168.

08322-01167

$2.10

13

NUT

09141-16001

Unavailable

14

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49

15

SPACER, BEARING

09180-17072

Unavailable

16

BEARING, RH

08143-63037

$22.58

17

BEARING, LH

08143-62037

$18.47

18

BEARING

08113-62057

$25.60

19

SEAL,OIL(30.5X5 This part replaces 09285-30001.

09285-30003

$23.97

20

SPROCKET, REAR (NT:48)

64511-47610

Unavailable

21

BOLT This part replaces 09119-10002.

09105-10001

$2.87

22

NUT This part replaces 09140-10026.

09140-10026-XC0

$1.70

23

WASHER

09169-10007

Unavailable

24

ADJUSTER, CHAIN

61411-15500

Unavailable

25

NO DESCRIPTION AVAILABLE This part replaces 61421-15500.

61421-15501

Unavailable

26

BOLT, ADJUSTER

61431-16700

Unavailable

27

E RING This part replaces 08332-11046.

08332-1104A

$1.49

28

WASHER, RH

64713-43400

Unavailable

29

WASHER, LH

64712-43401

Unavailable

30

SCREW

09128-05004

Unavailable

31

TIRE, REAR (110/90-18-61H) | DUNLOP

65100-43450

Unavailable

32

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

$9.25

33

BALANCER, WHEEL NO.2 This part replaces 55411-45100.

55412-17G00

$7.05

33

BALANCER (30G)

55412-45100

Unavailable

33

BALANCER (10G) This part replaces 55413-45100.

55411-00A00

$1.49

34

NO DESCRIPTION AVAILABLE This part replaces 94140-15500-KEY.

94100-27821

Unavailable

35

BAG, CHAIN LOCK

94141-31301

Unavailable
