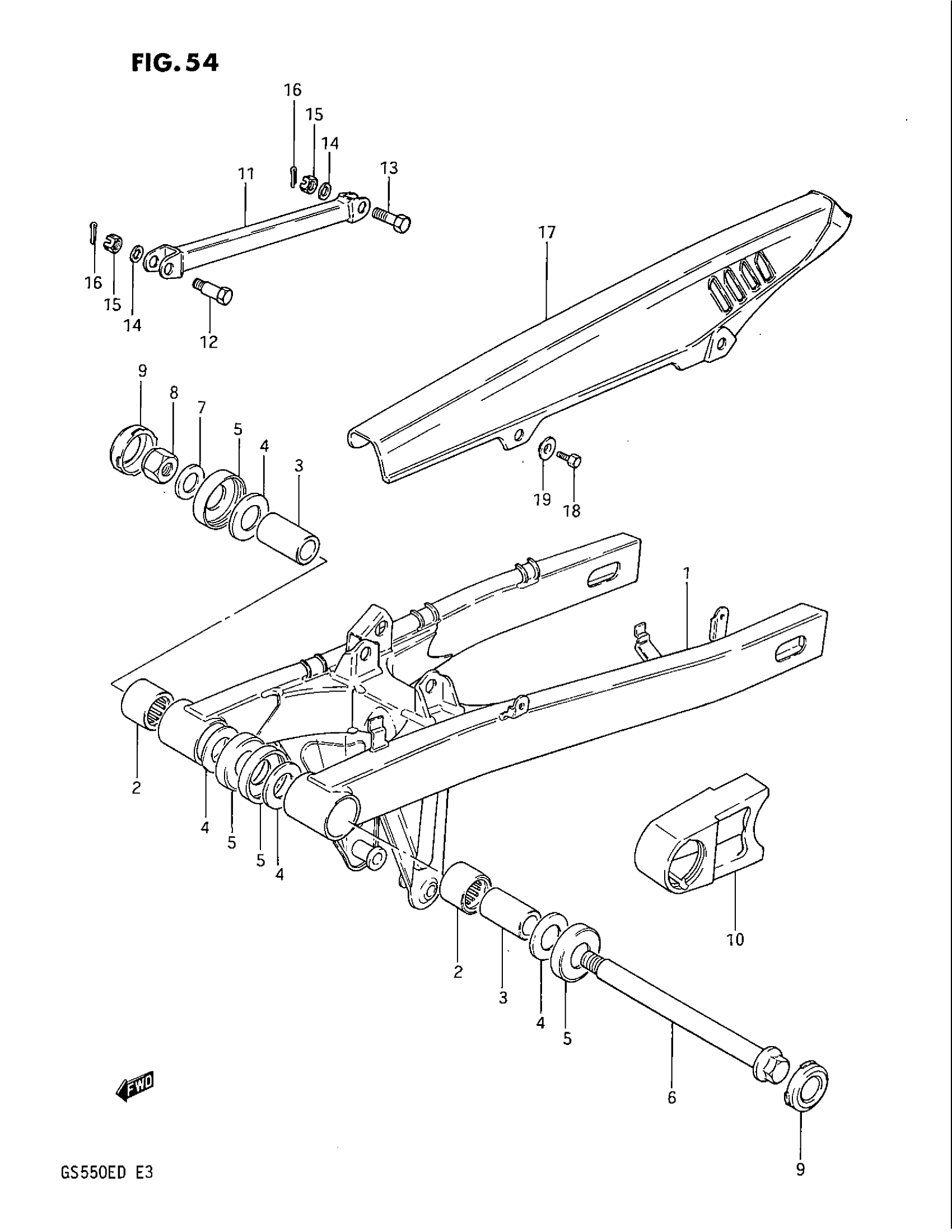

Suzuki GS550E (1983) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM SET (SELVER) | Includes Item(s) 2 This part replaces 61000-43400-737.

61000-43400-13L

Unavailable

2

BEARING

09263-25024

$25.92

3

SPACER

61251-43400

Unavailable

4

WASHER

08211-16381

$2.42

5

COVER, DUST SEAL

61262-49000

Unavailable

6

SHAFT, PIVOT

61211-43400

Unavailable

7

WASHER This part replaces 08322-11148.

08322-01147

$1.91

8

NUT This part replaces 08319-21148.

08319-2114A

$3.96

9

CAP, PIVOT

61222-43400

$5.24

10

BUFFER, CHAIN DEFENSE This part replaces 61273-43400.

61273-43401

Unavailable

11

TORQUE LINK, REAR (BLACK)

64310-33400-291

Unavailable

12

BOLT,10X39 This part replaces 09111-10011.

09111-10022-XC0

Unavailable

13

BOLT, REAR

09101-10031

Unavailable

14

WASHER This part replaces 08322-11108.

08322-01107

$2.15

15

NUT This part replaces 08314-41108.

08314-4010B

$2.50

16

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

17

CHAIN CASE

61311-43400

Unavailable

18

BOLT This part replaces 01107-06108.

01500-06107

$2.06

19

WASHER, FRONT

09169-06026

$2.20
