1983 Suzuki GS550E Rear Fender Diagram

← All diagrams

Find the part on the Rear Fender diagram for your 1983 Suzuki GS550E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

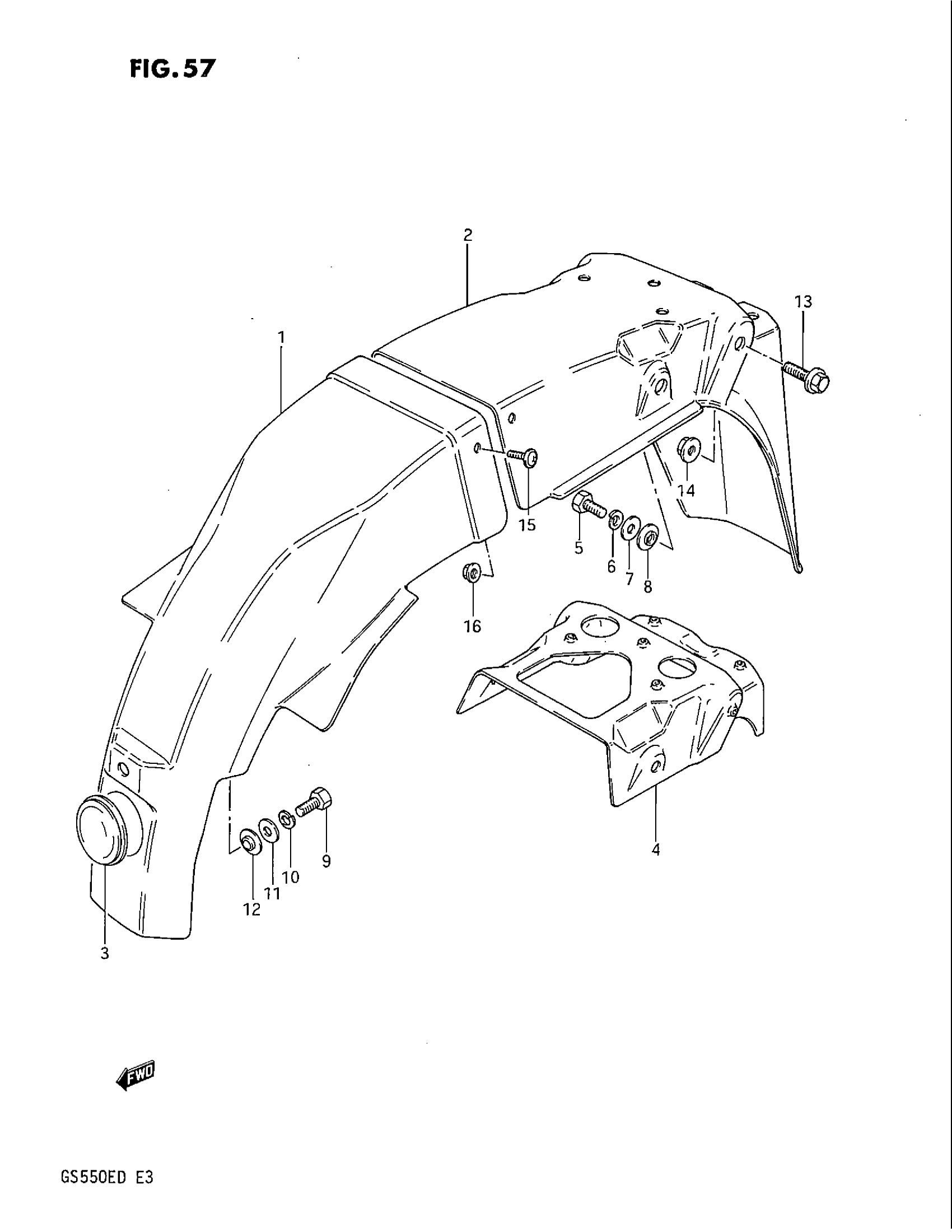

1983 Suzuki GS550E Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY, REAR FENDER FRONT

63112-43400

1
Out of stock

2

FENDER, REAR

63113-43400

1
Out of stock

3

GROMMET

63118-43400

1
Out of stock

4

REINFORCEMENT

63121-43400

1
Out of stock

5

2

$2.68

In stock

6

2

$2.28

In stock

7

WASHER This part replaces 08322-11088.

08322-01087

2
Out of stock

8

NO DESCRIPTION AVAILABLE This part replaces 09169-08026.

09169-08026-XC0

2
Out of stock

9

1

$2.10

In stock

10

1

$2.28

In stock

11

.WASHER This part replaces 08322-11068.

08322-0106B

1
Out of stock

12

1

$1.90

In stock

13

2

$2.92

In stock

14

NUT This part replaces 08319-31088.

08319-3108A

2
Out of stock

15

SCREW This part replaces 02142-06168.

02142-06167

2
Out of stock

16

2

$2.18

In stock
