1983 Suzuki GS550E Frame Cover Diagram

← All diagrams

Find the part on the Frame Cover diagram for your 1983 Suzuki GS550E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

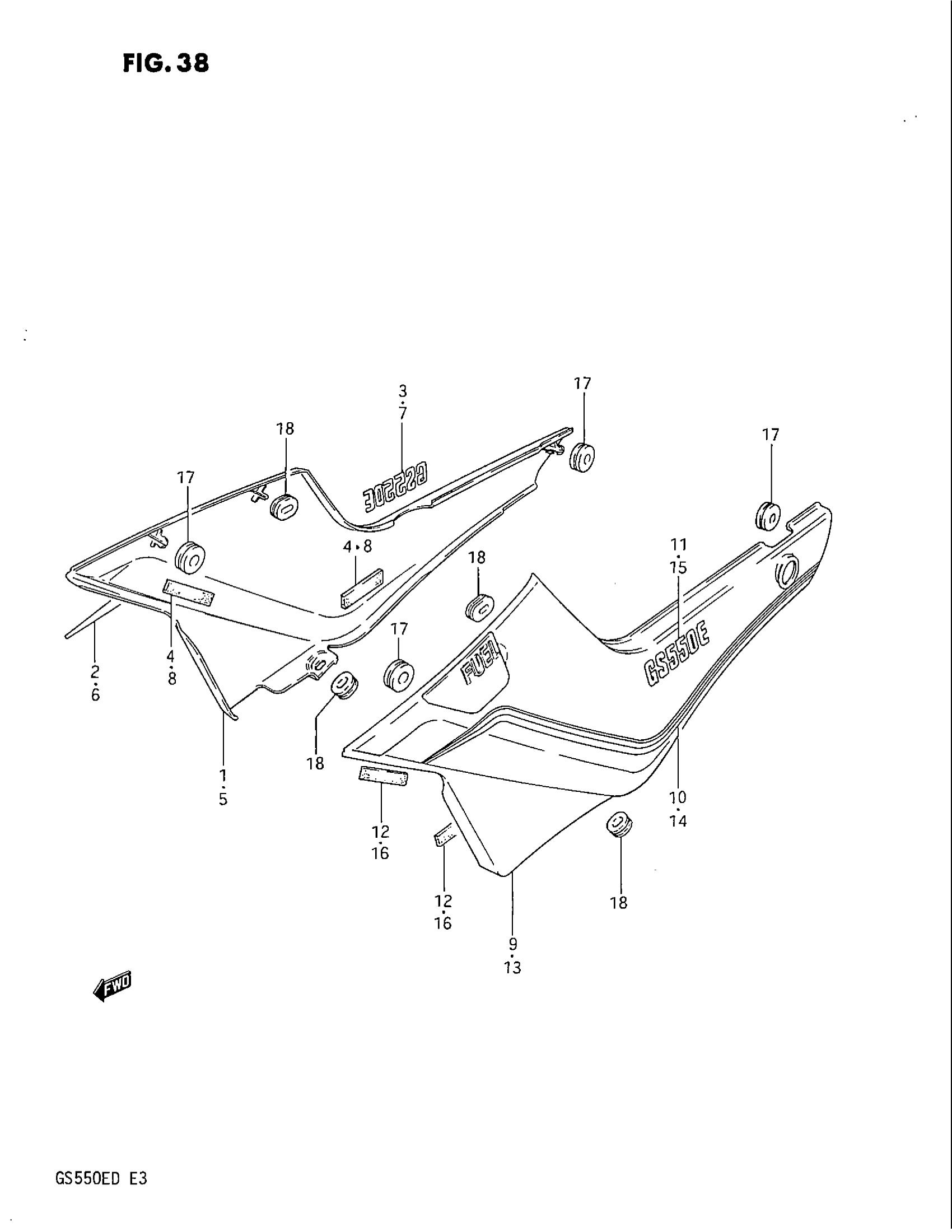

1983 Suzuki GS550E Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER,FRAME RH | Includes Item(s) 2 - 4 This part replaces 47100-43830-88D.

47110-43401

1
Out of stock

2

TAPE SET, FRAME COVER RH

68130-43400-93L

1
Out of stock

3

EMBLEM

68131-43420-73F

1
Out of stock

4

CUSHION

47113-49200

2
Out of stock

5

COVER,FRAME RH | Includes Item(s) 6 - 8 This part replaces 47100-43830-88M.

47110-43401

1
Out of stock

6

TAPE SET, FRAME COVER RH

68130-43400-93M

1
Out of stock

7

EMBLEM

68131-43420-80U

1
Out of stock

8

CUSHION

47113-49200

2
Out of stock

9

NO DESCRIPTION AVAILABLE | Includes Item(s) 10 - 12 This part replaces 47200-43830-88D.

47210-43401

1
Out of stock

10

TAPE SET, FRAME COVER LH

68140-43400-93L

1
Out of stock

11

EMBLEM

68131-43420-73F

1
Out of stock

12

CUSHION

47113-49200

2
Out of stock

13

NO DESCRIPTION AVAILABLE | Includes Item(s) 14 - 16 This part replaces 47200-43830-88M.

47210-43401

1
Out of stock

14

TAPE SET, FRAME COVER LH

68140-43400-93M

1
Out of stock

15

EMBLEM

68131-43420-80U

1
Out of stock

16

CUSHION

47113-49200

2
Out of stock

17

CUSHION

09320-08018

4
Out of stock

18

CUSHION This part replaces 09320-05006.

09320-06504

4
Out of stock
