1983 Suzuki GS550E Rear Combination Lamp Diagram

← All diagrams

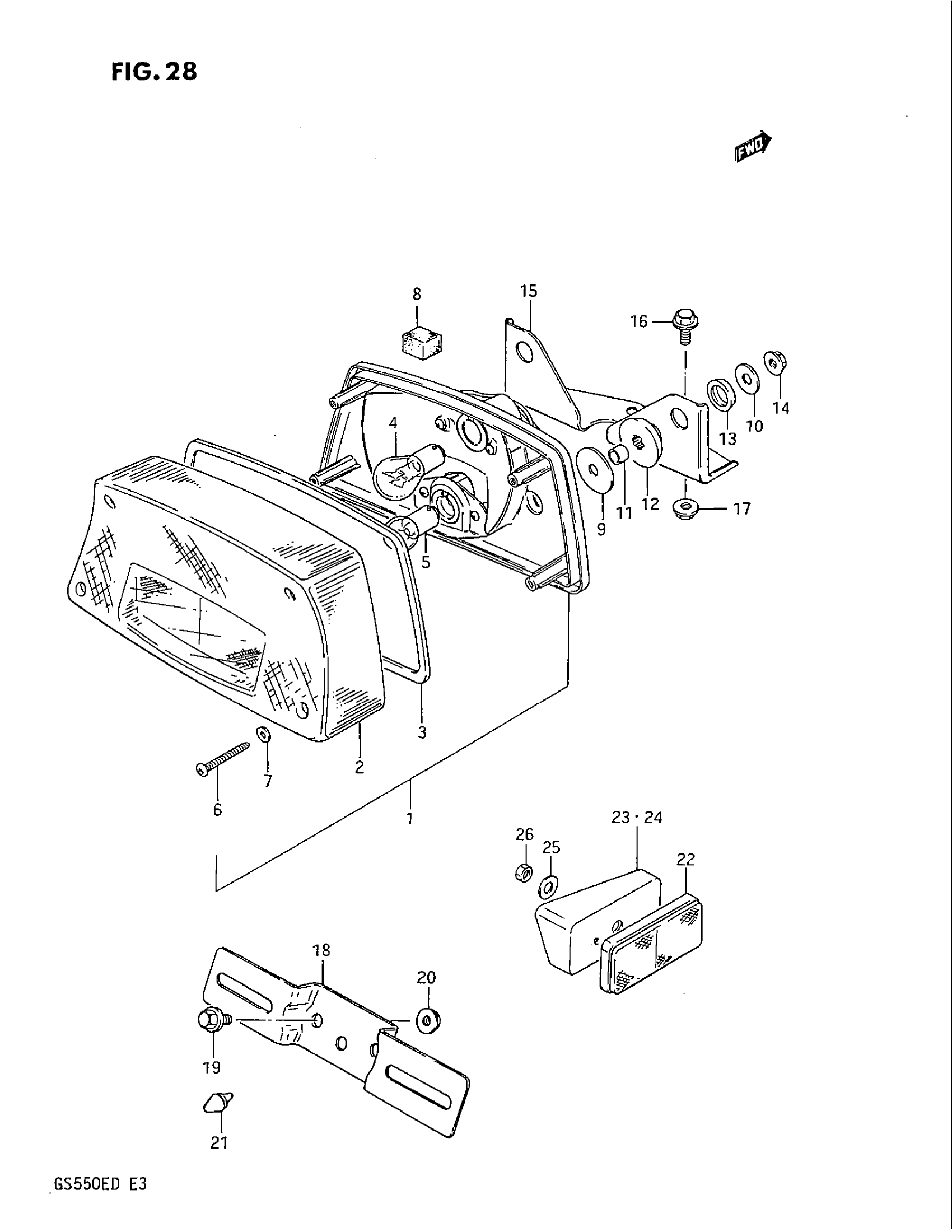

Find the part on the Rear Combination Lamp diagram for your 1983 Suzuki GS550E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS550E Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, REAR COMBINATION | Includes Item(s) 2 - 8 This part replaces 35710-43430.

35710-43431

1
Out of stock

2

LENS

35712-43430

1
Out of stock

3

GASKET

35713-43410

1
Out of stock

4

BULB (12V,32/3CP)

09471-12035

1
Out of stock

5

BULB (12V, BW) This part replaces 09471-12037.

09471-12141

1
Out of stock

6

SCREW This part replaces 03211-04256.

03211-0425B

4
Out of stock

7

GASKET

35627-43010

4

$2.65

In stock

8

RUBBER This part replaces 35733-06400.

45562-44410

1
Out of stock

9

WASHER (6.5X30X1.2)

09160-06071

2
Out of stock

10

WASHER This part replaces 09160-06012.

09160-06054

2
Out of stock

11

SPACER,7.2X10X1 This part replaces 09180-06006.

09180-07019

2
Out of stock

12

CUSHION

09320-09012

2
Out of stock

13

CUSHION

09320-14010

2
Out of stock

14

NUT This part replaces 08316-26068.

08316-2006A

2
Out of stock

15

BRACKET, TAIL LAMP This part replaces 35726-43400.

35726-43401

1
Out of stock

16

BOLT This part replaces 01517-06128.

01550-06127

3
Out of stock

17

NUT This part replaces 08316-26068.

08316-2006A

3
Out of stock

18

BRACKET, LICENSE PLATE This part replaces 35927-43430.

35927-27A30

1
Out of stock

19

BOLT This part replaces 01517-06128.

01550-06127

2
Out of stock

20

NUT This part replaces 08316-26068.

08316-2006A

2
Out of stock

21

CUSHION, LICENCE PLATE

09321-06023

1
Out of stock

22

NO DESCRIPTION AVAILABLE This part replaces 35970-43430.

35970-02130

2
Out of stock

23

SPACER, RH

35977-43430

1
Out of stock

24

SPACER, LH

35978-43430

1
Out of stock

25

WASHER

09160-05013

2
Out of stock

26

NUT This part replaces 08310-11058.

08310-00057

2
Out of stock
