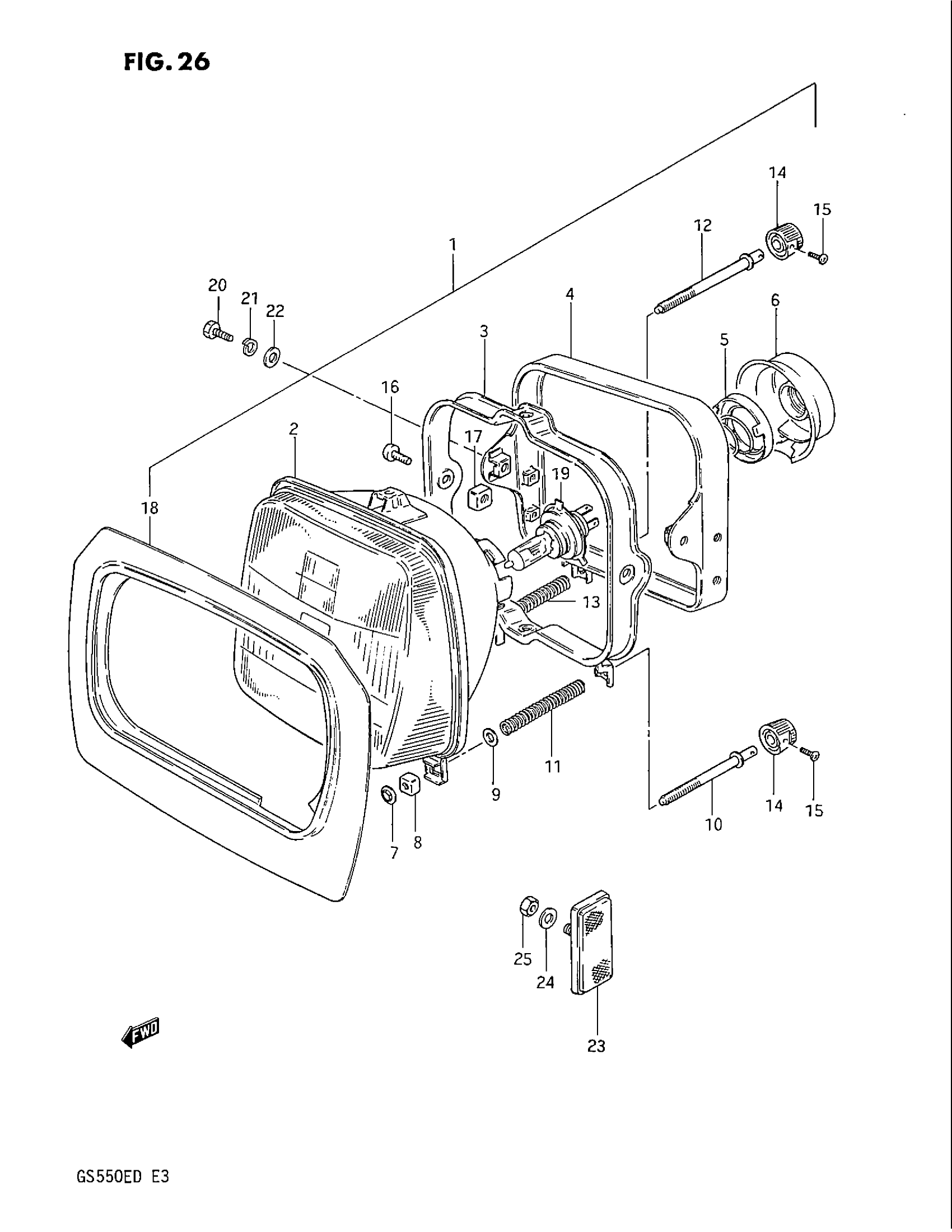

Find the part on the Headlamp diagram for your 1983 Suzuki GS550E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS550E Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY | Includes Item(s) 2 - 18

35100-49530-999

1
Out of stock

2

UNIT

35121-49530

1
Out of stock

3

MOUNTING RING

35130-49500

1
Out of stock

4

HOUSING

35141-49500

1
Out of stock

5

HOLDER, BULB

35136-49200

1
Out of stock

6

1

$19.03

In stock

7

2

$2.38

In stock

8

NUT

35152-49500

2
Out of stock

9

NO DESCRIPTION AVAILABLE This part replaces 35157-49320.

09160-06073

2
Out of stock

10

ADJUST SCREW, RH This part replaces 35151-49500.

35151-49320

1
Out of stock

11

SPRING, LH

35154-49500

1
Out of stock

12

ADJUST SCREW, RH

35151-49320

1
Out of stock

13

SPRING

35154-49320

1
Out of stock

14

NO DESCRIPTION AVAILABLE This part replaces 35161-49320.

35136-49331

2
Out of stock

15

SCREW This part replaces 02112-03108.

02112-03107

2
Out of stock

16

SCREW This part replaces 02112-05128.

02112-05127

4
Out of stock

17

NUT

35135-45900

4
Out of stock

18

SHADE

35129-49500

1
Out of stock

19

1

$31.54

In stock

20

4

$2.10

In stock

21

4

$2.28

In stock

22

4

$1.84

In stock

24

2

$2.33

In stock

25

2

$1.97

In stock
