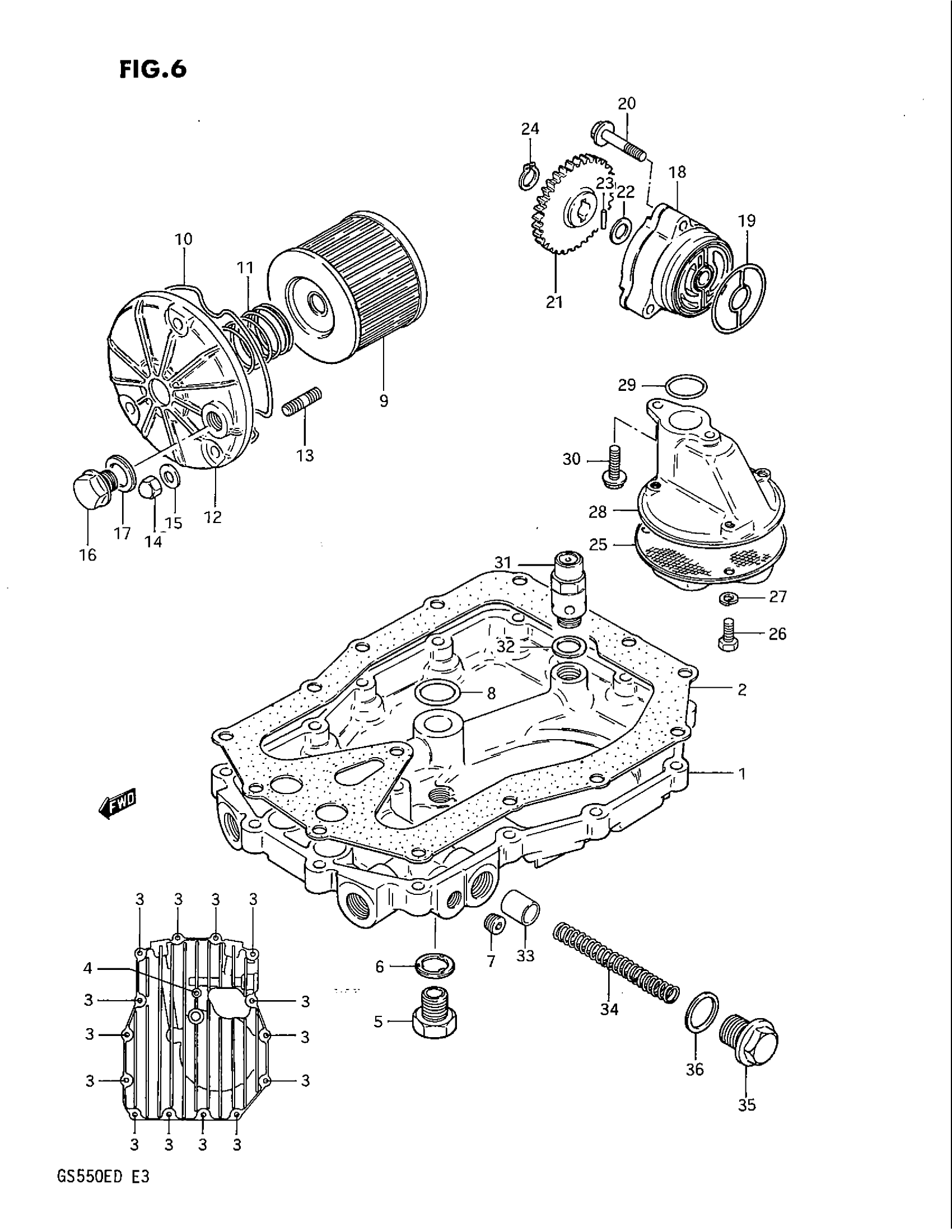

Suzuki GS550E (1983) OIL PUMP - OIL FILTER Diagram

PAN, OIL

11511-43401

Unavailable

GASKET,OIL PAN( This part replaces 11489-43401.

11489-43401-H17

Unavailable

BOLT This part replaces 01517-06254.

01550-0625A

$1.97

BOLT This part replaces 01517-06354.

01550-0635A

$2.32

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

GASKET

09168-14004

$1.83

NO DESCRIPTION AVAILABLE This part replaces 09246-05001.

09246-04001

Unavailable

O RING (D:3.2,ID:17.8) This part replaces 09280-18008.

09280-18009

$5.83

FILTER, ENGINE OIL

16510-45040

$5.96

O RING

16518-45000

$5.70

SPRING

09440-32004

$2.92

NO DESCRIPTION AVAILABLE This part replaces 16512-33300.

16512-33311

Unavailable

STUD BOLT This part replaces 01421-06208.

01421-0620A

$1.91

NUT This part replaces 08313-11065.

08313-1006A

$1.84

.WASHER This part replaces 08322-21065.

08322-0106B

$2.26

PLUG

09247-14015

$4.45

GASKET

09168-14004

$1.83

PUMP, ENGINE OIL

16400-43400

Unavailable

O RING This part replaces 16491-49201.

16491-31300

$13.90

BOLT

09103-06045

$2.53

GEAR, DRIVEN

16331-43400

Unavailable

WASHER

08221-10185

$2.15

PIN

09261-04009

$1.56

CIRCLIP

08331-31109

$1.78

STRAINER, OIL This part replaces 16520-09300.

16520-09301

$15.42

BOLT This part replaces 01107-06128.

01500-06127

$1.97

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

PROTECTOR, STRAINER

16525-09301

Unavailable

O RING (D:3.2,ID:17.8) This part replaces 09280-18008.

09280-18009

$5.83

BOLT This part replaces 01517-06208.

01550-06207

$2.30

VALVE ASSY, OIL RELIEF This part replaces 16440-15500.

16440-11D00

$59.07

WASHER

08212-14181

Unavailable

PLUNGER, OIL CONTROL This part replaces 16442-34300.

16442-34301

Unavailable

SPRING

09440-10011

Unavailable

PLUG

09247-16004

Unavailable

GASKET

09280-17002

$5.11
