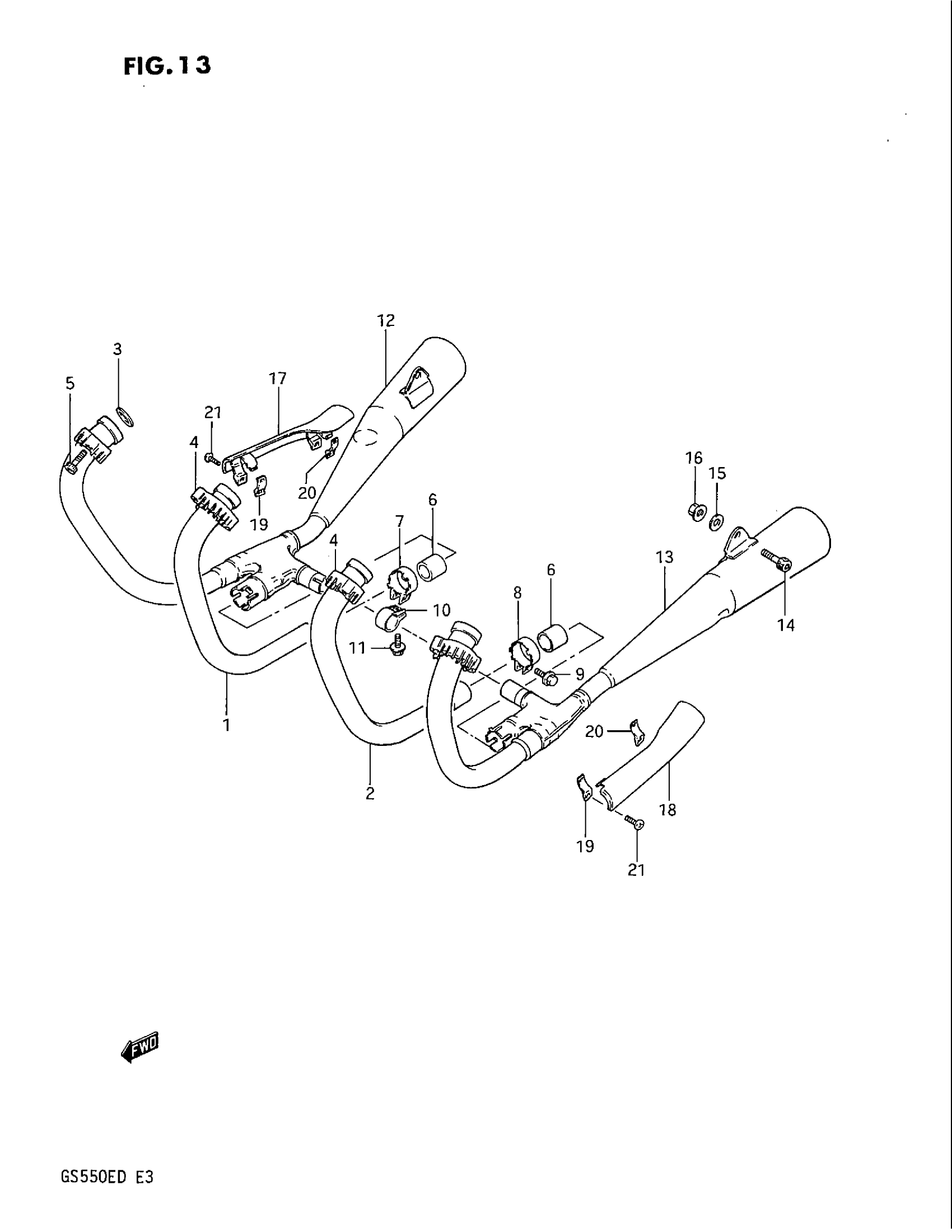

Suzuki GS550E (1983) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST CENTER RH

14170-43401

Unavailable

2

PIPE, EXHAUST CENTER LH

14180-43401

Unavailable

3

.GASKET,EXHAUST This part replaces 14181-05020.

14181-18C00

$7.22

4

CLAMP This part replaces 14182-31301.

14182-31302

Unavailable

5

BOLT,8X38 This part replaces 09106-08036.

09106-08036-XC0

$2.92

6

CONNECTOR,MUFLR This part replaces 14771-47020.

14771-47020-H17

Unavailable

7

CLAMP, RH This part replaces 14459-34300.

14459-34200

Unavailable

8

CLAMP, LH This part replaces 14469-34300.

14469-34200

Unavailable

9

BOLT This part replaces 01517-08255.

01550-0825A

$2.32

10

CLAMP

14772-43400

Unavailable

11

BOLT This part replaces 01517-06205.

01550-0620A

$1.97

12

MUFFLER, RH

14305-43421-H01

Unavailable

13

MUFFLER, LH

14306-43421-H01

Unavailable

14

BOLT

09106-10015

Unavailable

15

WASHER

09160-10005

$1.87

16

NUT This part replaces 09159-10014.

09159-10046-XC0

$2.03

17

COVER, MUFFLER RH This part replaces 14780-43401.

14780-43402

Unavailable

18

COVER, MUFFLER LH This part replaces 14790-43401.

14790-43402

Unavailable

19

CLAMP This part replaces 14785-31301.

14785-31310

Unavailable

20

CLAMP This part replaces 14785-43400.

14785-15500

Unavailable

21

SCREW This part replaces 02112-05165.

02112-05164

$2.63
