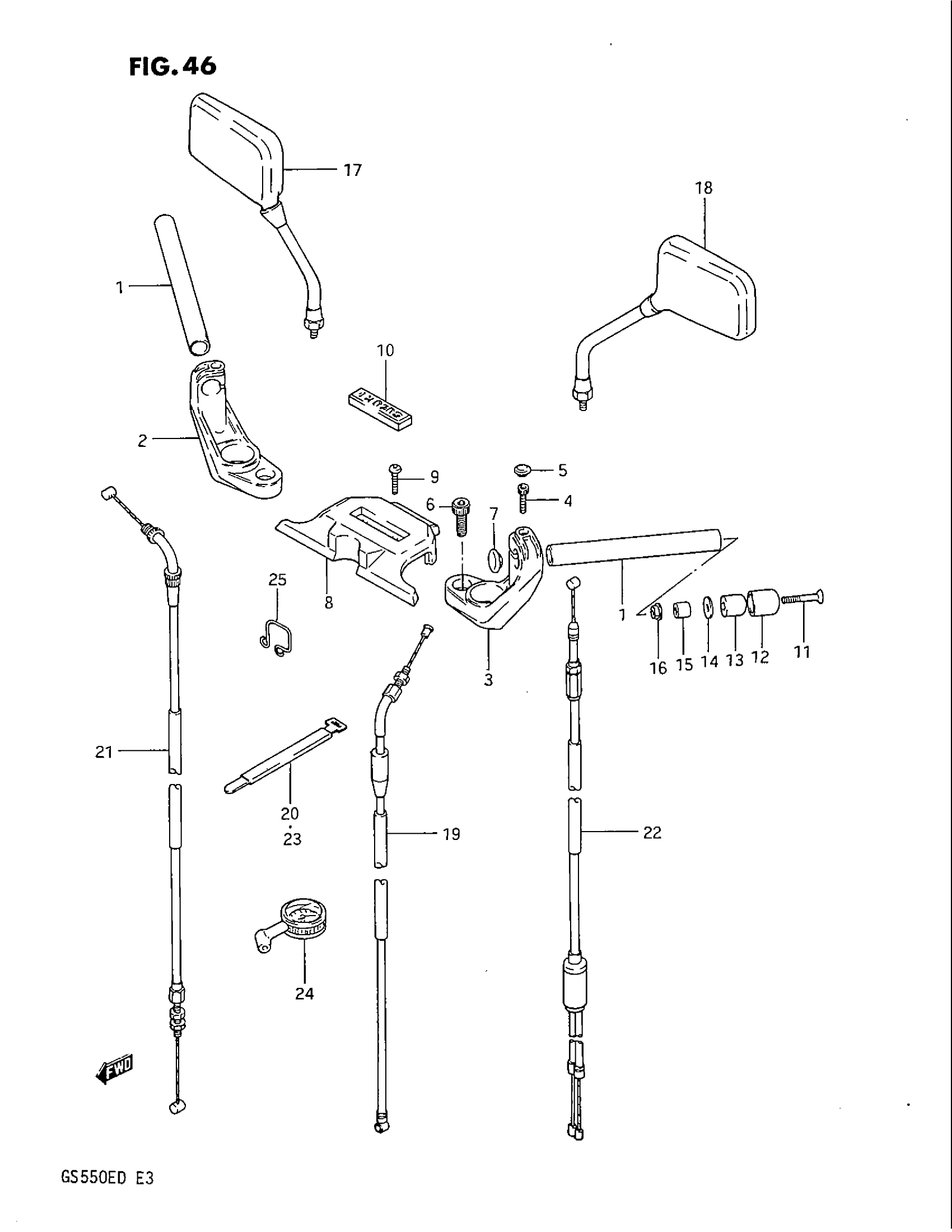

Suzuki GS550E (1983) HANDLE BAR (GS550ESD) Diagram

#

Description
Price

1

HANDLEBAR

56111-31330

Unavailable

2

HOLDER, RH (FLAT) This part replaces 56211-43421.

56211-43422

Unavailable

3

HOLDER, LH (FLAT) This part replaces 56221-43421.

56221-43422

Unavailable

4

BOLT This part replaces 07112-08355.

07130-0835B

$4.60

5

CAP, BOLT HANDLE BAR

09250-06004

$1.49

6

BOLT This part replaces 09106-10011.

07130-1030B

$5.37

7

CAP This part replaces 57215-43401.

57215-33400

$5.50

8

PAD, HANDLE

56170-43400

Unavailable

9

SCREW This part replaces 02112-05358.

02112-05357

$1.49

10

EMBLEM

68281-43400

Unavailable

11

SCREW This part replaces 02132-06555.

02122-0655B

$2.83

12

CAP, BALANCER

56274-04700

Unavailable

13

BALANCER

56271-49410

$30.95

14

SPACER This part replaces 56275-34400.

56275-34401

$4.02

15

EXPANDER

56272-04700

$5.40

16

NUT

09159-06024

$2.11

17

MIRROR ASSY,REA This part replaces 56500-43400.

56500-01D02

$123.17

18

MIRROR ASSY,REA This part replaces 56600-43400.

56600-01D02

$125.48

19

CABLE, CLUTCH (FLAT)

58200-43400

Unavailable

20

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

21

CABLE, THROTTLE (FLAT) This part replaces 58300-43400.

58300-43402

Unavailable

22

NO DESCRIPTION AVAILABLE This part replaces 58410-43400.

58410-43X00

Unavailable

23

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

24

GAUGE, FRONT FORK AIR

96200-41330

Unavailable

25

GUIDE, CABLE

58621-31310

Unavailable
