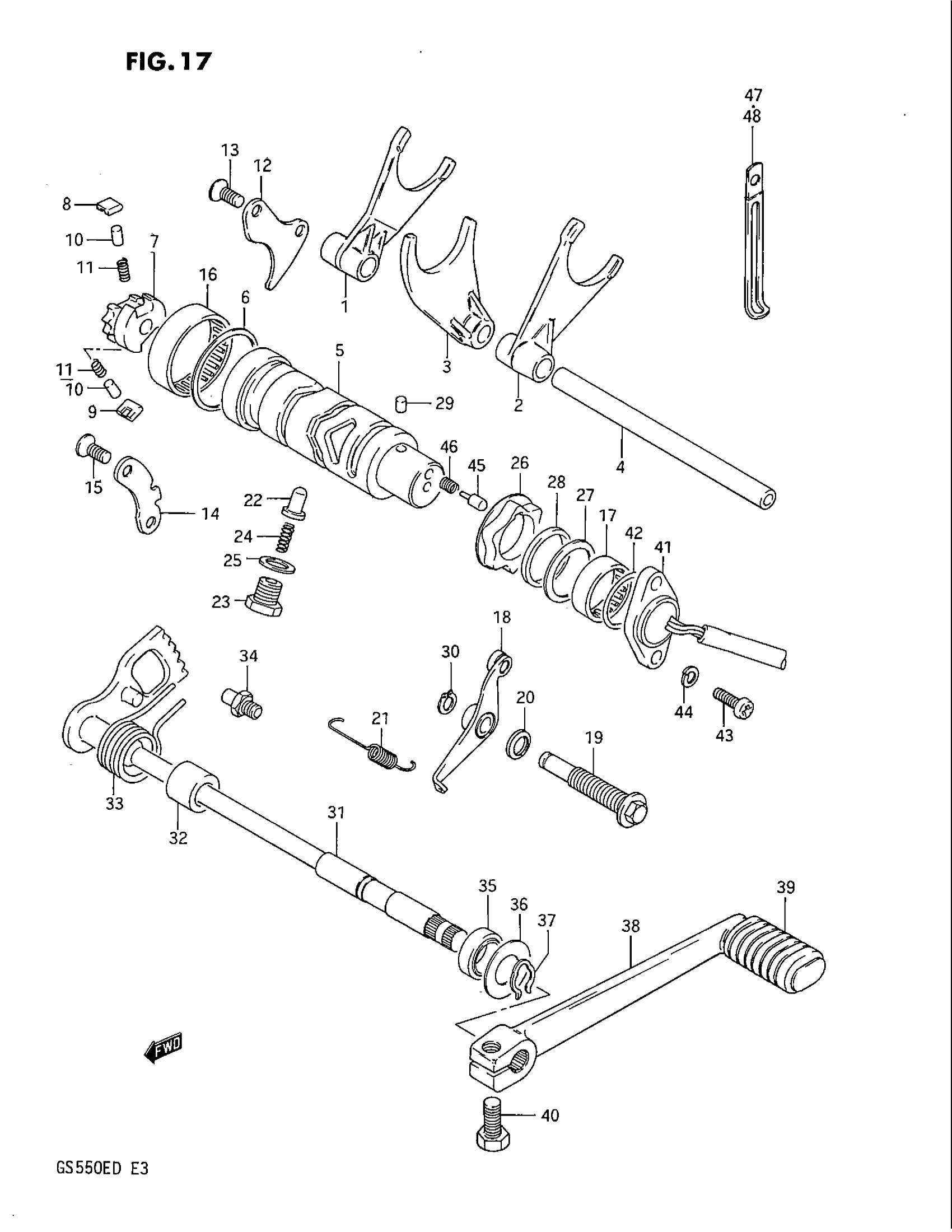

Suzuki GS550E (1983) GEAR SHIFTING Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 25211-43400.

25211-43401

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 25221-43400.

25221-43401

Unavailable

3

NO DESCRIPTION AVAILABLE This part replaces 25231-43400.

25231-43401

Unavailable

4

NO DESCRIPTION AVAILABLE This part replaces 25411-15501.

25411-15510

Unavailable

5

CAM, GEAR SHIFTING

25310-43400

Unavailable

6

WASHER

09160-40006

Unavailable

7

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-11000.

25322-31310

$26.93

8

PAWL, GEAR SHIFT NO.1 This part replaces 25323-11000.

25323-34201

$7.22

9

PAWL, GEAR SHIFT NO.2 This part replaces 25324-11000.

25324-34201

$7.22

10

PIN

09261-05003

$1.54

11

SPRING

09440-04003

$1.54

12

NO DESCRIPTION AVAILABLE This part replaces 25331-15500.

25331-15501

Unavailable

13

SCREW This part replaces 02122-06128.

02122-06127

$1.84

14

GUIDE, CAM

25341-43400

Unavailable

15

SCREW This part replaces 02122-06128.

02122-06127

$1.84

16

BEARING, NO.1

09263-43001

$33.18

17

BEARING, NO.2

09263-25018

$21.39

18

STOPPER, CAM

25350-43400

Unavailable

19

SHAFT

25353-43400

Unavailable

20

GASKET

09168-10002

$2.13

21

SPRING

09443-08032

Unavailable

22

STOPPER, GEAR SHIFT CAM NO.2 This part replaces 25351-31300.

25351-30010

$11.95

23

HOLDER, STOPPER

25354-30000

$9.17

24

SPRING

09440-06014

Unavailable

25

GASKET

09168-14004

$1.83

26

PLATE, STOPPER

25381-04700

Unavailable

27

WASHER

08211-25321

$3.27

28

WASHER

08212-25305

Unavailable

29

PIN This part replaces 06211-04063.

04221-04069

$2.12

30

CIRCLIP This part replaces 08331-31086.

08331-31089

$1.78

31

NO DESCRIPTION AVAILABLE This part replaces 25510-43400.

25510-434V0

Unavailable

32

SPACER

09180-12068

$3.16

33

SPRING

09444-26013

$3.10

34

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.48

35

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

36

WASHER (12.5X26X1.6) This part replaces 09160-12020.

09160-12089

$1.97

37

CIRCLIP This part replaces 09384-12001.

08331-3112A

$1.78

38

LEVER ASSY, GEAR SHIFTING | Includes Item(s) 39 This part replaces 25600-43402.

25600-45130

Unavailable

39

COVER

25652-49300

$5.07

40

BOLT, REAR This part replaces 01107-08208.

01500-08207

$2.53

41

BODY, GEAR SHIFTING SWITCH

37720-43400

Unavailable

42

O RING (D:2.4,ID:26.2) This part replaces 09280-26003.

09280-26005

$2.30

43

SCREW This part replaces 02112-05128.

02112-05127

$1.97

44

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

45

CONTACT

09209-05011

$2.20

46

SPRING

09440-04010

$1.54

47

CLAMP This part replaces 09404-06412.

09404-06039

$1.74

48

CLAMP(L:80) This part replaces 09404-06415.

09404-06036

$1.74
