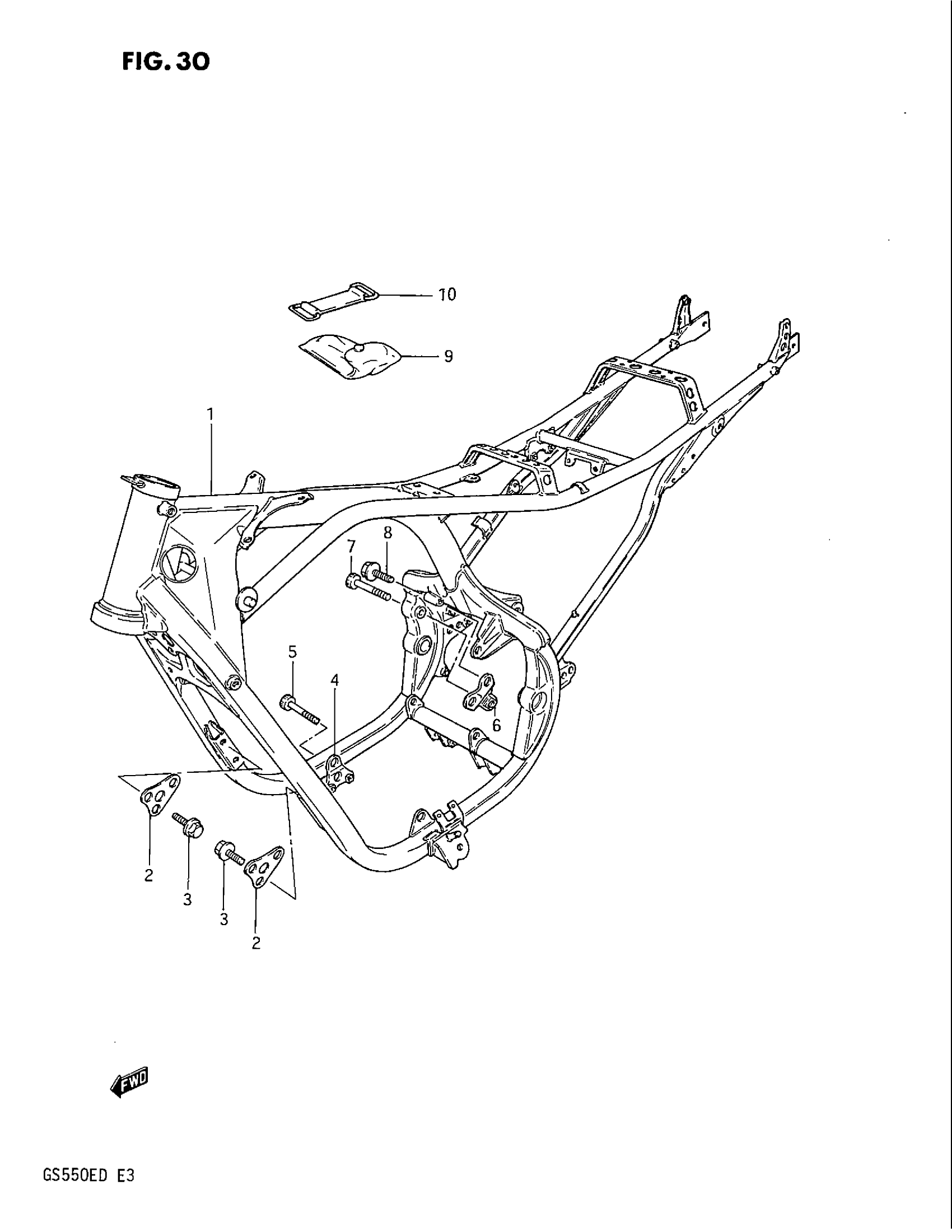

Suzuki GS550E (1983) FRAME Diagram

#

Description

Price

1

NO DESCRIPTION AVAILABLE This part replaces 41100-43400-737.

41100-43402-13L

Unavailable

2

PLATE, NO.1 (BLACK) This part replaces 41991-43400-291.

41991-43401-291

Unavailable

3

BOLT M8X16 This part replaces 01517-08168.

01550-08167

$2.85

4

PLATE, NO.2 RH (BLACK)

41992-43400-291

Unavailable

5

BOLT This part replaces 09106-08021.

07130-08407

$3.14

6

PLATE, NO.4 RH (BLACK)

41993-43400-291

Unavailable

7

BOLT This part replaces 09106-08021.

07130-08407

$3.14

8

BOLT M8X16 This part replaces 01517-08168.

01550-08167

$2.85

9

TOOL ASSY This part replaces 09800-00270.

09800-21068

Unavailable

10

BAND, TOOL

09462-00067

$5.11
