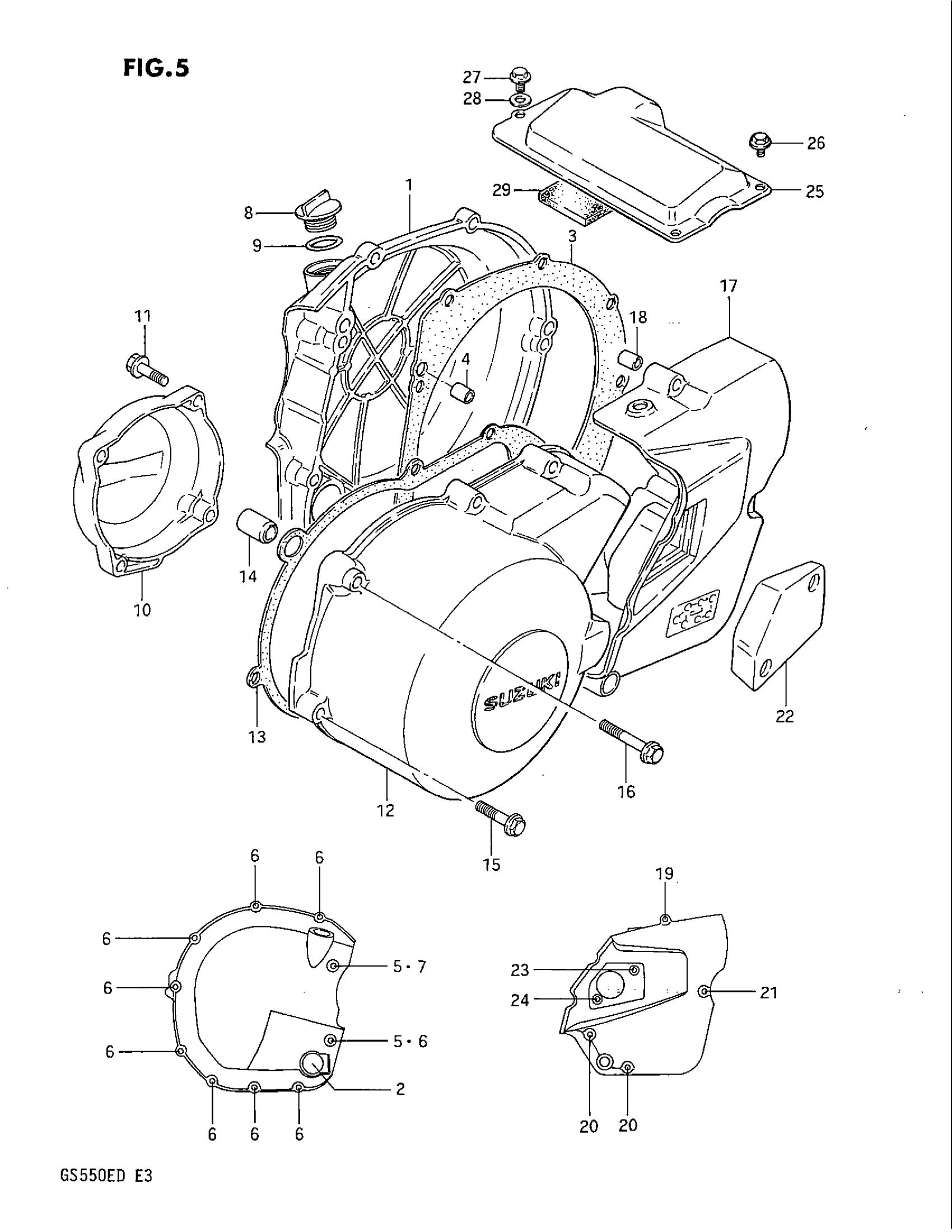

Suzuki GS550E (1983) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | Includes Item(s) 2

11340-43401

Unavailable

2

LENS, OIL LEVEL

11971-33210

$18.20

3

GASKET,CLUTCH C This part replaces 11482-43401.

11482-43401-H17

Unavailable

4

PIN

04211-09129

$1.65

5

GASKET (5.8X13X1.2) This part replaces 09168-06015.

09168-06023

$2.35

6

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06254.

01547-0625B

$2.45

7

BOLT, WATER PUMP This part replaces 01547-06354.

01547-0635B

$2.73

8

.PLUG This part replaces 09259-20008.

09259-20008-XC0

$7.50

9

O RING

09280-17003

$1.65

10

COVER, CONTACT BREAKER

11381-43400

Unavailable

11

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06254.

01547-0625B

$2.45

12

COVER, GENERATOR

11351-43400

Unavailable

13

GASKET,MAGNETO This part replaces 11483-43400.

11483-43400-H17

Unavailable

14

PIN (11X20) This part replaces 09206-11005.

09206-11017

$6.30

15

BOLT This part replaces 01547-06304.

01547-06307

$2.03

16

BOLT This part replaces 01547-06454.

01547-0645B

$2.73

17

COVER, ENGINE SPROCKET

11360-43400

Unavailable

18

PIN

04211-09129

$1.65

19

BOLT This part replaces 01547-06404.

01547-0640B

$2.75

20

BOLT This part replaces 01547-06555.

01547-0655B

$2.75

21

BOLT This part replaces 01547-06805.

01547-0680B

$3.18

22

COVER, CLUTCH RELEASE

11387-43400

Unavailable

23

SCREW This part replaces 02132-05125.

02122-0512A

$1.86

24

SCREW This part replaces 02132-05205.

02122-0520A

$2.27

25

COVER, STARTER MOTOR

11382-43401

Unavailable

26

BOLT, COVER This part replaces 01547-05084.

01547-0508B

$2.97

27

BOLT This part replaces 01547-05105.

01547-0510B

$2.97

28

WASHER (5.5X16X1.2) This part replaces 09160-05031.

09160-05037

$1.49

29

DAMPER

11362-34200

Unavailable
