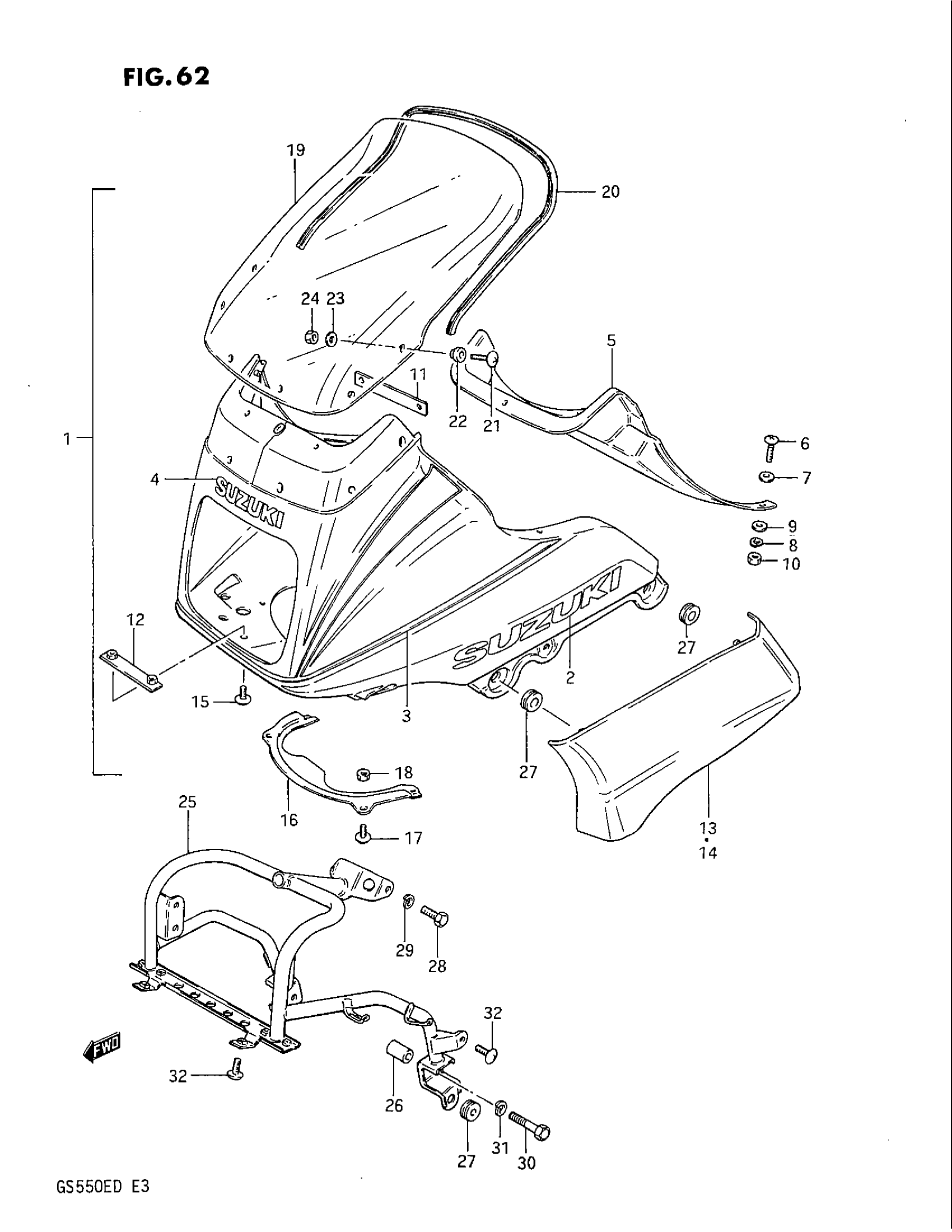

Suzuki GS550E (1983) COWLING (GS550ESD) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | WHITE/BLUE; Includes Item(s) 2 - 20 This part replaces 94400-43820-88D.

94400-43860-88D

Unavailable

2

EMBLEM

68112-43400-019

Unavailable

3

TAPE SET

68190-43400-93L

Unavailable

4

EMBLEM, FRONT

68271-43400-064

Unavailable

5

PANEL, UPPER

94422-43400

Unavailable

6

SCREW This part replaces 02142-05165.

02142-0516A

$1.49

7

WASHER, FRONT This part replaces 08322-21055.

08322-0105A

$1.84

8

LOCK WASHER This part replaces 08321-21055.

08321-0105A

$1.84

9

WASHER, FRONT This part replaces 08322-21055.

08322-0105A

$1.84

10

NUT This part replaces 08310-11058.

08310-00057

$1.84

11

BRACE, UPPER

94416-43400

Unavailable

12

BRACE

94420-43400

Unavailable

13

SCREW This part replaces 02142-05105.

02142-0510B

$1.78

14

NO DESCRIPTION AVAILABLE This part replaces 94445-43400.

94480-43410

Unavailable

15

SCREW This part replaces 02142-05128.

02142-05127

$1.97

16

NUT This part replaces 08316-26058.

08316-2005A

$2.19

17

WINDOW This part replaces 94611-43410.

94611-43431

Unavailable

18

MOLDING This part replaces 94631-43400.

94631-44110

$36.85

19

SCREW This part replaces 02142-05165.

02142-0516A

$1.49

20

CUSHION(5.5X11X This part replaces 09320-05008.

09320-05021

$2.54

21

COVER, RH

94431-43400-14L

Unavailable

22

COVER, LH

94441-43400-14L

Unavailable

23

BRACE

94510-43400

Unavailable

24

SPACER (8.2X12.5X23.5) This part replaces 09180-08057.

09180-08227

$2.06

25

CUSHION

09320-08018

$3.04

26

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

27

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

28

BOLT This part replaces 01107-08458.

01500-08453

$2.50

29

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

30

SCREW This part replaces 02142-06125.

02142-0612A

$1.49
