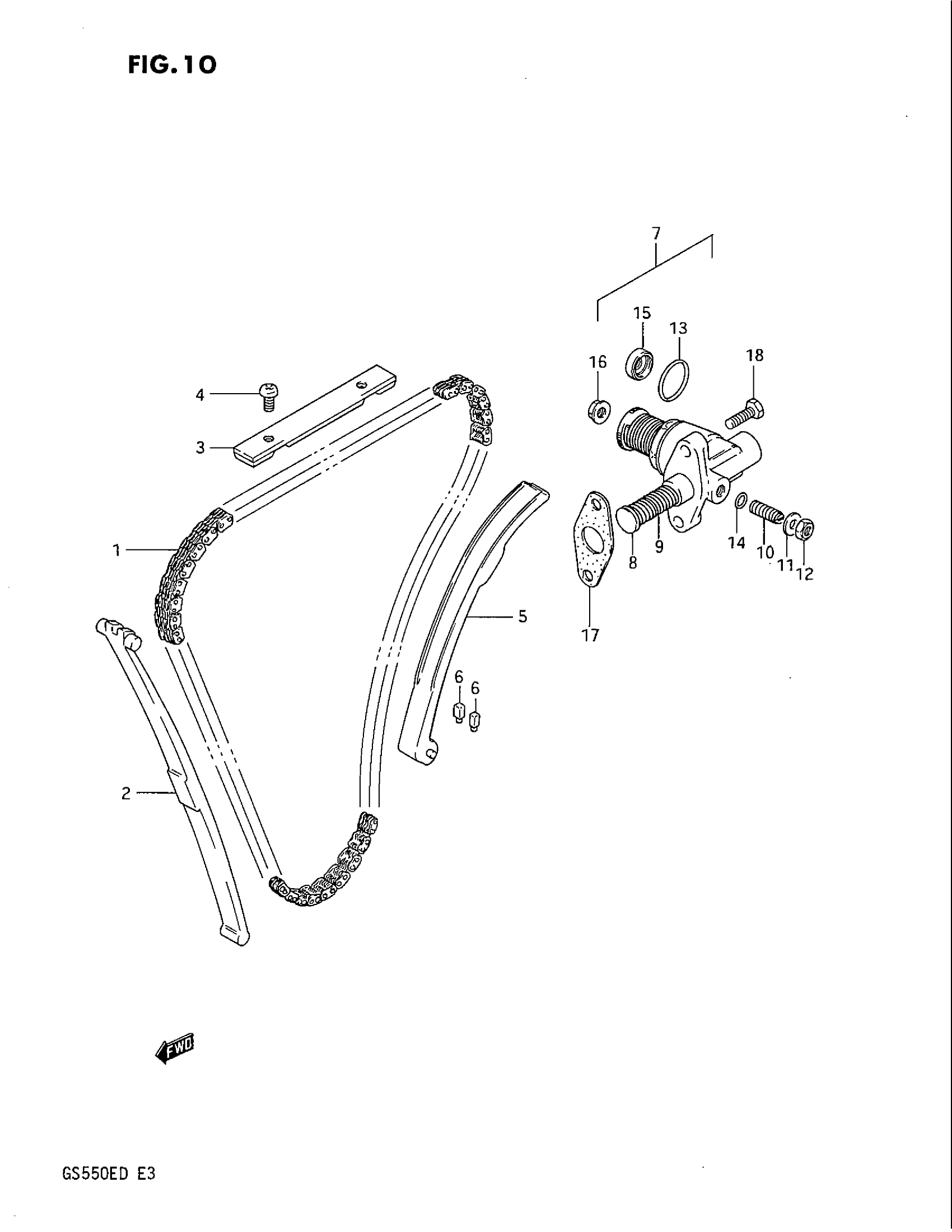

Suzuki GS550E (1983) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAM SHAFT DRIVE

12760-43400

Unavailable

2

GUIDE, CAM CHAIN

12771-43400

Unavailable

3

GUIDE, CAM CHAIN

12782-33200

Unavailable

4

SCREW This part replaces 02112-05108.

02112-05107

$1.49

5

TENSIONER, CAM CHAIN

12810-43400

Unavailable

6

CUSHION

12814-44101

$6.60

7

ADJUSTER ASSY, TENSIONER | Includes Item(s) 8 - 16

12830-33302

Unavailable

8

PUSH ROD

12833-33201

Unavailable

9

SPRING

09440-12029

Unavailable

10

SCREW This part replaces 12838-45010.

12838-45001

$8.42

11

WASHER This part replaces 08322-11085.

08322-0108A

$1.92

12

NUT This part replaces 08310-11085.

08310-0008A

$1.84

13

O RING This part replaces 09280-21001.

09280-21013

$2.28

14

.O RING (D:1.9,ID:5.7) This part replaces 09280-06003.

09280-06005

$1.49

15

OIL SEAL This part replaces 09284-10003.

09284-10006

$3.42

16

NUT This part replaces 08316-16065.

08316-1006B

$2.50

17

GKT,TENSIONER A This part replaces 12837-47000.

12837-47010

$4.22

18

BOLT, STARTING MOTOR This part replaces 09128-06022.

09103-06212

$2.47
