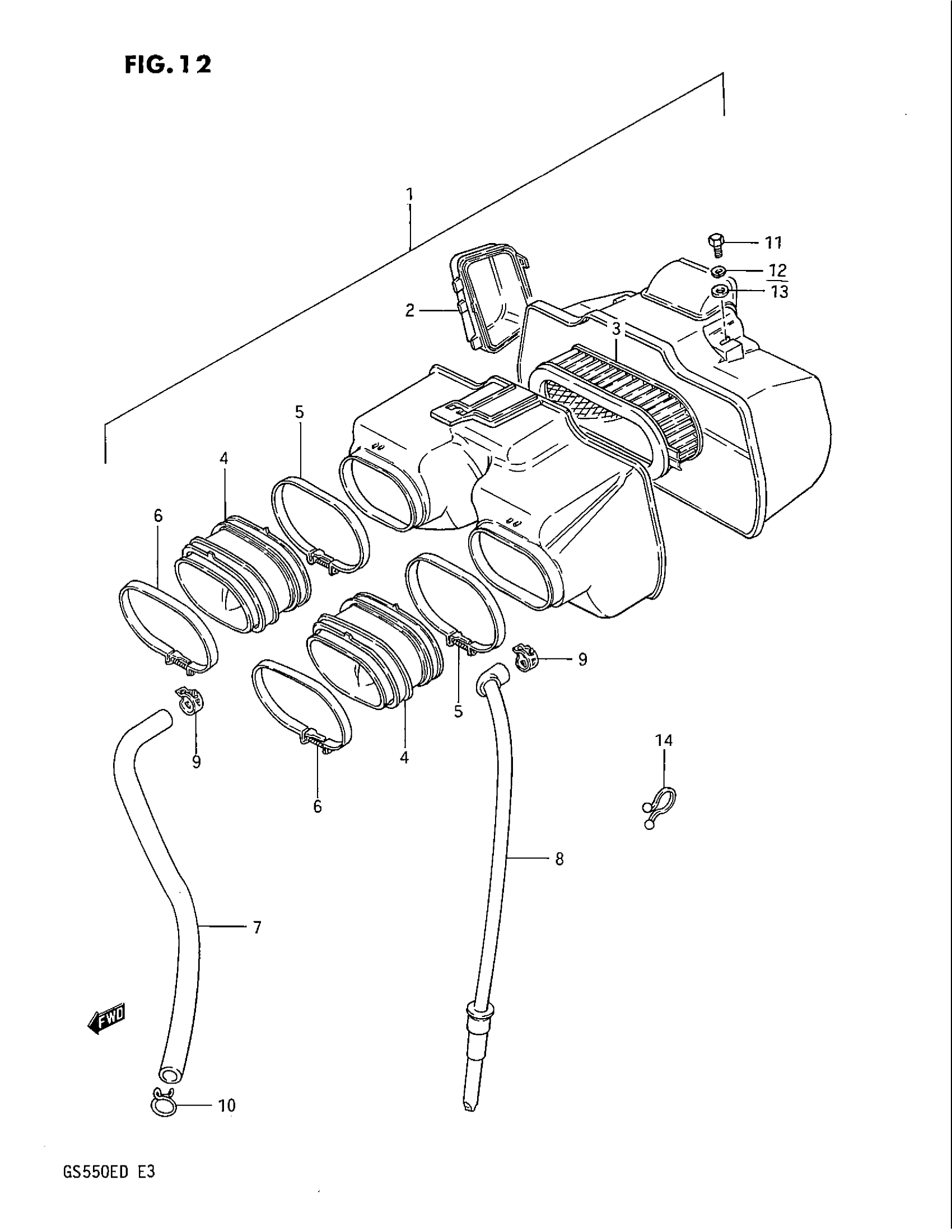

Suzuki GS550E (1983) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 10 This part replaces 13700-43411.

13700-43413

Unavailable

2

CAP

13740-43400

Unavailable

3

FILTER

13780-43400

Unavailable

4

TUBE, OUTLET This part replaces 13881-43401.

13881-43402

Unavailable

5

CLAMP, CLEANER SIDE This part replaces 13827-43400.

13827-43401

Unavailable

6

CLAMP, CARBURETOR SIDE This part replaces 13826-43400.

13826-43401

Unavailable

7

HOSE, BREATHER

13853-43400

Unavailable

8

TUBE,DRAIN This part replaces 13870-43500.

13870-21459

$23.68

9

CLIP This part replaces 13824-43400.

09401-14404

$2.28

10

CLIP This part replaces 13828-00020.

09401-14401

$2.53

11

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

12

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

13

WASHER This part replaces 08322-21068.

08322-01067

$2.13

14

CLAMP, AIR VENT

09408-00021

Unavailable
