1979 Suzuki GS550E Rear Finder Diagram

← All diagrams

Find the part on the Rear Finder diagram for your 1979 Suzuki GS550E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

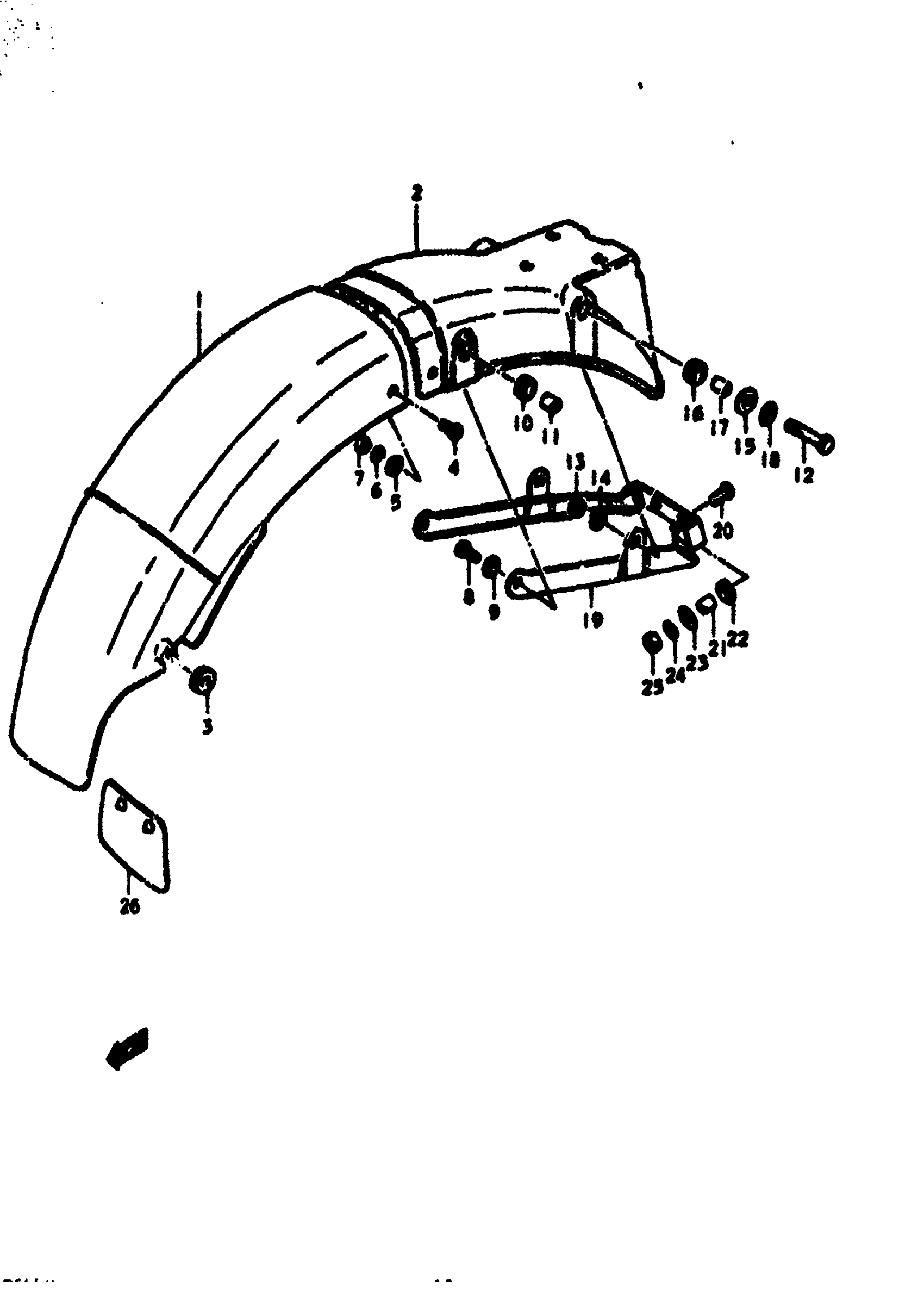

1979 Suzuki GS550E Rear Finder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY, REAR FENDER FRONT | B,C&,EC,N&EN This part replaces 63112-45000.

63112-34500

1
Out of stock

2

BODY, REAR FENDER REAR | B This part replaces 63113-45000-291.

63113-45001

1
Out of stock

2

BODY, REAR FENDER REAR | C&,EC,N&EN

63113-45001

1
Out of stock

3

CUSHION (8X22X7) | B,C&,EC,N&EN This part replaces 09320-08013.

09320-08509

2
Out of stock

4

SCREW | BC&,EC,N&EN This part replaces 02142-05128.

02142-05127

2
Out of stock

5

WASHER (5.5X16X1.2) | B,C&EC,N&EN This part replaces 09160-05017.

09160-05043

2
Out of stock

6

LOCK WASHER | B,C&EC,N&EN This part replaces 08321-21058.

08321-0105A

2
Out of stock

7

NUT | B,C&EC,N&EN This part replaces 08310-11058.

08310-00057

2
Out of stock

8

BOLT | B,C&EC,N&EN This part replaces 01107-06208.

01500-06207

2
Out of stock

10

CUSHION (8.5X20X8) | B,C&EC,N&EN This part replaces 09320-08007.

09320-08510

2
Out of stock

11

SPACER | B,C&EC,N&EN; 6.1x9x7.5

09180-06038

2
Out of stock

12

BOLT | B,C&EC,N&EN

01204-08457

2
Out of stock

13

2

$1.93

In stock

15

WASHER | B,C&EC,N&EN; 8.5x26x1.2

09160-08032

2
Out of stock

16

FENDER SIDE CUS | B,C&EC,N&EN This part replaces 09320-12011.

09320-12090

2
Out of stock

17

SPACER | B,C&EC,N&EN; 8.2x11.8x7.5 This part replaces 09180-08021.

09180-08188

2
Out of stock

18

WASHER | B,C&EC,N&EN This part replaces 08322-21088.

08322-01087

2
Out of stock

19

REINFORCEMENT, REAR FENDER | B,C&EC,N&EN

63120-45000

1
Out of stock

20

SCREW | B,C&EC,N&EN

02142-06207

2
Out of stock

21

SPACER (6.5X9X9) | B,C&EC,N&EN; 6.1x9x9 This part replaces 09180-06011.

09180-06263

2
Out of stock

22

CUSHION (8X22X7) | B,C&EC,N&EN This part replaces 09320-08013.

09320-08509

2
Out of stock

23

WASHER | B,C&EC,N&EN This part replaces 09160-06012.

09160-06054

2
Out of stock

25

.NUT | B,C&EC,N&EN This part replaces 08310-11068.

08310-00067

2
Out of stock

26

MUD GUARD, REAR FENDER | B,C&EC,N&EN

63411-31900

1
Out of stock
← Rear Break Hose (GS550EC
