1979 Suzuki GS550E Front Wheel (GS5508 Diagram

← All diagrams

Find the part on the Front Wheel (GS5508 diagram for your 1979 Suzuki GS550E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

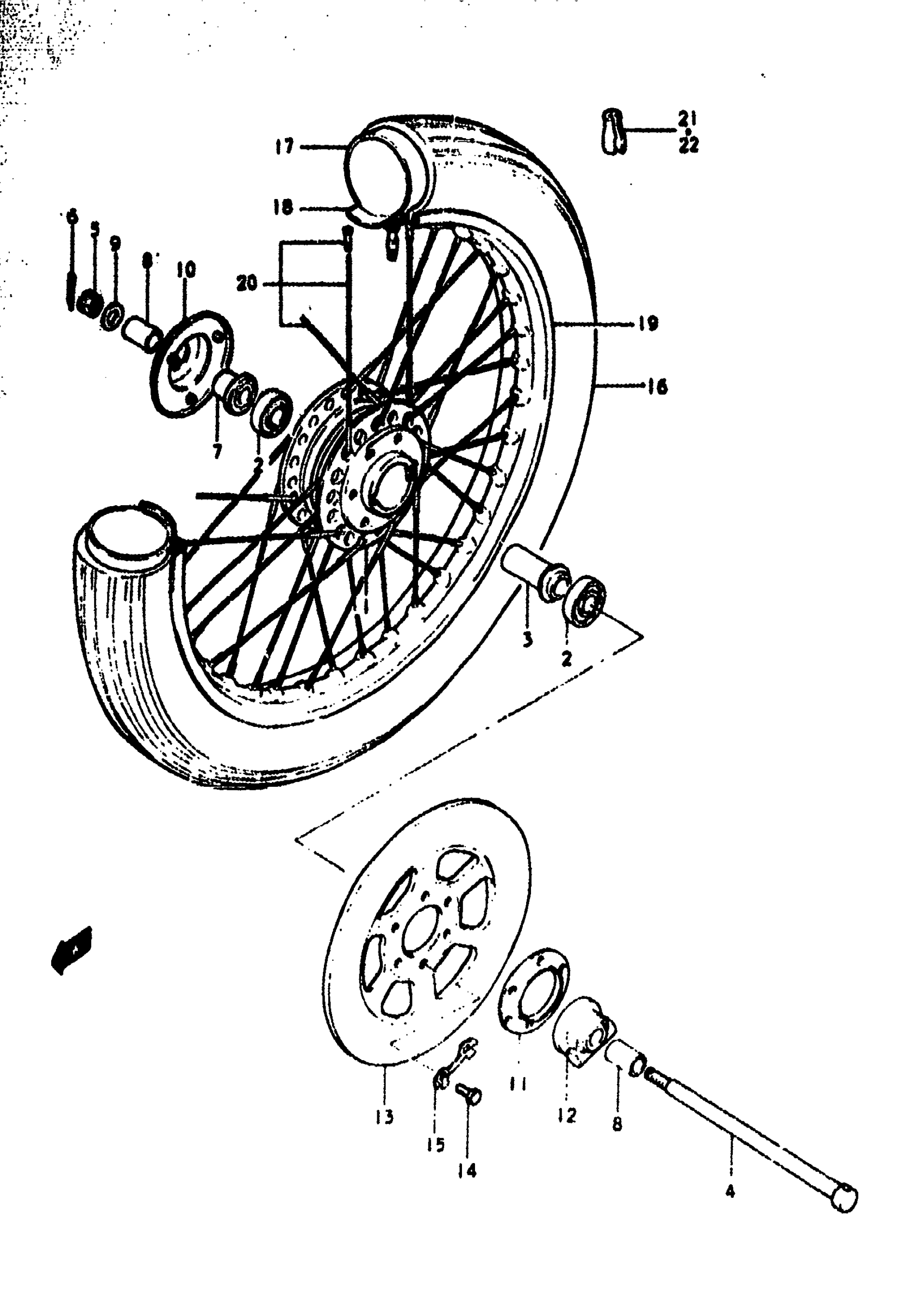

1979 Suzuki GS550E Front Wheel (GS5508 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | B,C This part replaces 54111-47000.

54111-47002

1
Out of stock

1

NO DESCRIPTION AVAILABLE | N This part replaces 54111-47001.

54111-47002

1
Out of stock

2

2

$22.03

In stock

3

SPACER | B,C,N

54730-18400

1

$23.08

In stock

4

AXLE,FRONT | B,C,N This part replaces 54711-33002.

54711-3300V

1
Out of stock

5

1

$2.60

In stock

6

PIN | B,C,N This part replaces 04111-30308.

04111-3030A

1
Out of stock

7

SPACER, AXLE, RH | B,C; OD:23 This part replaces 54740-18401.

54740-18402

1
Out of stock

7

SPACER, BEARING | N; OD:22

54740-18402

1
Out of stock

8

SPACER, AXLE | B,C,N; 15x22x30

09180-15034

2
Out of stock

9

WASHER | B,C,N This part replaces 08322-21128.

08322-01127

1
Out of stock

10

COVER, RH | B,C,N

54871-45000

1
Out of stock

11

COVER, LH | B; W:7

54871-31000

1
Out of stock

11

COVER, LH | C,N; W:11

54871-45010

1
Out of stock

12

BOX ASSY,SPEEDO | B,C,N This part replaces 54600-18401.

54600-18403

1
Out of stock

13

DISK, FRONT BRAKE | B

59210-37001

1
Out of stock

13

DISK, FRONT BRAKE | C,N

59211-47000

1
Out of stock

14

BOLT | B

09100-08094

6
Out of stock

14

BOLT | C,N

09100-08140

6

$2.41

In stock

15

WASHER | B,C,N

09169-08016

3
Out of stock

16

TIRE | B,C,N; 3.25H19

55100-45030

1
Out of stock

19

RIM | B,C,N; 1.85x19

55311-34020

1
Out of stock

20

SPOKE SET | B,C,N This part replaces 55320-34805.

55320-45000

1
Out of stock

21

BALANCER WHEEL (15G) | C,N; (0~3) 20G This part replaces 55411-11000.

55411-26G00

1
Out of stock

22

BALANCER WHEEL (30G) | C,N; (0~3) 30G This part replaces 55412-11000.

55413-41F00

1
Out of stock
