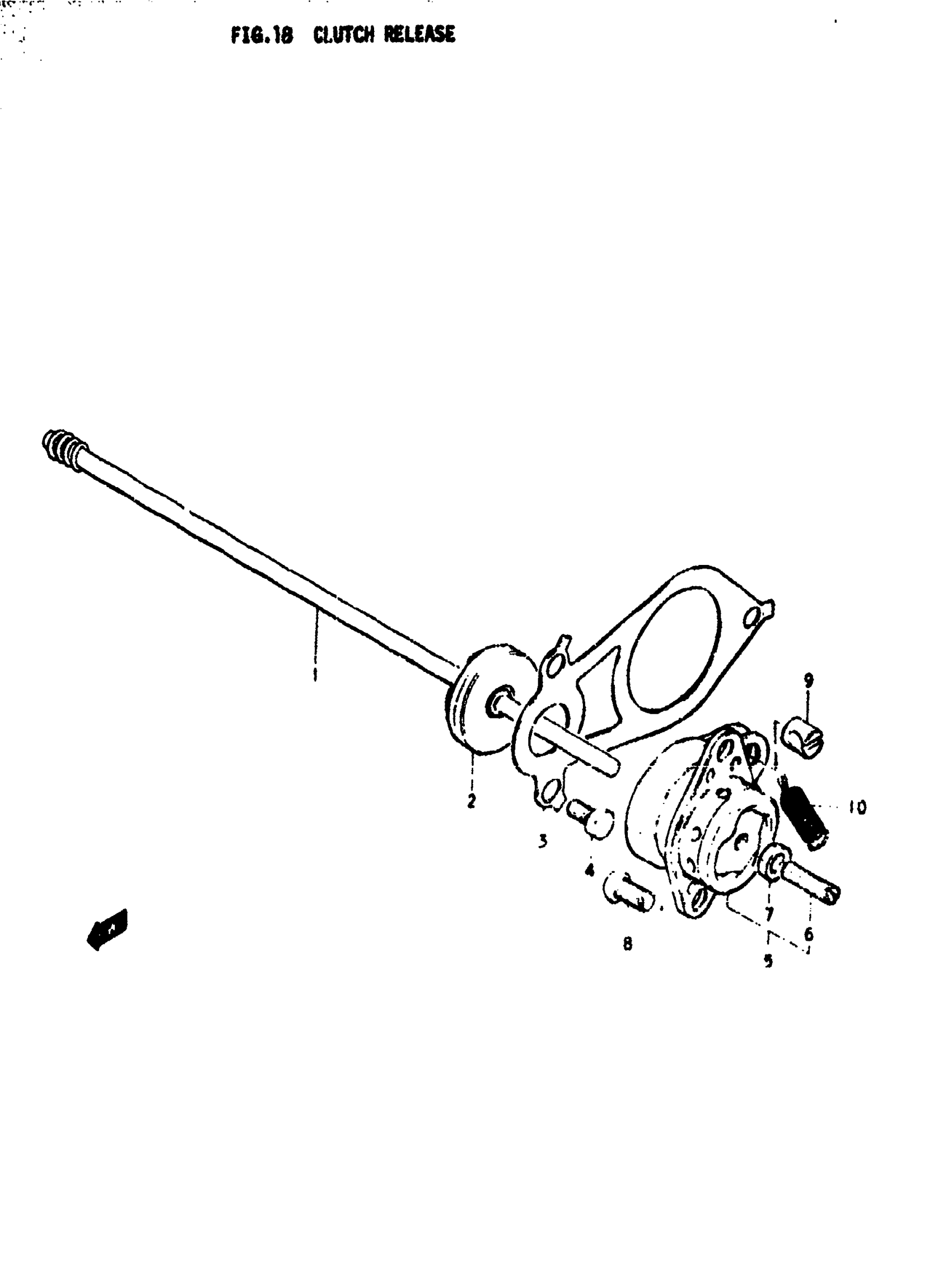

Suzuki GS550E (1979) CLUTCH RELEASE Diagram

#

Description

Price

1

ROD, PUSH | B,C&EC,N&EN; FROM 23100-44001 This part replaces 23110-44002.

23100-44101

Unavailable

2

SEAL, CLUTCH PUSH ROD | B,C&EC,N&EN This part replaces 09283-06001.

09285-06011

$7.67

3

HOLDER, OIL SEAL | B,C&EC,N&EN This part replaces 23117-47000.

23117-44000

Unavailable

4

BOLT | B,C&EC,N&EN This part replaces 01107-06128.

01500-06127

$2.01

5

SCREW ASSY, RELEASE | B,C&EC,N&EN; Includes Item(s) 6 - 7 This part replaces 23200-30001.

23200-30002

Unavailable

6

SCREW | B,C&EC,N&EN This part replaces 09134-06001.

09134-06010

$2.90

7

.NUT | B,C&EC,N&EN This part replaces 08310-22068.

08310-00067

$1.91

8

SCREW | B,C&EC,N&EN This part replaces 02112-06128.

02112-06127

$1.89

9

PIECE, ARM AND | B,C&EC,N&EN

23222-07000

$4.46

10

SPRING | B,C&EC,N&EN

09443-08001

$2.80
