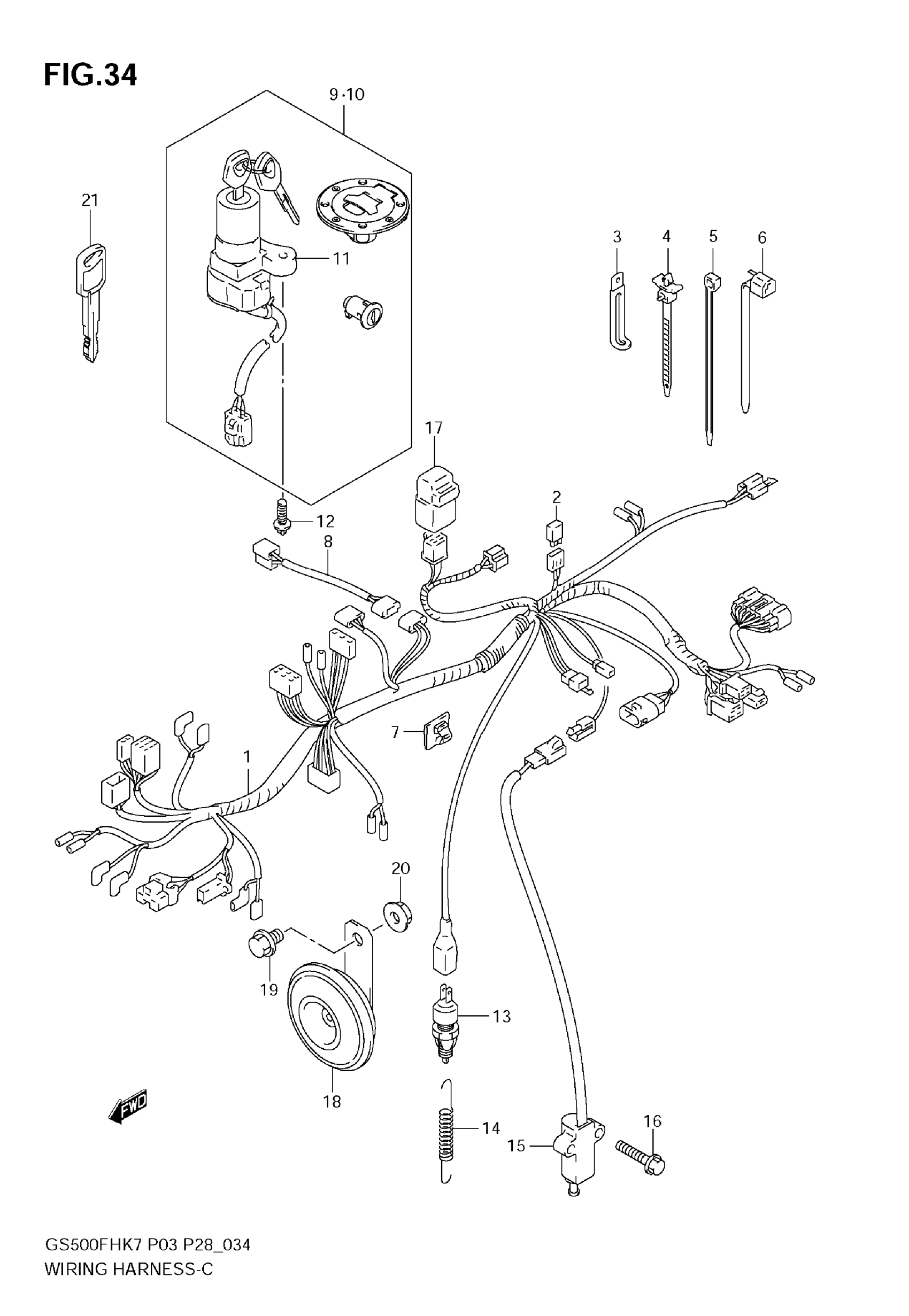

Suzuki GS500F (2009) WIRING HARNESS (GS500F E3, E28, E33, E95) Diagram

#

Description
Price

1

HARNESS, WIRING | Includes Item(s) 2

36610C0BEN0J000

Unavailable

2

DIODE

36611-02E01

Unavailable

3

CLAMP (L:65)

09404-06429

$1.83

3

CLAMP This part replaces 09404-06431.

09404-06039

$1.74

4

CLAMP

09407-07E00

Unavailable

5

CLAMP

D9436-01425

Unavailable

5

NO DESCRIPTION AVAILABLE This part replaces D9448-01885.

D9448-02875

Unavailable

6

CLAMP (L:235)

09407-25401

$4.66

7

CLAMP

09403-06310

Unavailable

8

WIRE, AIR SOLENOID

36852-01D40

Unavailable

9

LOCK SET This part replaces 37000-01870.

37000-01871

$500.07

10

LOCK SET | E33; Includes Item(s) 11

37000-01880

Unavailable

11

LOCK ASSY, STEERING

37100-01D40

$205.08

12

BOLT

09139-06026

$2.50

13

SWITCH ASSY, STOP LAMP

37740-24A00

$18.20

14

SPRING

09443-06042

$3.77

15

SWITCH ASSY,SID This part replaces 37840-26D00.

37840-26X52

$74.31

16

BOLT This part replaces D1557-0630B.

01550-0630B

$2.85

17

RELAY ASSY, SIDE STAND This part replaces 38740-24B00.

38740-24X50

$45.20

18

HORN ASSY

38500-0BE00

Unavailable

19

BOLT

D1557-0812B

Unavailable

20

NUT

D8316-1008B

Unavailable

21

KEY, BLANK | OPT

37146-33E00

$21.21
