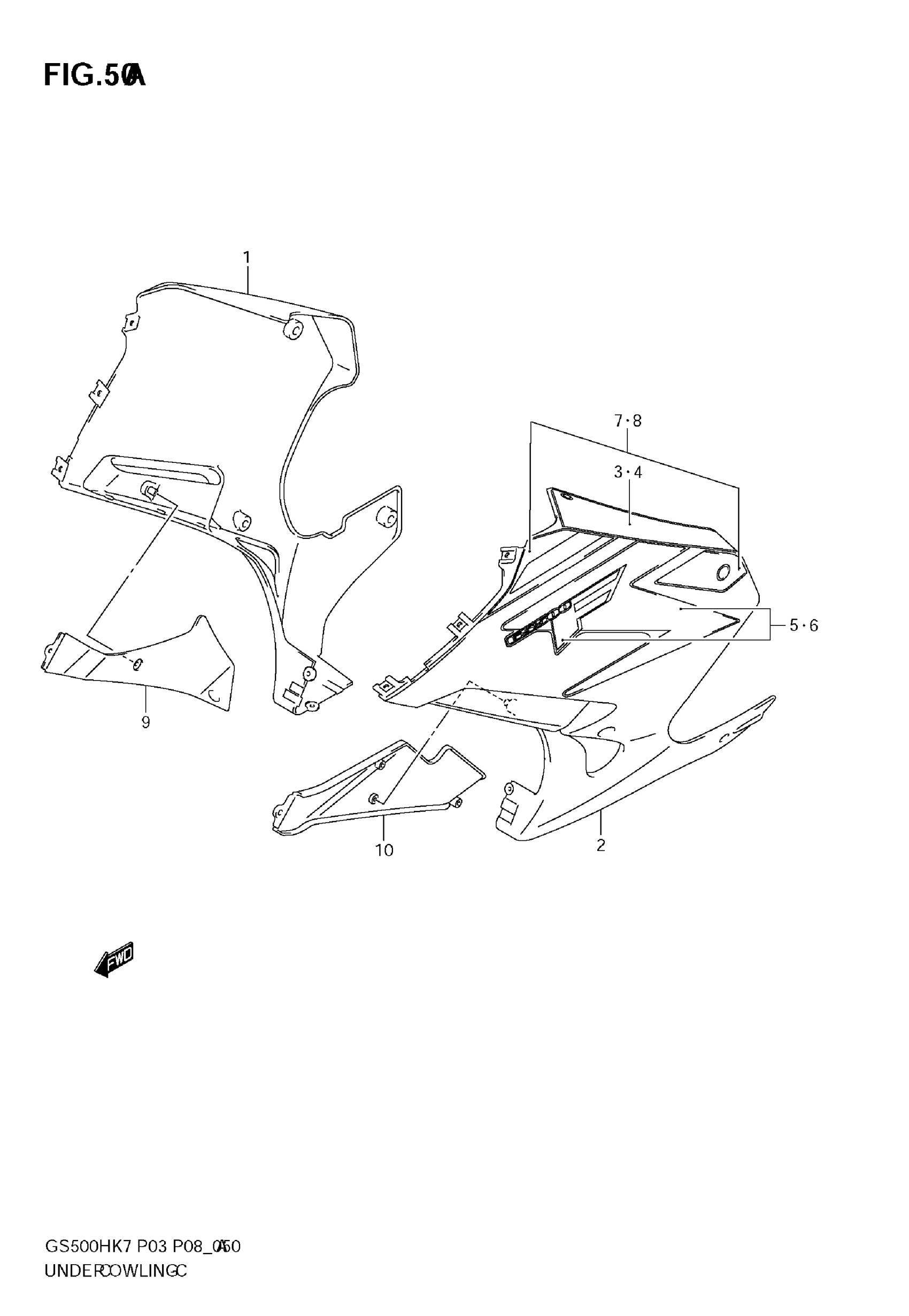

Suzuki GS500F (2009) UNDER COWLING (GS500FK8) Diagram

#

Description
Price

1

COWL, UNDER RH (SILVER) | FOR EPV

94471C0BE10JYD8

Unavailable

1

COWL, UNDER RH (WHITE) | FOR CWH

94471C0BE10JYBD

$405.01

2

COWL, UNDER LH (SILVER) | FOR EPV

94481C0BE10JYD8

$454.77

2

COWL, UNDER LH (WHITE) | FOR CWH

94481C0BE10JYBD

$289.65

3

TAPE, UPPER RH (BLACK)

68185-01DA0-291

Unavailable

4

TAPE, UPPER LH (BLACK)

68195-01DA0-291

Unavailable

5

TAPE, "GS500F" RH | FOR EPV

68135-01DK0-BVB

Unavailable

5

TAPE, "GS500F" RH | FOR CWH

68135-01DK0-D2D

Unavailable

6

TAPE, "GS500F" LH | FOR EPV

68145-01DK0-BVB

Unavailable

6

TAPE, "GS500F" LH | FOR CWH

68145-01DK0-D2D

Unavailable

7

TAPE SET, RH | FOR EPV

68180-01DF0-FKR

Unavailable

7

TAPE SET, RH | FOR CWH

68180-01DF0-FKP

Unavailable

7

TAPE SET, LH | FOR EPV

68190-01DF0-FKR

Unavailable

7

TAPE SET, LH | FOR CWH

68190-01DF0-FKP

Unavailable

8

TAPE, UPPER RH | FOR EPV

38185-01DC0-FKT

Unavailable

8

TAPE, UPPER RH | FOR CWH

38185-01DC0-FKS

Unavailable

8

TAPE, UPPER LH | FOR EPV

38195-01DC0-FKT

Unavailable

8

TAPE, UPPER LH | FOR CWH

38195-01DC0-FKS

Unavailable

9

COWL, INNER RH

94461-01D00-291

Unavailable

10

COWL, INNER LH

94462-01D00-291

Unavailable

11

SHIELD, UNDER COWL HEAT, RH | DRAWING NOT SHOWN

94472-01D00

Unavailable

12

SHIELD, UNDER COWL HEAT, LH | DRAWING NOT SHOWN

94482-01D00

$7.14

13

SHIELD, UNDER HEAT, RH | DRAWING NOT SHOWN

94473-01D00

$2.15

14

SHIELD, UNDDER HEAT, LH | DRAWING NOT SHOWN

94483-01D00

Unavailable
