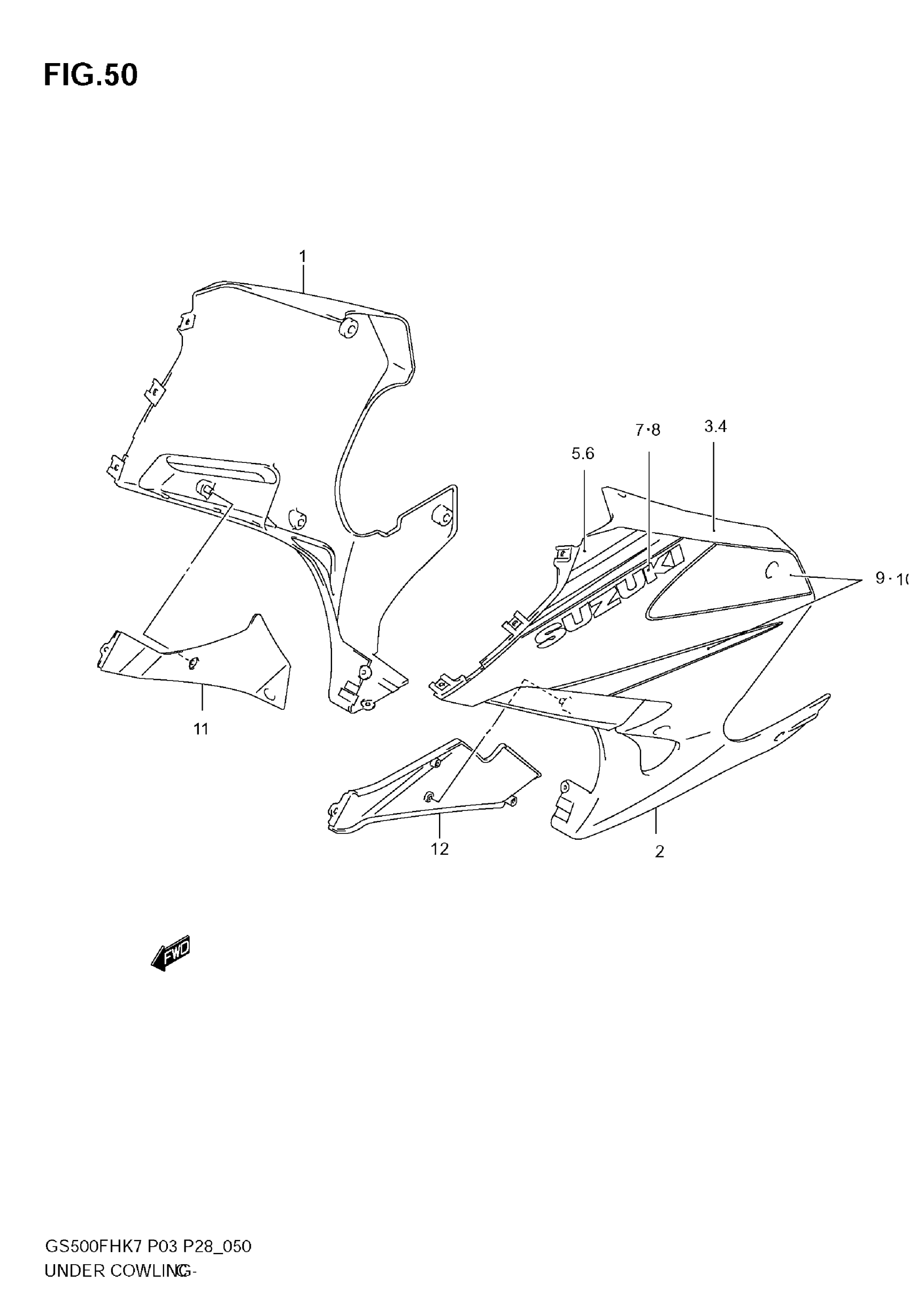

Suzuki GS500F (2009) UNDER COWLING (GS500FK7) Diagram

#

Description
Price

1

COWL, UNDER RH (BLACK) | FOR BPK

94471C0BE10JYAY

Unavailable

1

COWL, UNDER RH (WHITE) | FOR CWH

94471C0BE10JYBD

$405.01

2

COWL, UNDER LH (BLACK) | FOR BPK

94481C0BE10JYAY

Unavailable

2

COWL, UNDER LH (WHITE) | FOR CWH

94481C0BE10JYBD

$289.65

3

TAPE, UPPER RH | FOR CWH

68185-01DA0-291

Unavailable

4

TAPE, UPPER LH | FOR CWH

68195-01DA0-291

Unavailable

5

TAPE, COWL UNDER, R | FOR BPK

68185-01DB0-EBJ

Unavailable

5

TAPE, COWL UNDER, R | FOR CWH

68185-01DB0-EBK

$99.15

6

TAPE, COWL UNDER, L | FOR BPK

68195-01DB0-EBJ

Unavailable

6

TAPE, COWL UNDER, L | FOR CWH

68195-01DB0-EBK

Unavailable

7

EMBLEM, "SUZUKI" (BLACK) | FOR CWH

68181-01DA0-019

Unavailable

8

EMBLEM, "SUZUKI" (GRAY) | FOR BPK

68181-01DA0-YHG

Unavailable

9

TAPE SET, LOWER RH | FOR CWH

68180-01DE0-EBL

Unavailable

9

TAPE SET, LOWER RH | FOR BPK

68180-01DE0-BVB

Unavailable

10

TAPE SET, LOWER LH | FOR CWH

68190-01DE0-EBL

Unavailable

10

TAPE SET, LOWER LH | FOR BPK

68190-01DE0-BVB

Unavailable

11

COWL, INNER RH

94461-01D00-291

Unavailable

12

COWL, INNER LH

94462-01D00-291

Unavailable

13

SHIELD, UNDER COWL HEAT, RH | DRAWING NOT SHOWN

94472-01D00

Unavailable

14

SHIELD, UNDER COWL HEAT, LH | DRAWING NOT SHOWN

94482-01D00

$7.14

15

SHIELD, UNDER HEAT, RH | DRAWING NOT SHOWN

94473-01D00

$2.15

16

SHIELD, UNDDER HEAT, LH | DRAWING NOT SHOWN

94483-01D00

Unavailable
